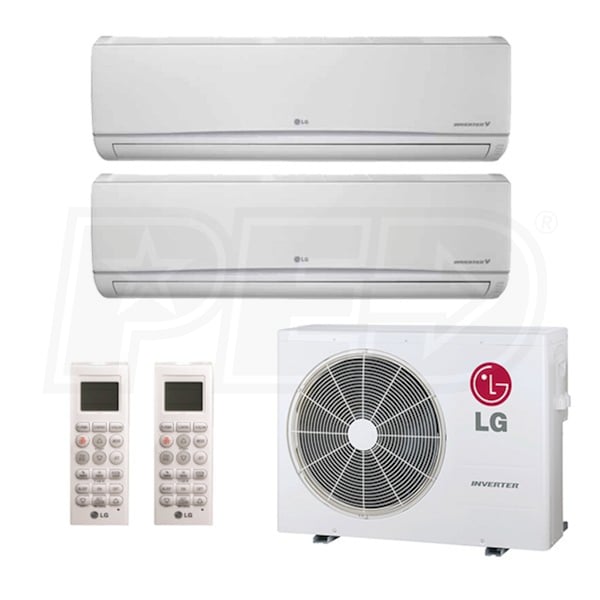

LG Wall Mounted 2-Zone System - 18,000 BTU Outdoor - 7k + 7k Indoor - 22.5 SEER2
Model:
L2H18W07070000-A
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
- Gold Fin Protection
- To ensure the reliability and longevity of the LMU183HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Quiet Design
- Thanks to brushless fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise. The indoor units feature a cross flow fan design that further reduces noise by restricting the surface pressure of airflow.
- Air Flow Options
- These LG units give you two options for automating air flow. In swing mode, a unit will rotate through all four air flow directions. Chaos Wind mode cycles both air flow direction and fan speed to provide a natural circulation pattern.
- Self-Cleaning Coil
- These wall mounted indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- Jet Temperature Control
- Quickly get your zone comfortable with the Jet Heat and Jet Cool modes available with these indoor units. With the press of a button, your system will temporarily adjust the set point and fan speed of a unit to provide rapid zoned heating or cooling.
- Automated Operation
- Auto operation mode continually compares your zones' current and desired temperatures and uses that data to intelligently adjust fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperatures for an hour before the timer function automatically deactivates the units.
- Improved Air Quality
- These mini split indoor units use a dual filtration system to keep your air clean. A washable anti-fungal filter protects against dust and bacteria, while a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.
- Dehumidify
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the units' internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Hot Start
- When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Built in Wi-Fi
- With built in Wi-Fi, you have the ability to control your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
- Recommended line set sizes for indoor unit connectivity:
- LMN078HVT: 1/4" x 3/8" Line Set (Qty 2)
- All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This wall mounted ductless heat pump system pairs a powerful LMU183HV outdoor condenser with two wall mounted indoor units from LG's Standard line. An easy installation process and low sound levels mean that this system provides temperature control that doesn't disrupt your home. The well-rounded indoor units feature several convenient operation modes and each includes a wireless remote controller, making it easy for you to enjoy zoned comfort.
Product Includes
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
L2H18W07070000-A
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
Multi F
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
2
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 7
Outdoor Unit Size
18000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Power Input
1180 Watts
Heating Power Input
1650 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
22.5
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
13.5
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.6
Dimensions
Product Weight
146 Pounds
Shipping Weight
150 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
208131884
LMU183HV
General Information
Type
Outdoor Condenser
Product Line
Multi F
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
25 29/48 Inches
Product Width
34 1/4 Inches
Product Depth
11 25/48 Inches
Product Weight
101 Pounds
Shipping Weight
109.8 Pounds
Certifications
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

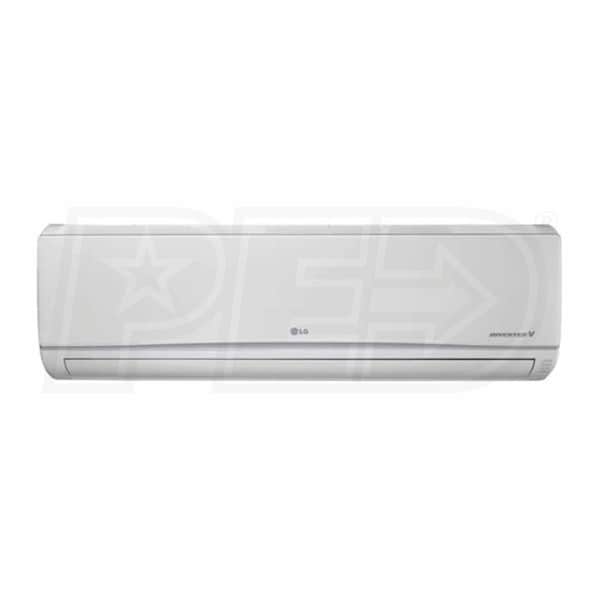

LMN079HVT
General Information
Type
Wall Mounted
Product Line
Multi F
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

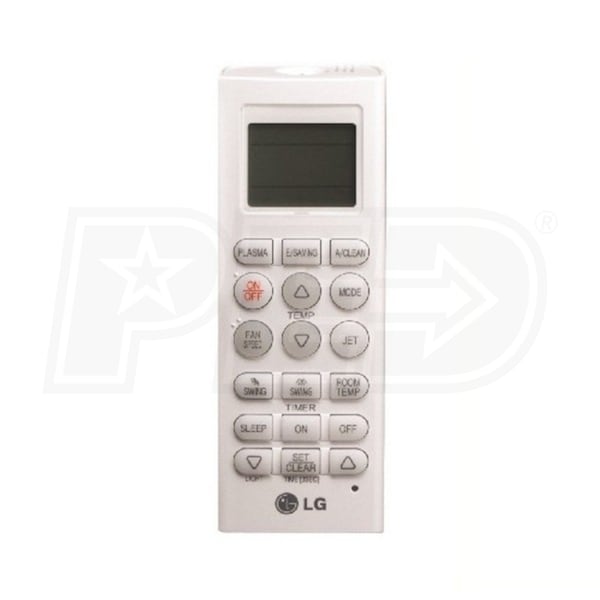

Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
254 CFM
Minimum Air Flow
148 CFM
Minimum Sound Level
26 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
12 1/8 Inches
Product Width
32 15/16 Inches
Product Depth
7 7/16 Inches
Product Weight
23 Pounds
Shipping Weight
26 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
Reviews
(8)
LG L2H18W07070000-A Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
Can the LG system deliver heat down to 5 degrees? If so, are the BTU ratings listed the same at this temp?
Andrew S.
from Massachusetts
July 24, 2016
