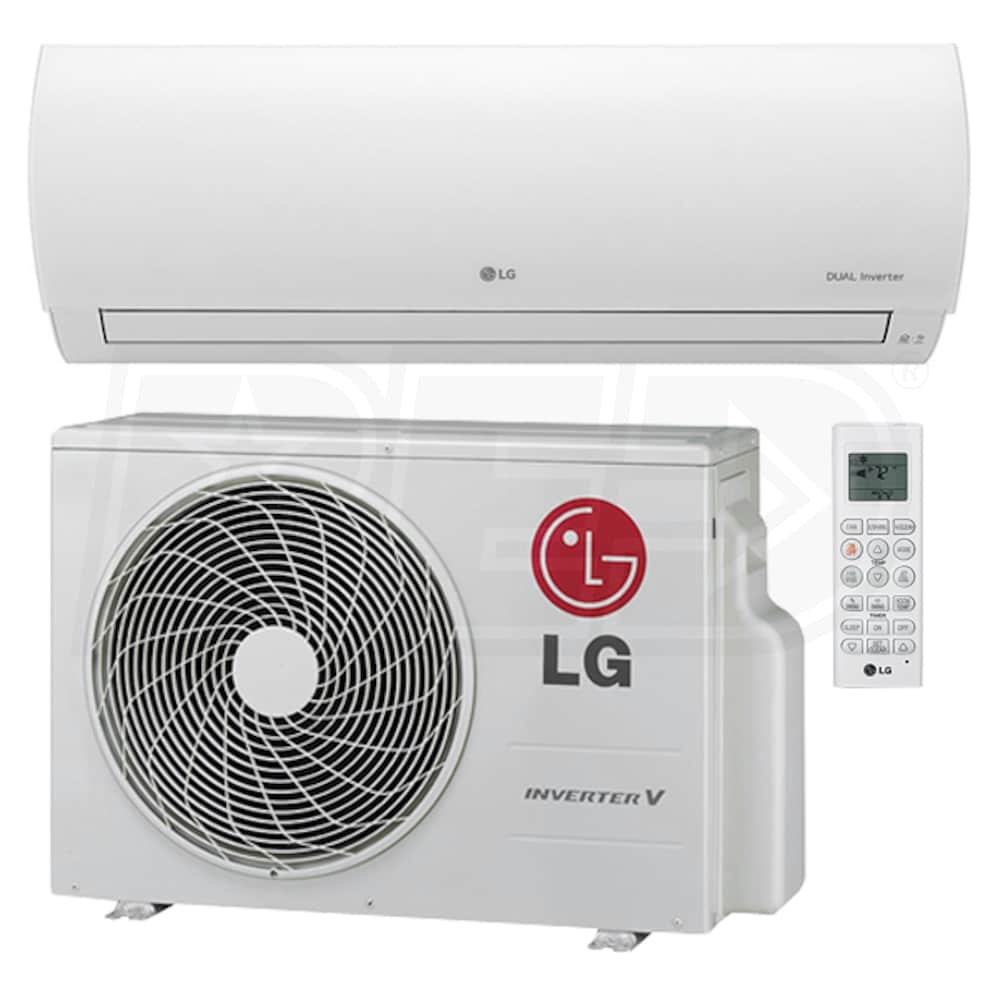

LG - 12k Cooling + Heating - Art Cool Premier Wall Mounted - Air Conditioning System - 25.5 SEER
Model:
LA120HYV1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: MSPLTKIT-143815
Length (ft)
$303.61
In-Stock
Model: UC1636-3
$44.00
In-Stock
$105.62
In-Stock
Optional Accessories
7
Model: MLS143812-15
Length (ft)
$150.00
In-Stock
Model: ASP-MW-UNI
$296.32
In-Stock
Model: 84099
$5.30
In-Stock
Model: PREMTC00U
$167.00
Model: LHKIT-75
$86.49
In-Stock
Features
- Wi-Fi Enabled
- The LA120HYV1 includes a Wi-Fi module, enabling the control of your LG air conditioner with smart enabled devices. Simply plug in the included module in your indoor unit and download the SmartThinQ® app on your smart device to get started.
- Inverter Technology
- LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor regulate the refrigerant flow, reducing energy consumption.
- Gold Fin Protection
- To ensure the reliability and longevity of the LAU120HYV1's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- LGRED° Heat Technology
- Low or negative ambient temperatures won't slow this system down. LGRED° Heat technology boasts 100% heating capacity down to 5°F and continuous heating operation down to -13°F.
- Self-Cleaning Coil
- The LAN120HYV1 indoor unit features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- Jet Temperature Control
- Getting your zones comfortable quickly is no problem with this system thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
- Sleep Mode
- With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Dehumidify
- LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Swing Mode
- The unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
- Chaos Wind Feature
- The indoor unit cycles both air flow direction and fan speed, you can enjoy a natural circulation pattern in the comfort of your home.
- Base Pan Heater Included
- Avoid damage to your outdoor condenser by using the included base an heater. It prevents ice build up when operating in heating mode in very low temperatures.
- (1) LG - 12k BTU - Art Cool Premier Outdoor Condenser - Single Zone Only (LAU120HYV1)
- (1) LG Art Cool Premier 12k BTU Wall Mounted Unit - For Single-Zone (LAN120HYV1)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The Art Cool Premier line blends two of LG's greatest passions: performance and aesthetics. The sleek, wall-mounted indoor unit operates at volumes as low as 17 dB and can easily switch between a variety of operating modes with the included wireless handheld remote controller. The Art Cool line also features LGRED° Heat technology, which boasts superior heating performance in extreme cold weather climates. Designed to provide energy conscious heating and cooling without disrupting the design of your room, the LA120HYV1 is the perfect single zone ductless heat pump for nearly any application.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) LG - 12k BTU - Art Cool Premier Outdoor Condenser - Single Zone Only (LAU120HYV1)
- (1) LG Art Cool Premier 12k BTU Wall Mounted Unit - For Single-Zone (LAN120HYV1)
LA120HYV1
General Information
Type
Wall Mounted
Product Sub-line
Art Cool Premier
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
UPC
048231376969
Performance
Cooling BTU
12000
Cooling Capacity
11000 BTU
Heating Capacity
12000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
25.5
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.7
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
12.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
101 Pounds
Shipping Weight
105 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7849625

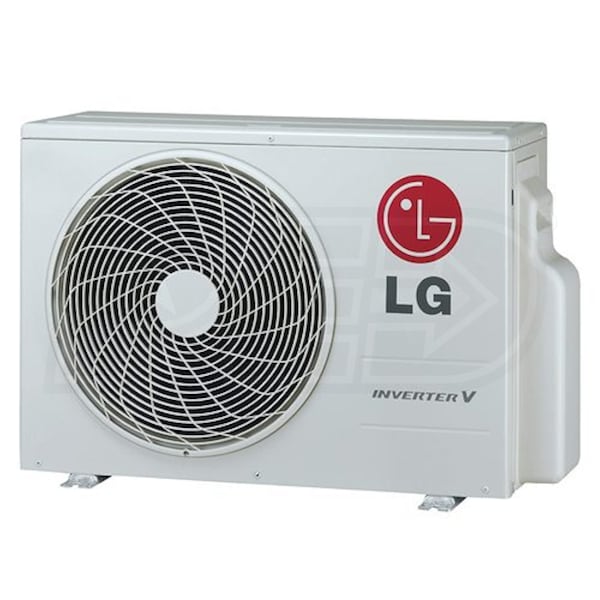

LAU120HYV1
General Information
Type
Outdoor Condenser
Product Line
Art Cool Premier
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 1/2 Inches
Product Width
30 5/16 Inches
Product Depth
11 5/16 Inches
Product Weight
77 Pounds
Shipping Weight
82 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

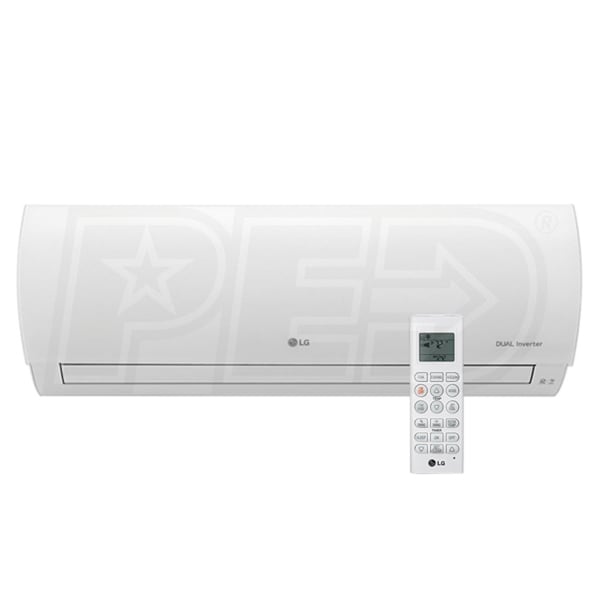

LAN120HYV1
General Information
Type
Wall Mounted
Product Line
Art Cool Premier
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
494 CFM
Minimum Air Flow
283 CFM
Minimum Sound Level
17 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
34 7/16 Inches
Product Depth
9 1/4 Inches
Product Weight
24 Pounds
Shipping Weight
30 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(16)
LG LA120HYV1 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.63
(16 Ratings)
94% recommend this product
5
(13)
(13)4(2)
(2)3(0)
(0)2(0)
(0)1(1)
(1)
Top notch mini-split
By Chris H.
Farmland, Indiana
Purchased 03/31/2020 |
Review Posted 05/09/2020
This LG Art Premier Mini-Split heat pump is great. Both the indoor evaporator and the outdoor condenser are nearly silent and look great. The remote is logical, has a nice display, and is easy to use. I look forward to purchasing another unit for a different area of my house. This is classic LG quality. The only thing that I could even think to improve would be the instruction sheet. It could be larger and the steps laid out in more logical, easier to follow manner.
Chris H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations, Id Buy It Again, Quiet, High Quality
Cons:
Bad Instructions
Great so far!!
By Cody H.
Salt Lake City, Utah
Purchased 10/13/2019 |
Review Posted 11/18/2019
I bought this as the primary heating and cooling unit for an addition for I built on my house. So far it has been great! I live in Utah and out has heated the space down perfectly. It is very quiet and easy to use.
Cody H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Works as I expected it to and more
By Michael L.
Orland Park, Illinois
Purchased 11/15/2016 |
Review Posted 10/08/2019
I installed the unit myself in fall 2016. During install, I was missing a fitting/tool that allows you to hook up vac-pump to vacuum out the lines. Delayed install for a week had to order the part.
I have used over the past three winters, In the first winter, didn't run during the winter wanted to get a baseline for how long it would take to warm up the cabin from usual temps of 0-10°f and how the electric bill would be.
In the last couple of years, I have had the unit running all year long. Electricity use varies from an extra 4 - 90 bucks a month to run. I keep the temperature in Summer 75° this keeps the humidity down and winter 60° to keep things from freezing. 60°f is the lowest setting for the unit. There is an antifreeze mode. I have not tested this because it not will run the risk of the power outage and the temperature dipping down below freezing. The power did go out and lasted for 4 hours, and with the indoor temp at 60°f, the temp dropped down to 38°f before the power returned. Outdoor temp was 5°f. Again last year temps made it down to -25°f. The system worked perfectly down to -20°f then started to have issues with trying to keep the cabin warm. The temp dropped to 42°f. Once the daytime temperature went above -15°f, the system started to pump out the heat again.
I use the WiFi to control the system to raise the heat before I show up to the cabin. That works nice. Over the three years, I have had a few power loss one or two of them caused the WiFi not to reconnect. A power reset took care of that issue, and a neighbor helped me with that when I was not at the cabin.
Overall the system has worked well for me. The cabin is located in the Northwoods of Wisconsin. Note: When I'm at the cabin, I have a wood-burning stove as my primary heat source.
I have used over the past three winters, In the first winter, didn't run during the winter wanted to get a baseline for how long it would take to warm up the cabin from usual temps of 0-10°f and how the electric bill would be.
In the last couple of years, I have had the unit running all year long. Electricity use varies from an extra 4 - 90 bucks a month to run. I keep the temperature in Summer 75° this keeps the humidity down and winter 60° to keep things from freezing. 60°f is the lowest setting for the unit. There is an antifreeze mode. I have not tested this because it not will run the risk of the power outage and the temperature dipping down below freezing. The power did go out and lasted for 4 hours, and with the indoor temp at 60°f, the temp dropped down to 38°f before the power returned. Outdoor temp was 5°f. Again last year temps made it down to -25°f. The system worked perfectly down to -20°f then started to have issues with trying to keep the cabin warm. The temp dropped to 42°f. Once the daytime temperature went above -15°f, the system started to pump out the heat again.
I use the WiFi to control the system to raise the heat before I show up to the cabin. That works nice. Over the three years, I have had a few power loss one or two of them caused the WiFi not to reconnect. A power reset took care of that issue, and a neighbor helped me with that when I was not at the cabin.
Overall the system has worked well for me. The cabin is located in the Northwoods of Wisconsin. Note: When I'm at the cabin, I have a wood-burning stove as my primary heat source.
Michael L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
4/5
Pros:
Exceeded Expectations, Durable, Light Weight, I'd Buy It Again
Cons:
Plastic parts seem to lower Quality
Sunroom Relief
By Todd P.
Noblesville, Indiana
Purchased 05/27/2019 |
Review Posted 08/21/2019
We Love,Love, Love this system. Researched many units and the LG stood out as the best. In the summer our room was so hot we couldn't use it and in the winter we ran a space heater but it couldn't keep up. We mounted the unit under a window and it turned out to be PERFECT. Hired a heating guy I know to install everything and he was done in about 2 hours. Can finally enjoy our sunroom. The pricing was the best I could find for this unit and everything arrived shortly after I ordered.
Todd P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Exceeded Expectations, High Quality
Well worth the investment
By Artem C.
Rockville, Maryland
Purchased 05/31/2019 |
Review Posted 08/11/2019
The upstairs rooms in my home never had the proper returns setup when the house was build (40's) so the ducts never supplied the same hot/cold air that the downstairs received. After talking with my next door neighbor he put me on to mini splits. I spent my time reading up on the subject and this LG unit is what ended up being ideal for my situation. The entire system was setup today and it works like a dream. I had previously used mobile AC units for the rooms that were drawing 9 amps each whereas both the new units together running at their coolest setting (18c) has a combined 4.3amp drain. According to the label on the side of the unit they are less efficient in the winter as heat pumps but seeing as how its upstairs rooms that they would be heating I hope it won't be that big of a deal.
Compared to the option of busting out drywall, running new ducts, installing new drywall and then painting the cost of these units is a fraction of the cost I was looking at. Coupled with the efficiency they provide and its a no brainer. The wall mounts inside are quiet and very sleek looking. The remotes look rather cheap and reminiscent of a motel tv remote but that is my only knock on the system at this point.
Overall eComfort had the best cost and selection from what I found. The outside unit arrived with one of the plastic plugs pushed in to the fins so I thought the unit might have been damaged in transit. My HVAC installer told me it was fine and after powering everything up and having zero leaks it backed up that assessment. I would recommend buying the install kits as well. My installer told me that he would buy the accessories at cost for me but after hearing the price he told me to go through eComfort. Since I didn't order it initially I had to pay shipping for two orders so there's a regret right there.
While this might sound like a fanboy/bought review it is not. There is nothing I can do to convince you otherwise if you think what is written is too good to be true. All I can say is that today I moved out the two mobile AC units as well as the two heaters from both of my tenants rooms and I'm paying a fraction of the heating/cooling bills I was before.
Compared to the option of busting out drywall, running new ducts, installing new drywall and then painting the cost of these units is a fraction of the cost I was looking at. Coupled with the efficiency they provide and its a no brainer. The wall mounts inside are quiet and very sleek looking. The remotes look rather cheap and reminiscent of a motel tv remote but that is my only knock on the system at this point.
Overall eComfort had the best cost and selection from what I found. The outside unit arrived with one of the plastic plugs pushed in to the fins so I thought the unit might have been damaged in transit. My HVAC installer told me it was fine and after powering everything up and having zero leaks it backed up that assessment. I would recommend buying the install kits as well. My installer told me that he would buy the accessories at cost for me but after hearing the price he told me to go through eComfort. Since I didn't order it initially I had to pay shipping for two orders so there's a regret right there.
While this might sound like a fanboy/bought review it is not. There is nothing I can do to convince you otherwise if you think what is written is too good to be true. All I can say is that today I moved out the two mobile AC units as well as the two heaters from both of my tenants rooms and I'm paying a fraction of the heating/cooling bills I was before.
Artem C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
So Quiet
By Michael L.
Steamboat Springs, Colorado
Purchased 06/04/2019 |
Review Posted 08/08/2019
We live in the mountains of Colorado and wanted to make sure that we had a unit that could heat during the cold winters in addition to the obvious need for air conditioning in the summer. We have a very small 460 sq ft condo and really only needed the 9k BTU but the 12K BTU was on sale for just $100 more than the 9k BTU so we went ahead and upgraded to this unit. After installing and using the unit, I am sure that the 9K BTU would have been fine as it is very efficient. It is so quiet we seriously cannot hear it when it is running. I believe you will not be disappointed if you purchase a premier unit. We are the first unit in our complex to put an air conditioning unit in and everyone that has come by to see it is so impressed with how quick it is to cool and how completely quiet it is.
Michael L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Easy to use
By Katie M.
Washington
Purchased 08/24/2018 |
Review Posted 10/30/2018
We are really enjoying having this unit. It does a great job of keeping our small space warm or cool. When the temperature drops to the low 30's it seems to struggle to regulate and makes lots of noise in the process. Other then that it is a fairly quite machine.
Katie M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Why did I wait so long?
By Mike Y.
Wichita Falls, Texas
Purchased 09/15/2018 |
Review Posted 10/30/2018
Took to long to make this purchase. Quite, efficient. Would highly recommend to anyone that wants a quality unit.
Mike Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Overall good product
By Thomas R
Springville, Iowa
Review Posted 07/10/2018
Overall very impressed, placed in stand alone shop. Literature with product is clearly designed for professional not advanced DIY or prosumer. Took 24x36 shop from 88 degrees to an even 74 degrees in about 20 min.
Thomas R Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Works very well and energy efficent
By Michael L.
Orland Park, Illinois
Purchased 11/15/2016 |
Review Posted 11/22/2017
I use this in a cabin in Wisconsin. WiFi connection is perfect for us to warm up or cool down the cabin before we arrive. I use a cellular hotspot as my internet connect. This keeps my cabin warm as the specs. claim -13 degree f outside temperature. Cooling has no issue. Quality is Good just plastic is very thin and flimsy. But once installed it has no bearing on operational functionality. I mounted the outside unit to the cabin two feet off the ground so the snow does not bury the unit and stop its operation. This choice once in awhile the unit is running some noise will resonate through the building. This is not loud it is or very noticeable but I notice it.
The only issue I had was that you needed a special fitting to complete the installation. to vacuum out the lines and do a leak test before you can release the refrigerant. It just delayed installation a week so I can order on Amazon.
The only issue I had was that you needed a special fitting to complete the installation. to vacuum out the lines and do a leak test before you can release the refrigerant. It just delayed installation a week so I can order on Amazon.
Michael L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
5/5
Pros:
Features, Easy To Use, Exceeded Expectations, I'd Buy It Again
Cons:
not all tools/fittings are included installation kit
How-To Articles
What You Should Know About Mini-Split Wiring
Although they are easier to install than central air conditioning systems, mini...
How to Pick the Perfect Mitsubishi Mini-Split Condenser
If you're struggling to keep your home or office comfortable, you are not alone...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
LG - 12k Cooling + Heating - Art Cool Premier Wall Mounted - Air Conditioning System - 25.5 SEER
Customer Review Images
