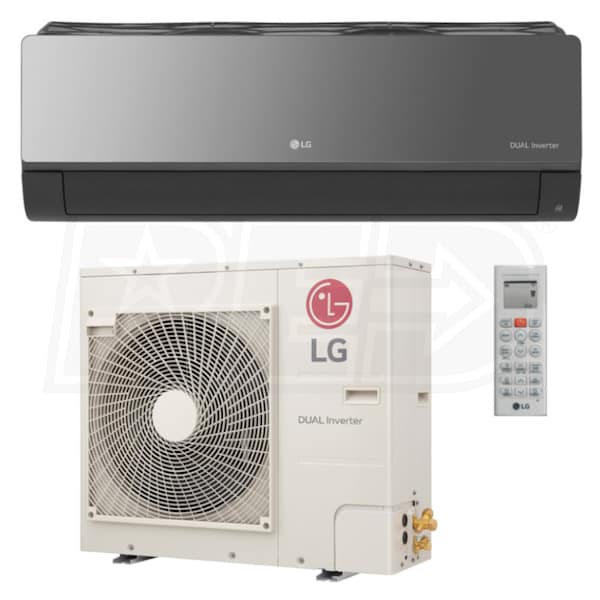

LG - 18k Cooling + Heating - Art Cool Mirror Wall Mounted - Air Conditioning System - 22.0 SEER2
Model:
LA181HSV5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures without overshooting or short-cycling.
- Gold Fin Protection
- To ensure the reliability and longevity of the LSU181HSV5's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Quiet Design
- The LAN181HSV5 indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
- Built-In Wi-Fi
- The LAN181HSV5 has built-in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
- Self-Cleaning Coil
- The LAN181HSV5 indoor unit features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- Jet Temperature Control
- With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
- Sleep Mode
- With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Dehumidify
- LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality
- A washable anti-fungal filter is the first line of defense against dust and bacteria. This filter is backed up by a high air flow 3M Micro Protection Filter that captures microscopic irritants for pristine air quality.
- Integrated Base Pan Heater
- Factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
- (1) LG - 18k BTU - High-Efficiency Outdoor Condenser - Single Zone Only (LSU181HSV5)
- (1) LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone (LAN181HSV5)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The Art Cool Mirror line blends two of LG's greatest passions: efficiency and aesthetics. The LAN181HSV5 indoor unit features a handsome smoked charcoal mirror finish and it operates at volumes as low as 31 dB. The included wireless handheld remote controller offers easy access to a number of helpful operating modes and functions. Designed to provide energy conscious heating and cooling without disrupting the design of your room, the LA181HSV5 is the perfect single zone ductless heat pump for nearly any application.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) LG - 18k BTU - High-Efficiency Outdoor Condenser - Single Zone Only (LSU181HSV5)
- (1) LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone (LAN181HSV5)
LA181HSV5
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Sub-line
Art Cool Mirror
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Base Pan Heater Included
Yes
Outdoor Unit Size
18000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
21600 BTU
Cooling Power Input
1.43 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
22
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.58
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.5
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
158 Pounds
Shipping Weight
182 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
207462345
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LSU181HSV5
General Information
Type
Outdoor Condenser
Product Line
High-Efficiency
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Heating BTU
21600
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
114.8 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
31 1/2 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
121 Pounds
Shipping Weight
131 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LAN181HSV5
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Mirror
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
706 CFM
Minimum Air Flow
371 CFM
Minimum Sound Level
31 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
114.8 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
12 3/4 Inches
Product Width
40 9/16 Inches
Product Depth
9 11/16 Inches
Product Weight
32 Pounds
Shipping Weight
39 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
