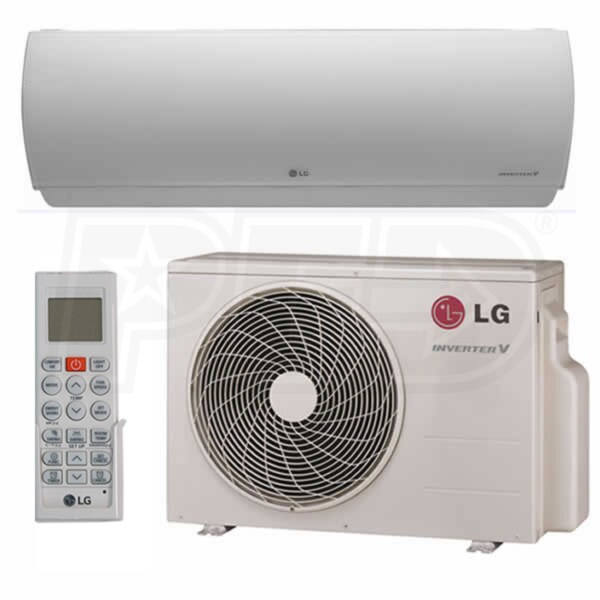

LG - 24k Cooling + Heating - Art Cool Premier Wall Mounted - Air Conditioning System - 22 SEER
Model:
LA240HYV1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: UC2448-3
$77.00
In-Stock
Model: MSPLTKIT-385815
Length (ft)
$337.61
In-Stock
$105.62
In-Stock
Optional Accessories
8
Model: MLS385812-15
Length (ft)
$184.00
In-Stock
Model: ASP-MW-UNI
$296.32
In-Stock
Model: 84099
$5.30
In-Stock
Model: PREMTC00U
$167.00
Model: ZLABGP02A
$113.00
Model: LHKIT-100
$142.92
Only 4 In-Stock
Features
- Wi-Fi Enabled
- The LA240HYV1 includes a Wi-Fi module, enabling the control of your LG air conditioner with smart enabled devices. Simply plug in the included module in your indoor unit and download the SmartThinQ® app on your smart device to get started.
- Inverter Technology
- LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor regulate the refrigerant flow, reducing energy consumption.
- Gold Fin Protection
- To ensure the reliability and longevity of the LAU240HYV1's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- LGRED° Heat Technology
- Low or negative ambient temperatures won't slow this system down. LGRED° Heat technology boasts 100% heating capacity down to 5°F and continuous heating operation down to -13°F.
- Self-Cleaning Coil
- The LAN240HYV1 indoor unit features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- Jet Temperature Control
- Getting your zones comfortable quickly is no problem with this system thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
- Sleep Mode
- With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Dehumidify
- LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Swing Mode
- The unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
- Chaos Wind Feature
- The indoor unit cycles both air flow direction and fan speed, you can enjoy a natural circulation pattern in the comfort of your home.
- Base Pan Heater Included
- Avoid damage to your outdoor condenser by using the included base an heater. It prevents ice build up when operating in heating mode in very low temperatures.
- (1) LG - 24k BTU - Art Cool Premier Outdoor Condenser - Single Zone Only (LAU240HYV1)
- (1) LG Art Cool Premier 24k BTU Wall Mounted Unit - For Single-Zone (LAN240HYV1)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG System LA240HYV1 will improve your quality of life in an affordable, eco-friendly way. Over the years, LG strives to meet the demand for high quality air conditioning solutions with greater energy efficiency, helping the environment while also reducing electricity costs for consumers. Greater energy savings are expected over the years, bringing remarkable cost savings to your home and business. Furthermore, LG's Heat Pumps are sturdy, reliable products with prolonged lifespans designed to provide years of worry-free performance.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) LG - 24k BTU - Art Cool Premier Outdoor Condenser - Single Zone Only (LAU240HYV1)
- (1) LG Art Cool Premier 24k BTU Wall Mounted Unit - For Single-Zone (LAN240HYV1)
LA240HYV1
General Information
Type
Wall Mounted
Product Sub-line
Art Cool Premier
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
27000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
22.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
12.0
Cooling Power Input
1760 Watts
Heating Power Input
2190 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
156 Pounds
Shipping Weight
160 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8584526
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LAU240HYV1
General Information
Type
Outdoor Condenser
Product Line
Art Cool Premier
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
98.4 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
31 1/2 Inches
Product Width
38 5/16 Inches
Product Depth
14 3/16 Inches
Product Weight
122 Pounds
Shipping Weight
131 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LAN240HYV1
General Information
Type
Wall Mounted
Product Line
Art Cool Premier
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
4.7 Pints/Hour
Maximum Air Flow
565 CFM
Minimum Air Flow
317 CFM
Minimum Sound Level
29 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 47/48 Inches
Product Width
42 15/16 Inches
Product Depth
9 19/24 Inches
Product Weight
34 Pounds
Shipping Weight
38 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(13)
LG LA240HYV1 Reviews & Ratings
Customer Rating
4.54
(13 Ratings)
92% recommend this product
5
(10)
(10)4(2)
(2)3(0)
(0)2(0)
(0)1(1)
(1)
Top notch mini-split
By Chris H.
Farmland, Indiana
Purchased 03/31/2020 |
Review Posted 05/09/2020
This LG Art Premier Mini-Split heat pump is great. Both the indoor evaporator and the outdoor condenser are nearly silent and look great. The remote is logical, has a nice display, and is easy to use. I look forward to purchasing another unit for a different area of my house. This is classic LG quality. The only thing that I could even think to improve would be the instruction sheet. It could be larger and the steps laid out in more logical, easier to follow manner.
Chris H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great so far!!
By Cody H.
Salt Lake City, Utah
Purchased 10/13/2019 |
Review Posted 11/18/2019
I bought this as the primary heating and cooling unit for an addition for I built on my house. So far it has been great! I live in Utah and out has heated the space down perfectly. It is very quiet and easy to use.
Cody H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Sunroom Relief
By Todd P.
Noblesville, Indiana
Purchased 05/27/2019 |
Review Posted 08/21/2019
We Love,Love, Love this system. Researched many units and the LG stood out as the best. In the summer our room was so hot we couldn't use it and in the winter we ran a space heater but it couldn't keep up. We mounted the unit under a window and it turned out to be PERFECT. Hired a heating guy I know to install everything and he was done in about 2 hours. Can finally enjoy our sunroom. The pricing was the best I could find for this unit and everything arrived shortly after I ordered.
Todd P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Well worth the investment
By Artem C.
Rockville, Maryland
Purchased 05/31/2019 |
Review Posted 08/11/2019
The upstairs rooms in my home never had the proper returns setup when the house was build (40's) so the ducts never supplied the same hot/cold air that the downstairs received. After talking with my next door neighbor he put me on to mini splits. I spent my time reading up on the subject and this LG unit is what ended up being ideal for my situation. The entire system was setup today and it works like a dream. I had previously used mobile AC units for the rooms that were drawing 9 amps each whereas both the new units together running at their coolest setting (18c) has a combined 4.3amp drain. According to the label on the side of the unit they are less efficient in the winter as heat pumps but seeing as how its upstairs rooms that they would be heating I hope it won't be that big of a deal.
Compared to the option of busting out drywall, running new ducts, installing new drywall and then painting the cost of these units is a fraction of the cost I was looking at. Coupled with the efficiency they provide and its a no brainer. The wall mounts inside are quiet and very sleek looking. The remotes look rather cheap and reminiscent of a motel tv remote but that is my only knock on the system at this point.
Overall eComfort had the best cost and selection from what I found. The outside unit arrived with one of the plastic plugs pushed in to the fins so I thought the unit might have been damaged in transit. My HVAC installer told me it was fine and after powering everything up and having zero leaks it backed up that assessment. I would recommend buying the install kits as well. My installer told me that he would buy the accessories at cost for me but after hearing the price he told me to go through eComfort. Since I didn't order it initially I had to pay shipping for two orders so there's a regret right there.
While this might sound like a fanboy/bought review it is not. There is nothing I can do to convince you otherwise if you think what is written is too good to be true. All I can say is that today I moved out the two mobile AC units as well as the two heaters from both of my tenants rooms and I'm paying a fraction of the heating/cooling bills I was before.
Compared to the option of busting out drywall, running new ducts, installing new drywall and then painting the cost of these units is a fraction of the cost I was looking at. Coupled with the efficiency they provide and its a no brainer. The wall mounts inside are quiet and very sleek looking. The remotes look rather cheap and reminiscent of a motel tv remote but that is my only knock on the system at this point.
Overall eComfort had the best cost and selection from what I found. The outside unit arrived with one of the plastic plugs pushed in to the fins so I thought the unit might have been damaged in transit. My HVAC installer told me it was fine and after powering everything up and having zero leaks it backed up that assessment. I would recommend buying the install kits as well. My installer told me that he would buy the accessories at cost for me but after hearing the price he told me to go through eComfort. Since I didn't order it initially I had to pay shipping for two orders so there's a regret right there.
While this might sound like a fanboy/bought review it is not. There is nothing I can do to convince you otherwise if you think what is written is too good to be true. All I can say is that today I moved out the two mobile AC units as well as the two heaters from both of my tenants rooms and I'm paying a fraction of the heating/cooling bills I was before.
Artem C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Very Pleased
By Melanie M.
Illinois
Purchased 11/29/2018 |
Review Posted 02/22/2019
I purchased this unit for a small commercial building (ice cream/sandwich shop)that had no central heating system. So far, this Winter has been a challenge. After installation of this unit by my HVAC contractor, the weather has gone from low teens, to -25 degree weather. Our business is closed during the harsh winter months, but I have continued to check on the equipment/building. Even during the harshest weather, this unit has kept my building warm and comfortable, without cold spots. I am pleased with the performance of the unit and am hoping for a pleasant summer using this unit as our air conditioning source.
Melanie M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet
Cons:
Expensive
Easy to use
By Katie M.
Washington
Purchased 08/24/2018 |
Review Posted 10/30/2018
We are really enjoying having this unit. It does a great job of keeping our small space warm or cool. When the temperature drops to the low 30's it seems to struggle to regulate and makes lots of noise in the process. Other then that it is a fairly quite machine.
Katie M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Why did I wait so long?
By Mike Y.
Wichita Falls, Texas
Purchased 09/15/2018 |
Review Posted 10/30/2018
Took to long to make this purchase. Quite, efficient. Would highly recommend to anyone that wants a quality unit.
Mike Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Overall good product
By Thomas R
Springville, Iowa
Review Posted 07/10/2018
Overall very impressed, placed in stand alone shop. Literature with product is clearly designed for professional not advanced DIY or prosumer. Took 24x36 shop from 88 degrees to an even 74 degrees in about 20 min.
Thomas R Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Quiet, Price, High Quality
Cons:
Included Instructions could be better, Suggested line set kit includes too short of control cable
My First Installation
By Albert C.
Kerrville, Texas
Purchased 07/15/2017 |
Review Posted 08/07/2017
Took a little time to fix the instructions into my head especially with the small print, but everything I needed to know was there. Bending the 5/8" tubing was a bit nerve racking for fear of kinking it, but eventually I got it molded to the right position to fit thru the designated spot to slip into the wall hole. The hardest part was working the tubing thru the wall and down to the condenser, but once it was plumbed and vacuumed down I applied power and it immediately started up. Unit is working well and blowing good, cool air.
Albert C. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
4/5
Quality built product
By Jeff E.
Mechanicsburg, Pennsylvania
Purchased 01/06/2017 |
Review Posted 02/17/2017
I had this unit professionally installed by a reputable local HVAC company. We have a large addition off the back of our house that is 1 story with 3 exposed exterior walls. The prior owner had electric baseboard heaters (very inefficient). The 300 sq. ft. room needed its own heating/ a/c unit due to its location. This unit is very well built. LG puts a lot of effort in the quality. Living in PA I was worried about the low temperatures and the functionality of a heat pump.
Many units won't operate below freezing thus making it pointless in PA. This LG unit will operate at 100% efficiency down to -13 degrees. At -14 degrees it will continue to throw heat, just not at 100% efficiency. In other words, if you live in a state similar to PA, this unit is perfect! It is nice to set the remote to a temperature and just walk away.
It kicks on and off to maintain your set temp. The outside unit you can't even hear run. It is as quiet as the indoor unit. There are tons of features you can use to program it to your liking. Overall I love this unit and encourage anyone to buy it if your situation is similar to mine.
Many units won't operate below freezing thus making it pointless in PA. This LG unit will operate at 100% efficiency down to -13 degrees. At -14 degrees it will continue to throw heat, just not at 100% efficiency. In other words, if you live in a state similar to PA, this unit is perfect! It is nice to set the remote to a temperature and just walk away.
It kicks on and off to maintain your set temp. The outside unit you can't even hear run. It is as quiet as the indoor unit. There are tons of features you can use to program it to your liking. Overall I love this unit and encourage anyone to buy it if your situation is similar to mine.
Jeff E. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
What You Should Know About Mini-Split Wiring
Although they are easier to install than central air conditioning systems, mini...
How to Pick the Perfect Mitsubishi Mini-Split Condenser
If you're struggling to keep your home or office comfortable, you are not alone...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
LG - 24k Cooling + Heating - Art Cool Premier Wall Mounted - Air Conditioning System - 22 SEER
Customer Review Images
