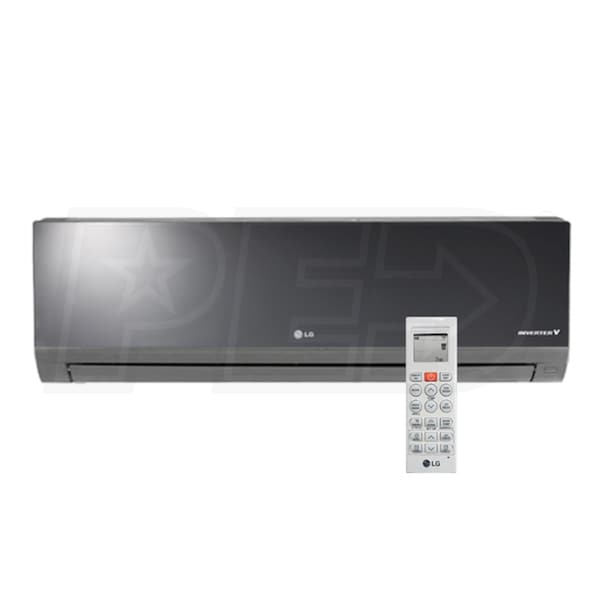

LG Art Cool Mirror 12k BTU Wall Mounted Unit - For Multi or Single-Zone
Model:
LAN120HSV5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Built in Wi-Fi
- The LAN120HSV5 has built in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
- Air Flow Options
- This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
- Quiet Design
- The LAN120HSV5 can operate at volumes as low as 31 dB thanks to a combination of cutting edge components. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow.
- Self-Cleaning Coil
- The LAN120HSV5 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
- Jet Cool
- This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Dehumidify
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality
- The LAN120HSV5 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.
- Hot Start
- When the hot start function is enabled, the LAN120HSV5's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Product Compatible With
- LG LMU18CHV, LMU24CHV, LMU36CHV, LMU540HV, LSU120HSV5 Mini Split Outdoor Condensers
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Their Art Cool Mirror mini split indoor units are a brilliant blend of sleek aesthetics and clever engineering, making them a great option for any room that needs a heating and cooling solution that won't disrupt the space's design. The LAN120HSV5's mirrored front panel may be the most eye-catching aspect of the unit, but the versatility of its operating modes and reliability of its components cannot be overstated. This product requires a compatible outdoor condenser for functionality.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
LAN120HSV5
Overview
Product Category
Mini Split System Components
UPC
048231385718
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Mirror
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
282 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
19 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
82 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
11 1/4 Inches
Product Width
34 13/16 Inches
Product Depth
8 1/16 Inches
Product Weight
24 Pounds
Shipping Weight
29 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(18)
LG LAN120HSV5 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.89
(18 Ratings)
83% recommend this product
5
(16)
(16)4(2)
(2)3(0)
(0)2(0)
(0)1(0)
(0)
Looks Good , Works Great
By Irvin W
Alabama
Purchased 08/26/2021 |
Review Posted 11/05/2021
Nice system, easy to install and very can barely hear it run!
Irvin W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Quiet, Id Buy It Again, High Quality
Best Product
By Amit P
HICKORY, North Carolina
Purchased 06/17/2020 |
Review Posted 07/30/2020
Very quiet, can’t hear any noise when it running
Amit P Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Light Weight, High Quality
Great unit.
By Shannon R.
Jewett, Texas
Purchased 04/19/2020 |
Review Posted 05/15/2020
Love the look and quietness. I haven’t figured out all the bells and whistle but working on it!
Shannon R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Quiet, Reliable
Cons:
There an odd odor when i turn unit temp up on AC feature.
Great so far!!
By Cody H.
Salt Lake City, Utah
Purchased 10/13/2019 |
Review Posted 11/18/2019
I bought this as the primary heating and cooling unit for an addition for I built on my house. So far it has been great! I live in Utah and out has heated the space down perfectly. It is very quiet and easy to use.
Cody H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Well worth the investment
By Artem C.
Rockville, Maryland
Purchased 05/31/2019 |
Review Posted 08/11/2019
The upstairs rooms in my home never had the proper returns setup when the house was build (40's) so the ducts never supplied the same hot/cold air that the downstairs received. After talking with my next door neighbor he put me on to mini splits. I spent my time reading up on the subject and this LG unit is what ended up being ideal for my situation. The entire system was setup today and it works like a dream. I had previously used mobile AC units for the rooms that were drawing 9 amps each whereas both the new units together running at their coolest setting (18c) has a combined 4.3amp drain. According to the label on the side of the unit they are less efficient in the winter as heat pumps but seeing as how its upstairs rooms that they would be heating I hope it won't be that big of a deal.
Compared to the option of busting out drywall, running new ducts, installing new drywall and then painting the cost of these units is a fraction of the cost I was looking at. Coupled with the efficiency they provide and its a no brainer. The wall mounts inside are quiet and very sleek looking. The remotes look rather cheap and reminiscent of a motel tv remote but that is my only knock on the system at this point.
Overall eComfort had the best cost and selection from what I found. The outside unit arrived with one of the plastic plugs pushed in to the fins so I thought the unit might have been damaged in transit. My HVAC installer told me it was fine and after powering everything up and having zero leaks it backed up that assessment. I would recommend buying the install kits as well. My installer told me that he would buy the accessories at cost for me but after hearing the price he told me to go through eComfort. Since I didn't order it initially I had to pay shipping for two orders so there's a regret right there.
While this might sound like a fanboy/bought review it is not. There is nothing I can do to convince you otherwise if you think what is written is too good to be true. All I can say is that today I moved out the two mobile AC units as well as the two heaters from both of my tenants rooms and I'm paying a fraction of the heating/cooling bills I was before.
Compared to the option of busting out drywall, running new ducts, installing new drywall and then painting the cost of these units is a fraction of the cost I was looking at. Coupled with the efficiency they provide and its a no brainer. The wall mounts inside are quiet and very sleek looking. The remotes look rather cheap and reminiscent of a motel tv remote but that is my only knock on the system at this point.
Overall eComfort had the best cost and selection from what I found. The outside unit arrived with one of the plastic plugs pushed in to the fins so I thought the unit might have been damaged in transit. My HVAC installer told me it was fine and after powering everything up and having zero leaks it backed up that assessment. I would recommend buying the install kits as well. My installer told me that he would buy the accessories at cost for me but after hearing the price he told me to go through eComfort. Since I didn't order it initially I had to pay shipping for two orders so there's a regret right there.
While this might sound like a fanboy/bought review it is not. There is nothing I can do to convince you otherwise if you think what is written is too good to be true. All I can say is that today I moved out the two mobile AC units as well as the two heaters from both of my tenants rooms and I'm paying a fraction of the heating/cooling bills I was before.
Artem C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
So Quiet
By Michael L.
Steamboat Springs, Colorado
Purchased 06/04/2019 |
Review Posted 08/08/2019
We live in the mountains of Colorado and wanted to make sure that we had a unit that could heat during the cold winters in addition to the obvious need for air conditioning in the summer. We have a very small 460 sq ft condo and really only needed the 9k BTU but the 12K BTU was on sale for just $100 more than the 9k BTU so we went ahead and upgraded to this unit. After installing and using the unit, I am sure that the 9K BTU would have been fine as it is very efficient. It is so quiet we seriously cannot hear it when it is running. I believe you will not be disappointed if you purchase a premier unit. We are the first unit in our complex to put an air conditioning unit in and everyone that has come by to see it is so impressed with how quick it is to cool and how completely quiet it is.
Michael L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Loving it!
By Chris V.
Linden, New Jersey
Purchased 04/23/2019 |
Review Posted 07/09/2019
I live in an older brick home from the 50's. Unfortunately, I didn't have the space to do a traditional central air set-up. So, my wife and I opted to go this route, to cool our home.
So far, we've installed three, of a total of five units in the home. The three units, immediately made a difference in the comfortability of the home. They blow very cool, they're very quiet, and they've been very effective at reducing humidity. So far, I am thrilled we went through with this system.
For the most part, installation was straight forward, my father-in-law and I have done most of the work (he did most of it if I'm honest) and the setup was pretty good. Just follow the instructions carefully.
If you're doing multi zones, you'll need a distribution block. I would STRONGLY recommend you consider a service valve (we went with the diamondback valves sold here). This is what has allowed us to start cooling the house, while we continue to work on the lineset runs. It allows you to isolate the lines, so you don't have to purge an entire system for tests. This should also be ideal if you ever need to service something in the future.
So far, this has been great. We plan on picking up one more wall unit (another art cool 12k) and likely one ceiling cartridge as well, to complete the install.
Strongly recommend!
So far, we've installed three, of a total of five units in the home. The three units, immediately made a difference in the comfortability of the home. They blow very cool, they're very quiet, and they've been very effective at reducing humidity. So far, I am thrilled we went through with this system.
For the most part, installation was straight forward, my father-in-law and I have done most of the work (he did most of it if I'm honest) and the setup was pretty good. Just follow the instructions carefully.
If you're doing multi zones, you'll need a distribution block. I would STRONGLY recommend you consider a service valve (we went with the diamondback valves sold here). This is what has allowed us to start cooling the house, while we continue to work on the lineset runs. It allows you to isolate the lines, so you don't have to purge an entire system for tests. This should also be ideal if you ever need to service something in the future.
So far, this has been great. We plan on picking up one more wall unit (another art cool 12k) and likely one ceiling cartridge as well, to complete the install.
Strongly recommend!
Chris V. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Quiet, I'd Buy It Again, Price, Exceeded Expectations
Very Pleased
By Curtis H
Morrill, Nebraska
Purchased 06/03/2019 |
Review Posted 06/24/2019
This cranks out more cool air than I had hoped for. Very satisfied.
Curtis H Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
4/5
Pros:
Quiet
Very Happy
By Kenneth G
crownsville, Maryland
Purchased 04/08/2019 |
Review Posted 04/29/2019
Works great and really quiet.
Kenneth G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Very Quiet And Works Great
By Ken G
Crownsville, Maryland
Purchased 03/31/2019 |
Review Posted 04/23/2019
Nice looking unit. I love the mirror finish. Heats great and cools great. So far no issues. Would definitely recommend.
Ken G Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5
