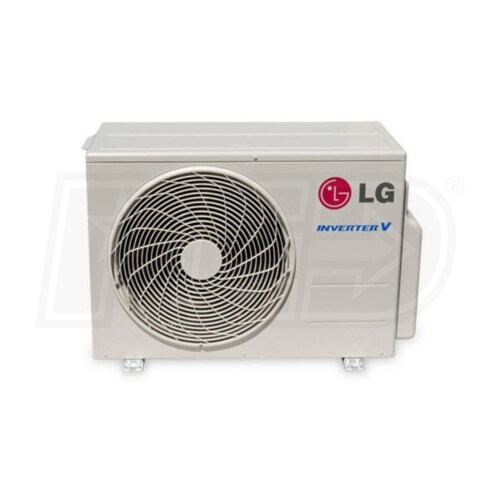

LG Art Cool Mirror - 12,000 BTU - Mini Split Outdoor Condenser - Heat Pump

Model:

LAU120HSV2

Write A Review
$855.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Friday, Nov 22nd
Shipping to60601
synchrony card logo
$143 / Month
Suggested monthly payments with 6 month financing.
LG Art Cool Mirror - 12,000 BTU - Mini Split Outdoor Condenser - Heat Pump
LG Art Cool Mirror - 12,000 BTU - Mini Split Outdoor Condenser - Heat Pump
Model: LAU120HSV2
$855.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible indoor unit for functionality.

    LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LAU120HSV2 is a single zone mini split outdoor condenser capable of supplying ductless heating and cooling to one room in your home. With inverter technology and an easy installation process, the LAU120HSV2 is a great choice for all sorts of applications.

    Product Features

    Inverter Technology
    LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures without overshooting or short-cycling.

    Gold Fin Protection
    To ensure the reliability and longevity of the LAU120HSV2's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.

    Low Ambient Operations
    Cold temperatures can't slow this condenser down. It supports cooling operations down to 14 degrees Fahrenheit and heating operations down to 5 degrees Fahrenheit. There is also a defrost feature, which removes frost from the outdoor condenser coil in frigid conditions.

    Quiet Design
    LG uses some of the most advanced components available to ensure that their mini split outdoor condensers are as quiet as possible. In the LAU120HSV2, a twin rotary compressor reduces vibration to limit noise. It also enjoys reduced electrical and mechanical sound thanks to brushless direct current fan motors.

    Product Includes
    • (1) LG LAU120HSV2 Mini Split Outdoor Condenser
    Product Compatible With
    • LG LAN120HSV2 Wall Mounted Mini Split Indoor Units
    Product Note

    This is not a complete mini split system. This product requires one compatible LG mini split indoor unit and the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.

Specifications

LAU120HSV2
specs product image PID-45635
General Information
Type
Outdoor Condenser
Product Line
Art Cool Mirror
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
20 7/8 Inches
Product Width
30 5/16 Inches
Product Depth
11 5/16 Inches
Product Weight
78 Pounds
Shipping Weight
82 Pounds
Certifications
Country of Origin
Korea
ETL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
