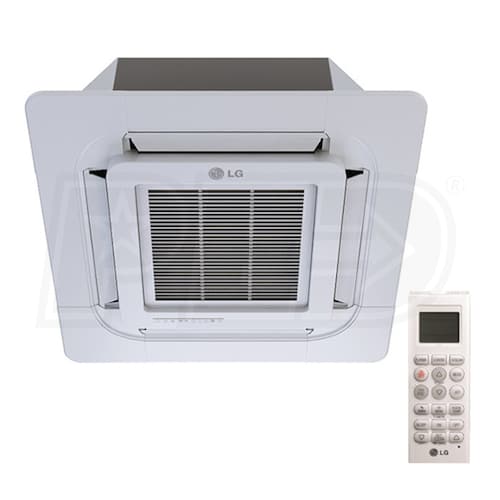

LG - 9K BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately
Model:
LCN098HV4-NG
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Air Flow Options
- There are three automated air flow options with the LCN098HV4. Swing mode fluctuates air flow direction. Chaos wind cycles direct and fan speed to provide more natural circulation. Finally Swirl mode produces steady comfort though out the zone.
- Quiet Design
- The LCN098HV4 can operate at volumes as low as 30 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- Jet Cool
- This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Condensate Protection
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LCN098HV4 through reliable, effective condensate removal.
- Improved Air Quality
- The LCN098HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
- Hot Start
- When the hot start function is enabled, the LCN098HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Part of the Four-Way Ceiling Cassette lineup of mini split indoor units, the LCN098HV4 combines powerful multi-directional air flow with a low-profile design, allowing you to heat and cool large rooms discreetly. Thanks to the recessed installation design, a grille less than 1" thick is the only visible part of an installed LCN098HV4.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
LCN098HV4-NG
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Required Grille Model
PT-UQC
UPC
048231387071
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
300 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
30 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
29 Pounds
Shipping Weight
37 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(7)
LG LCN098HV4-NG Reviews & Ratings
Customer Photos and Videos
excellent
By Sunny R.
Orlando, Florida
Purchased 04/10/2020 |
Review Posted 05/22/2020
love it - helped me with half the cost in installation n cost!
Sunny R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Clean Install And Quiet
By Eric M
NEWBURG, Maryland
Purchased 03/14/2020 |
Review Posted 04/29/2020
These LG ceiling cassettes are great! They're very quiet and look really good. I love having control over the temperature in each room that we have one installed.
Eric M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Light Weight, Easy To Use, Id Buy It Again
Cons:
Bad Instructions, Needs better install documentation.
Easy installtion, if you have access to the area above ceiling.
By Won Y.
Highland, Maryland
Purchased 12/02/2019 |
Review Posted 01/06/2020
I installed two of the ceiling units. Installation was easy. The most difficult part is to cut off a ceiling joist about 36 inches. I used Simpson Ties to sister the joist. The condensation drain line is 1 inch PVC, which is great. Less chance of being plugged. Make sure you start the system in AC mode first time per installation instruction. System is quiet and produce nice heat. The only issue I have is that the remote control setting temperature is not accurate at all. I set at 72 F for Heat and the system will not turn on even the room temperature is 65F.
Won Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
3/5
5/5
Pros:
Quiet, Easy To Use, Light Weight
Cons:
Bad Instructions, Temperature setting is not accurate
Cassette performance
By Gregory O.
Baltimore, Maryland
Purchased 10/24/2019 |
Review Posted 11/15/2019
Easy to install
Gregory O. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations, Fast, I'd Buy It Again, Like it
Exactly What I Was Looking For
By Scott S
Elizabeth, Indiana
Purchased 08/30/2019 |
Review Posted 09/26/2019
The ceiling cassettes installed easily, have not had the remainder of the system installed yet.
Scott S Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Features, Quiet, Light Weight, Reliable
Cons:
Bad Instructions
Excellent Product And Pricing
By Pavan G
SUNNYVALE, California
Purchased 08/15/2019 |
Review Posted 09/07/2019
Great product and worth the money.
Pavan G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great install, quality components, and affordable!
By Erik G.
Catonsville, Maryland
Purchased 05/18/2019 |
Review Posted 06/10/2019
Very good unit with a straight forward install. So far it has performed great with no issues. This was a DIY install. No high/over priced contractor needed. I had them do the final connections for warranty but everything else was pretty smooth.
Erik G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, Price, High Quality
