LG - 12k BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately
Model:
LCN128HV4-NG
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
5
Model: MLS143812-25
Length (ft)
$200.00
In-Stock
Model: MSCABLE144-50
$90.00
In-Stock
Model: ZRTBS01
$57.00
Factory-Direct
Model: PWFMDD200
$99.00
In-Stock
Model: ZLABGP01A
$98.00
Only 4 In-Stock
Features
Product Note
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/>https://lg-dfs-warranty.com/ within 60 days of installation.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
LCN128HV4-NG

General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
UPC
048231387088
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
335 CFM
Minimum Air Flow
247 CFM
Minimum Sound Level
32 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
40 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(7)
LG LCN128HV4-NG Reviews & Ratings
Customer Photos and Videos




Amazing
By AuburnGator
Florida
Purchased 07/29/2021 |
Review Posted 08/10/2023

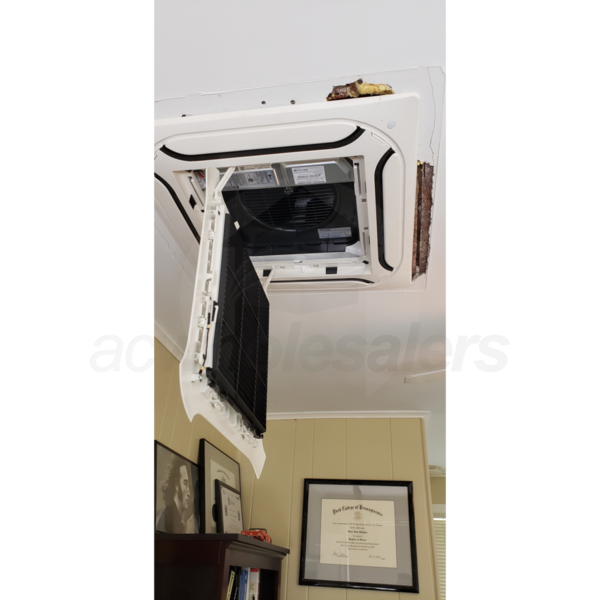

We live in a old house. Our antique system died and the duct was over 50 years old and rotten. I upgraded to a 5 zone system so I had control over each area in our 1900 square foot of conditioned space. I installed 3 ceiling cassettes so I could duct air to the bathrooms and the den. It has been transformative. Our electric usage went down over 40%. I insulated the units so I could put them in the attic.
Highly recommend these units.
Highly recommend these units.
AuburnGator Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again

Works great
By Jason L.
Brooklyn park, Maryland
Purchased 11/03/2021 |
Review Posted 12/01/2021
Great easy setup and low electric use.
Jason L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, Price, High Quality

excellent
By Sunny R.
Orlando, Florida
Purchased 04/10/2020 |
Review Posted 05/22/2020
love it - helped me with half the cost in installation n cost!
Sunny R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Nice Product
By Don E
Catawissa, Pennsylvania
Purchased 11/28/2019 |
Review Posted 12/22/2019
Looks good, much better than wall mounts
Don E Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price

Cassette performance
By Gregory O.
Baltimore, Maryland
Purchased 10/24/2019 |
Review Posted 11/15/2019


Easy to install
Gregory O. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations, Fast, I'd Buy It Again, Like it

Excellent Product And Pricing
By Pavan G
SUNNYVALE, California
Purchased 08/15/2019 |
Review Posted 09/07/2019
Great product and worth the money.
Pavan G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Great install, quality components, and affordable!
By Erik G.
Catonsville, Maryland
Purchased 05/18/2019 |
Review Posted 06/10/2019
Very good unit with a straight forward install. So far it has performed great with no issues. This was a DIY install. No high/over priced contractor needed. I had them do the final connections for warranty but everything else was pretty smooth.
Erik G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

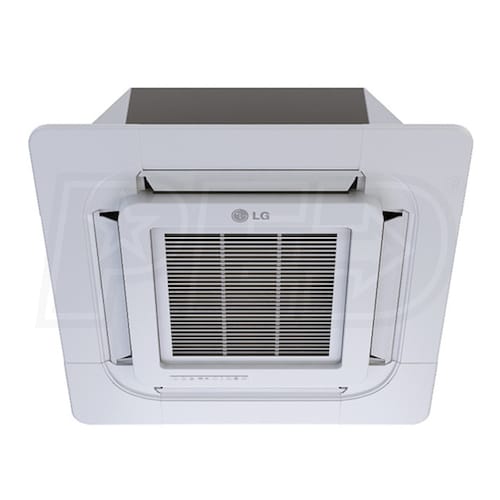

LG - 12k BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately
