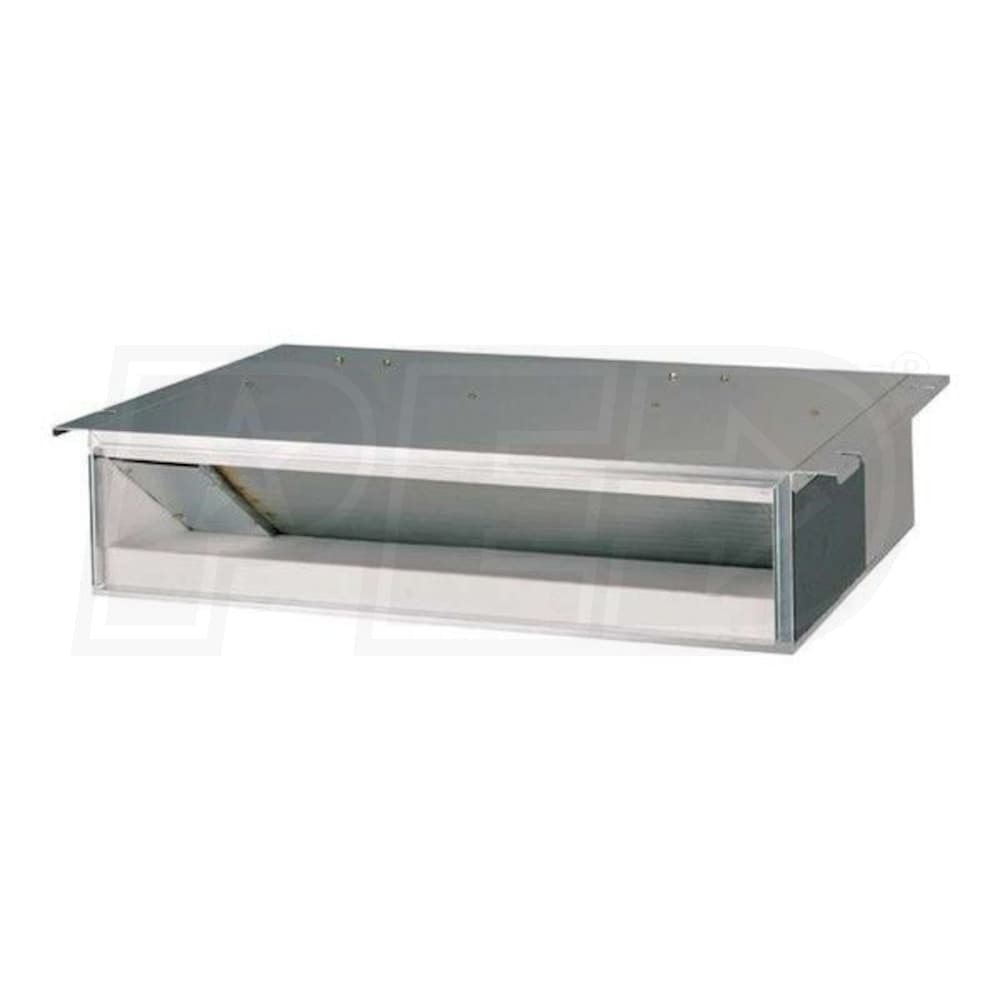

LG - 18k BTU - Low Static Concealed Duct Unit - For Multi or Single-Zone
Model:
LDN187HV4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
2
These accessories are required to properly setup/install this product.
Model: PZCWRC1
$29.00
Only 4 In-Stock
Model: PREMTC00U
$167.00
In-Stock
Optional Accessories
4
Model: MSCABLE144-25
$45.00
In-Stock
Model: MLS141212-15
Length (ft)
$160.00
In-Stock
Model: ZRTBS01
$57.00
In-Stock
Model: PWFMDD200
$99.00
In-Stock
Features
- Quiet Design
- Quiet Design
- The LDN187HV4 can operate at volumes as low as 31 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- The LDN187HV4 can operate at volumes as low as 31 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- Automated Operation
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Condensate Protection
- Condensate Protection
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LDN187HV4 through reliable, effective condensate removal.
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LDN187HV4 through reliable, effective condensate removal.
- Dehumidify
- Dehumidify
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality
- Improved Air Quality
- The LDN187HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
- The LDN187HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
- Hot Start
- Hot Start
- When the hot start function is enabled, the LDN187HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- When the hot start function is enabled, the LDN187HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Product Includes
- Product Includes
- (1) LG LDN187HV4 Concealed Duct Mini Split Indoor Unit
- (1) LG LDN187HV4 Concealed Duct Mini Split Indoor Unit
- Product Compatible With
- Product Compatible With
- LUU189HV, LMU18CHV, LMU24CHV, LMU36CHV, LMU480HV, LMU540HV, LMU600HV
- LUU189HV, LMU18CHV, LMU24CHV, LMU36CHV, LMU480HV, LMU540HV, LMU600HV
- Remote Control and Cable - A remote control (PREMTC00U recommended) and the PZCWRC1 remote control cable are required for each individual concealed duct unit in your system.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. The LDN187HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. Concealed duct indoor units mean that you can add mini split zones with no visible indoor units. With the LDN187HV4, a small air register is the only clue that a mini split is providing effective heating and cooling to your space.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
Specifications
LDN187HV4
Overview
Product Category
Mini Split System Components
UPC
048231387286
General Information
Type
Concealed Duct
Product Line
Multi F
Product Sub-line
Low-Static Ducted
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
530 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
31 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 23/48 Inches
Product Width
38 17/48 Inches
Product Depth
27 9/16 Inches
Product Weight
48.5 Pounds
Shipping Weight
57.3 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(3)
LG LDN187HV4 Reviews & Ratings
Thrilled With This Purchase!
By Linda H
Harrison, Tennessee
Purchased 07/21/2021 |
Review Posted 09/23/2021
This unit is so quiet and efficient, I hardly notice it, except the temperature is always just right. So glad we bought it!
Linda H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Exceeded Expectations, Reliable, High Quality
Cons:
Expensive
super quiet and dry.
By Malcolm P.
New Orleans, Louisiana
Purchased 03/17/2020 |
Review Posted 04/09/2020
The unit is extremely quiet and comfortable. I'm in south Louisiana and humidity is my biggest hurdle. Because the DC inverter can operate at very low speed the air is moving for a longer duration and is significantly drier than standard DX systems. I'm more comfortable even though I can set the thermostat at a higher temperature than I'm used to. I love the zone flexibility and the ducted option keeps the equipment out of site.
Malcolm P. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Quiet, Light Weight, Exceeded Expectations, Fast
Cons:
Bad Instructions
Quite Surprising
By Nicholas A
CHESAPEAKE, Virginia
Purchased 10/23/2018 |
Review Posted 12/29/2018
Even during the purchase process, I was still skeptical of how well these mini split units would work in relation to a 'conventional' heat pump system. Well, once the units were installed, all of my fears subsided with how well the unit works. I ended up getting two 9ks and two 12ks installed along with the 36k heat pump. So far the system has worked great. We did have one issue with one of the units showing a 'CH04" error code. It turned out to be a dislodged float on the condensate drain pump. Due to the accuracy of the code, the installer was able to troubleshoot and correct the issue pretty quickly.
I was really impressed with how much this system was 'plug and play' in terms of connections and setup. The hardest part of the install was removing all of the old stuff from the prior system.
I was really impressed with how much this system was 'plug and play' in terms of connections and setup. The hardest part of the install was removing all of the old stuff from the prior system.
Nicholas A Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5
