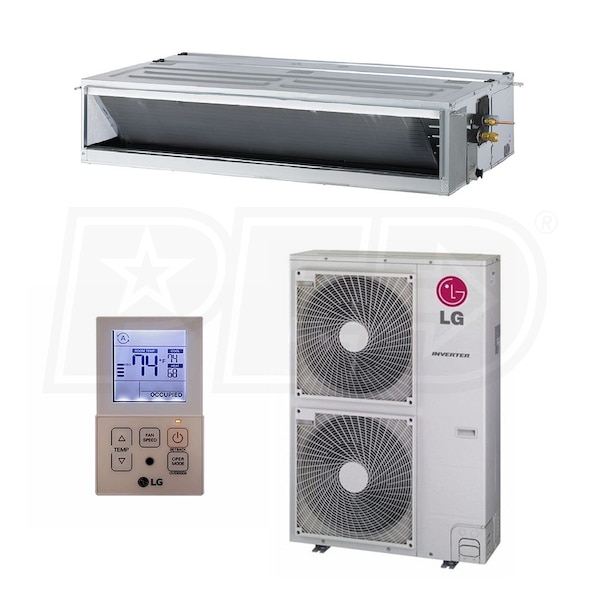

LG - 36k BTU Cooling + Heating - High-Static Concealed Duct LGRED° Air Conditioning System - 18.3 SEER2
Model:
LH368HHV4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
- Gold Fin Protection
- To ensure the reliability and longevity of the LUU360HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Quiet Design
- LG uses advanced components to ensure that their systems are as quiet as possible. In the LUU360HHV outdoor condenser, a twin rotary compressor reduces vibration to limit noise while both the outdoor and indoor units utilize brushless fan motors.
- Condensate Protection
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift and automatic overflow shutoff protects the LHN368HV through reliable, effective condensate removal.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient heating and cooling solutions can be seen across the LG product line. The LH368HHV4 shows that same devotion. LG's air handling system is designed to provide powerful heating and cooling and can be installed with nearly any pre-existing ducting run. Capable of managing high air speeds and volumes effortlessly, the LH368HHV4 is an impressive solution to your home's heating and cooling needs. A wireless remote is conveniently included to make controlling your air handling system a breeze. The LH368HHV4 also features LGRED° Heat technology, which boasts superior heating performance in extreme cold weather climates.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
Product Includes
LH368HHV4
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Concealed Duct
Product Sub-line
High-Static Ducted
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Outdoor Unit Size
36000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Heating Capacity
40000 BTU
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
5 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
18.3
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.0
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.2
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
332.75 Pounds
Shipping Weight
337.75 Pounds
Certifications
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
205788769
LUU360HHV
General Information
Type
Outdoor Condenser
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Heating BTU
40000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
32 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
246 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
54 17/48 Inches
Product Width
37 19/48 Inches
Product Depth
13 Inches
Product Weight
198.9 Pounds
Shipping Weight
223.1 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LHN368HV
General Information
Type
Concealed Duct
Product Line
High Static Ducted
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Maximum Air Flow
1130 CFM
Minimum Air Flow
706 CFM
Minimum Sound Level
37 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
14 47/48 Inches
Product Width
48 7/16 Inches
Product Depth
23 11/48 Inches
Product Weight
125 Pounds
Shipping Weight
139 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
PREMTC00U
General Information
Type
Mini Split Controller
Product Category
Mini Split Accessories
Maximum Number of Zones
16
Power Source
Hard-Wired
Dimensions
Product Height
4 3/4 Inches
Product Width
5/8 Inch
Product Length
2 3/4 Inches
Product Weight
0.18 Pounds
Overview
Product Category
Mini Split Accessories
PZCWRC1
General Information
Type
Wire Kit
Product Category
Mini Split Accessories
Dimensions
Product Length
33 Feet
Product Weight
0.25 Pounds
Certifications
Country of Origin
Korea
Overview
Product Category
Mini Split Accessories
