LG LMCN077HV-NOGRILLE
LG LMCN077HV-NOGRILLE
Hover to zoom
1 of 1

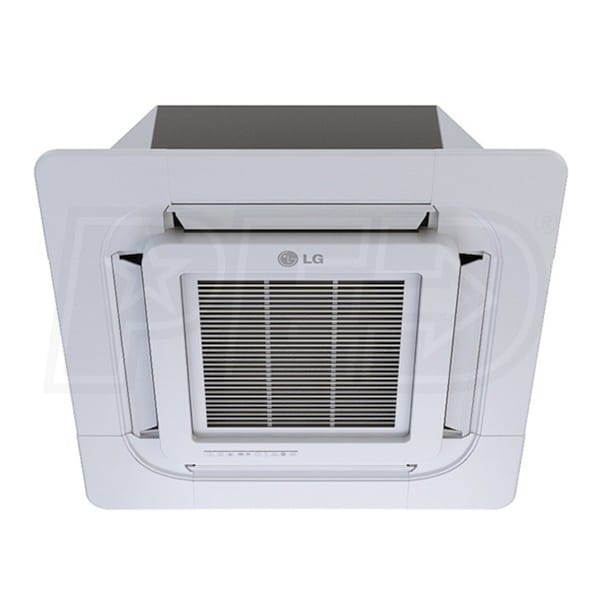

LG - 7k BTU - Ceiling Cassette - For Multi-Zone - Grille Sold Separately

Model:

LMCN077HV-NOGRILLE

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
LG - 7k BTU - Ceiling Cassette - For Multi-Zone - Grille Sold Separately
LG - 7k BTU - Ceiling Cassette - For Multi-Zone - Grille Sold Separately
Model: LMCN077HV-NOGRILLE
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 2
Length (ft)
$150.00
In-Stock
Model: ZRTBS01
$57.00
Factory-Direct
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

LMCN077HV-NOGRILLE
specs product image PID-50846
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
UPC
048231374361
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
265 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
24 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
34 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years

Reviews

(5)
LG LMCN077HV-NOGRILLE Reviews & Ratings
Verified Buyer
Verified Buyer
Easy to use
By Katie M.
Washington
Purchased 08/24/2018 |
Review Posted 10/30/2018
We are really enjoying having this unit. It does a great job of keeping our small space warm or cool. When the temperature drops to the low 30's it seems to struggle to regulate and makes lots of noise in the process. Other then that it is a fairly quite machine.
Katie M. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LSN120HXV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Why did I wait so long?
By Mike Y.
Wichita Falls, Texas
Purchased 09/15/2018 |
Review Posted 10/30/2018
Took to long to make this purchase. Quite, efficient. Would highly recommend to anyone that wants a quality unit.
Mike Y. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LSN243HLV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Performing as advertised!
By Lloyd Ogan
Placerville, California
Purchased 08/15/2018 |
Review Posted 09/08/2018
Found online. Installed and works as advertised
Lloyd Ogan Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Quiet, Price, I'd Buy It Again
Verified Buyer
Verified Buyer
Good Cassette!
By Charles M
La Grange, Texas
Purchased 04/04/2018 |
Review Posted 07/17/2018
Installed in an office in my shop, so far it has performed flawlessly. Options galore, on cooling dehumidifying heating etc. Physically it is a little large for a conventional 8' ceiling but, being quiet you don't notice it.
Charles M Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Features, Easy To Use, Quiet, Exceeded Expectations
Verified Buyer
Verified Buyer
I in installing it now
By Dennis H.
Miles City, Montana
Purchased 03/19/2018 |
Review Posted 04/10/2018
I started installing it to day. I had a installer looked it over and he is going help me and my son. I think it will nice because we like the ideal it go in the ceiling and not on the wall using up wall space.
Thanks Dennis
Dennis H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Features, Price
