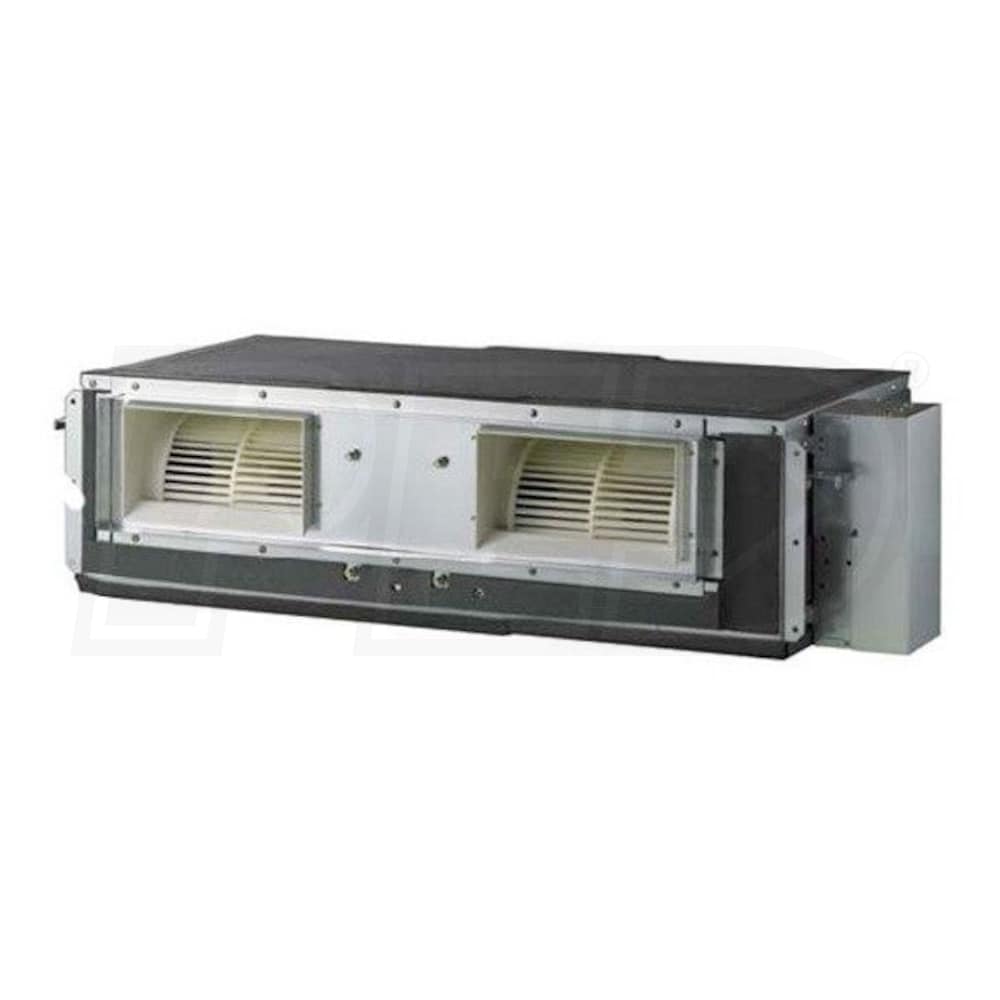

LG - 24k BTU - High Static Concealed Duct Unit - For Multi-Zone

Model:

LMHN240HV

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
LG - 24k BTU - High Static Concealed Duct Unit - For Multi-Zone
LG - 24k BTU - High Static Concealed Duct Unit - For Multi-Zone
Model: LMHN240HV
Was $1,114.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. The LMHN240HV is a mini split indoor unit designed for installation in ducting with high static pressures. Concealed duct indoor units mean that you can add mini split zones with no visible indoor units. With the LMHN240HV, a small air register is the only clue that a mini split is providing effective heating and cooling to your space.
  • Quiet Design
  • The LMHN240HV can operate at volumes as low as 35 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Condensate Protection
  • Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LMHN240HV through reliable, effective condensate removal.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LMHN240HV features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
  • Hot Start
  • When the hot start function is enabled, the LMHN240HV's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Product Compatible With
  • LG LMU36CHV Mini Split Outdoor Condensers
  • LG LMU540HV Mini Split Outdoor Condensers
  • Product Note
    This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
    • Remote Control and Cable - A remote control (PREMTC00U recommended) and the PZCWRC1 remote control cable are required for each individual concealed duct unit in your system.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

Specifications

LMHN240HV
specs product image PID-45723
General Information
Type
Concealed Duct
Product Line
Multi F
Product Sub-line
High-Static Ducted
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
UPC
048231369701
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
688 CFM
Minimum Air Flow
530 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 35/48 Inches
Product Width
46 13/24 Inches
Product Depth
17 35/48 Inches
Product Weight
91 Pounds
Shipping Weight
101 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
