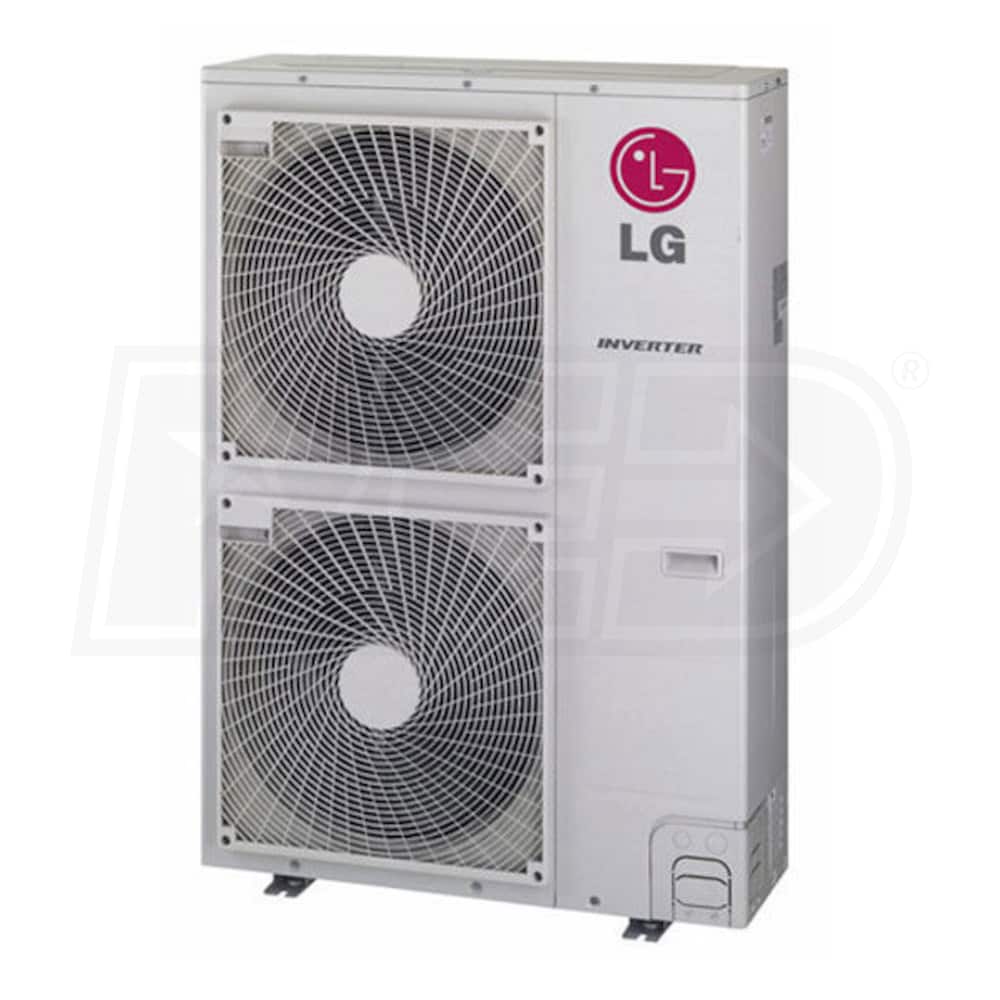

LG LMU360HHV
LG LMU360HHV
Hover to zoom
1 of 1

LG - 36k BTU - LGRED° Heat Outdoor Condenser - For 2-5 Zones

Model:

LMU360HHV

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View LG - 36k BTU - LGRED° Heat Outdoor Condenser - For 2-5 Zones
Model:
LMU361HHV
$3,686.00
$3,501.70
Only 4 In-Stock
LG - 36k BTU - LGRED° Heat Outdoor Condenser - For 2-5 Zones
LG - 36k BTU - LGRED° Heat Outdoor Condenser - For 2-5 Zones
Model: LMU360HHV
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 2
These accessories are required to properly setup/install this product.
Length (ft)
$365.00
In-Stock
Optional Accessories 7
$77.00
In-Stock
$45.00
In-Stock
$394.00
Only 3 In-Stock
Model: ZLABGP04A
$126.00
Only 4 In-Stock
$146.00
In-Stock

Features

    This product requires two or more compatible indoor units for functionality.

    LG continues to demonstrate global leadership in innovation and technology with their advancements in home comfort solutions. The LGRED° Heat ductless heat pump system boasts superior heating performance in extreme cold weather climates. The powerful LMU360HHV outdoor condenser works with LG indoor units to provide the maximum amount of comfort control for your home. With several air flow options, quiet operation, and weather protection technology, the LGRED° Heat system is accommodating to nearly every home.
  • Inverter Technology
  • LG's inverter technology features an electronic expansion valve and a variable speed compressor that carefully regulates refrigerant flow, reducing energy consumption and providing consistent, accurate temperatures without overshooting or short-cycling.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU360HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Integrated Base Pan Heater
  • Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
  • Quiet Design
  • Thanks to a brushless direct current motor and a twin rotary compressor, the LMU360HHV is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
  • Product Compatible With (Up to 46k Total BTU)
  • LG LMN Wall Mounted Mini Split Indoor Units
  • LG LSN Wall Mounted Mini Split Indoor Units
  • LG LMAN Wall Mounted Art Cool Gallery Mini Split Indoor Units
  • LG LAN Wall Mounted Art Cool Mirror Mini Split Indoor Units
  • LG LMCN Ceiling Cassette Mini Split Indoor Units
  • LG LMDN Concealed Duct Mini Split Indoor Units
  • Product Note
    This product requires at least two compatible LG mini split indoor units and the following accessories for installation:
    • Branch Box - An LG branch box is required to connect this condenser to the LG mini split indoor units.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

Specifications

LMU360HHV
specs product image PID-78125
Overview
Product Category
Mini Split System Components
UPC
482313819010
General Information
Type
Outdoor Condenser
Product Line
LGRED Heat
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Base Pan Heater Included
Yes
Color
Warm Gray
Performance
Cooling BTU
36000
Cooling Power Input
2400 Watts
Heating Power Input
2930 Watts
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
30.2 Amps
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
475.7 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
54 17/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
223 Pounds
Shipping Weight
250 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

Reviews

(17)
LG LMU360HHV Reviews & Ratings
Customer Photos and Videos
review image 1
review image 2
Customer Rating
4.94
(17 Ratings)
5
(16)
4
(1)
3
(0)
2
(0)
1
(0)
Great Experience
By Dwayne C
Michigan
Review Posted 07/27/2022
eComfort was extremely helpful from start to finish. They educated me in laymen's terms so I could work with my installer ahead of time. I highly recommend this company and will use them again in the future.
Dwayne C Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Id Buy It Again
Cons:
None
Verified Buyer
Verified Buyer
Extremely satisfied customer
By Dhananjay S.
Colonia, New Jersey
Purchased 07/31/2020 |
Review Posted 10/06/2020
Very good experience and this is the unit I was looking for
Very hard to find in Nee Jersey
Dhananjay S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Features, High Quality, Quiet
Verified Buyer
Verified Buyer
Very pleased with product and company
By Mike P.
Deland, Florida
Purchased 10/07/2019 |
Review Posted 11/23/2019
Installation of the LG units went fairly easy. I purchased the split zone for two rooms. I hired a local AC guy to help with the installation and an electrician to run the power. Once everything was connected and turned on the power, we were all amazed of how quiet the inside and outside units were when turned on. I mounted the outside unit on a bracket and anchored it to the exterior wall. No vibration at all. Super smooth and just whisper quite. Living in Florida where the summers are hot, these units did a remarkable job in cooling each room. Very impressed. We are moving into our winter season, anxious to see how the perform when it starts to cool down.
Mike P. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LMU18CHV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Definitely a top of the line unit
By Kelli B.
Rapid City, South Dakota
Purchased 07/01/2019 |
Review Posted 09/04/2019
Bought this unit to replace an older Sanyo system. The one part that needs to be noted is that the branch box distributor is required. This adds some complexity to the install compared to a simple system where you connect the indoor units directly to the outdoor unit.
That being said, once it's all installed it works very well and the branch box options allow you to configure more options and placements of indoor units than otherwise possible.
Also should note that during install I made the cardinal sin and accidentally hooked a power lead to a com line. I assumed I'd have fried the whole system... Not a problem, flipped the wires and it all fired right up. Good job LG.
Kelli B. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Price, Features, High Quality, I'd Buy It Again
Cons:
complex install
Verified Buyer
Verified Buyer
I have done Mitsubishi and LG and I like LG better
By Eric L.
Houston, Texas
Purchased 08/02/2019 |
Review Posted 08/26/2019
This is a well manufactured unit. My only complaint is that the installation instructions were written in a foreign language and translated to English. The translation was not perfect. The only other gripe is that the unit has no neutral wire so all you have is two hots and a ground. No big deal but I had to do some research to sort it out because the directions were not well translated.
Eric L. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LMU36CHV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Great System
By Calvin P.
Lemon Cove, California
Purchased 06/06/2019 |
Review Posted 07/19/2019
Easy to follow directions, easy set up. Worked exactly as they said it would. My neighbor is impressed and will be buying one soon
Calvin P. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LMU36CHV.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
incredible quiet
By John C.
Victor, West Virginia
Purchased 01/22/2019 |
Review Posted 05/10/2019
First off, let me tell you that this was not without hiccups. We hooked all the units up and there was a short on one of the circuit boards. eComfort sent the replacement parts out right away. When we got the units up and running, we thought the compressor wasn't on. Turns out it is unbelievably quiet. It's under our back porch and standing over it, you have the really listen to hear it. Very similar in sound to a refrigerator. We are very happy with this unit.
John C. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LMU24CHV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Easy to use
By Katie M.
Washington
Purchased 08/24/2018 |
Review Posted 10/30/2018
We are really enjoying having this unit. It does a great job of keeping our small space warm or cool. When the temperature drops to the low 30's it seems to struggle to regulate and makes lots of noise in the process. Other then that it is a fairly quite machine.
Katie M. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LSN120HXV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Why did I wait so long?
By Mike Y.
Wichita Falls, Texas
Purchased 09/15/2018 |
Review Posted 10/30/2018
Took to long to make this purchase. Quite, efficient. Would highly recommend to anyone that wants a quality unit.
Mike Y. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LSN243HLV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Everything was shipped the same day or the next day was easy to
By Edgar S.
Franklin, North Carolina
Purchased 07/26/2018 |
Review Posted 08/23/2018
Unit works great Anthony went over everything with me and everything came within a few days he was very helpful with the purchase of this unit my hat off to you for your help my wife and I are more than pleased with this system thanks everyone involved in this purchase 😇we love it!
Edgar S. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the LMU18CHV.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker

How-To Articles

How to Pick the Perfect Mini Split Ceiling Cassette Unit
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
eComfort Boosts Comfort and Energy Savings at Historic Home
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Suspended Indoor Unit
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
LG - 36k BTU - LGRED° Heat Outdoor Condenser - For 2-5 Zones
LG LMU360HHV
Customer Review Images
