LG - 7k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.3 kW Electric Heat - 208-230V

Model:

LP073HDUC

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
LG - 7k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.3 kW Electric Heat - 208-230V
LG - 7k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.3 kW Electric Heat - 208-230V
Model: LP073HDUC
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Comfort is one of the most important aspects in the hospitality industry and LG packaged terminal air conditioners (PTAC) are the perfect addition to give you the edge over the competition. Thanks to top-of-the-line components and an advanced design, LG PTACs are among the most efficient and quietest units on the market today. The LP073HDUC is a heat pump PTAC that is packaged with 3.3 kW of supplemental electric heat, making it perfect for all climates. When it comes to guest-controlled air conditioning, an LG PTAC is the best choice.
  • User-Friendly Display
  • All of the LP073HDUC's operations can be handled from the convenient display on the unit. Operation mode, fan speed, temperature, and timer functions are easily set through the control panel's push buttons.
  • Energy Saving Mode
  • When energy saving mode is active, the unit's fan will only run during cooling or heating operations. This prevents continuous fan use which drains energy without affecting the temperature.
  • Long Lasting Filters
  • LG PTAC units don't just control the temperature, they also clean the air that flows through them. This unit's air filters and vent filter are washable, making it easy to ensure that your guests enjoy ideal air quality.
  • Quiet Comfort
  • The LP073HDUC employs a split motor configuration that shifts the noisier operations to an outdoor motor. Both the indoor and outdoor motors are brushless direct current motors, which are renowned for their low levels of electrical and mechanical noise.
  • Gold Fin Protection
  • The corrosive effects of outside air can damage a PTAC and drastically reduce the lifespan of the unit. LG's PTAC units are treated with their Gold Fin corrosion-inhibiting coating to improve their longevity and durability.
  • Multiple Thermostat Options
  • Each LG PTAC comes with a thermostat connection kit allowing you to use a thermostat of your choosing. LG also offers wireless and wired remote options that have easy-to-use digital displays and will control all of your PTAC's functions.

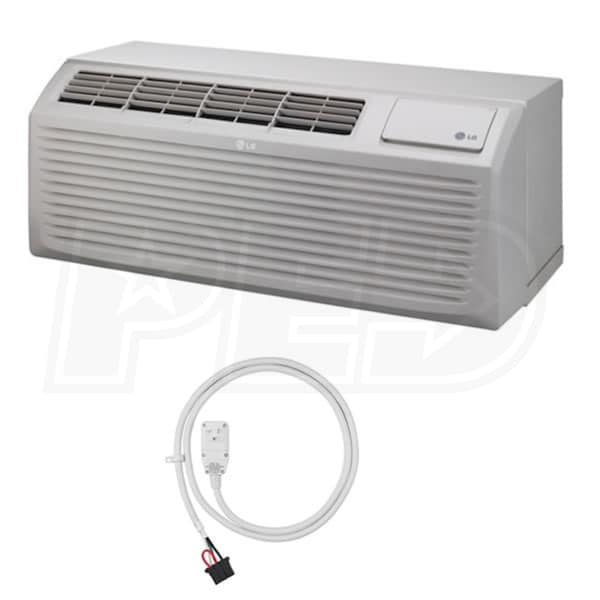

  • Product Includes
  • LP073HDUC PTAC
  • AYUH2120 Electrical Cord and Plug
  • Product Includes
    • (1) LG - 7k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Electric Heat - 208-230V (LP073HDUC)
    • (1) LG - 20A Electrical Cord and Plug - 3.5 kW Heater - 208-230V (AYUH2120)
    Product Note
    Capacity and power consumption specification values are listed for 230V applications. Please consult the submittal within the Manuals tab for 208V values. PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.

Specifications

Product Includes
  • (1) LG - 7k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Electric Heat - 208-230V (LP073HDUC)
  • (1) LG - 20A Electrical Cord and Plug - 3.5 kW Heater - 208-230V (AYUH2120)
LP073HDUC
specs product image PID-71555
General Information
Type
PTAC
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating + Cooling
Electric Heat
Yes
Interface
Buttons
Additional Model Numbers

LP073HDUC-3.5, LP073HDUC

Performance
Cooling BTU
7000
Cooling Capacity
7300 BTU
Heating Capacity
6400 BTU
Electric Heat Capacity
3.3 kW
Moisture Removal
1.7 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.3
Cooling Power Input
550 Watts
Maximum Air Flow
270 CFM
Heating Power Input
520 Watts
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
61 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
21 Inches
Product Weight
95 Pounds
Shipping Weight
109 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
LP073HDUC
General Information
Type
PTAC
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Interface
Buttons
Performance
Cooling BTU
7000
Cooling Capacity
7300 BTU
Heating Capacity
6400 BTU
Moisture Removal
1.7 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.3
Cooling Power Input
550 Watts
Maximum Air Flow
270 CFM
Heating Power Input
520 Watts
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
61 dB
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
21 Inches
Product Weight
109 Pounds
Shipping Weight
109 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
AYUH2120
General Information
Type
Power Cord
Product Line
AYUH
Performance
Heating Capacity
11200 BTU
Electrical Data
Recommended Breaker Size
20 Amps
Dimensions
Power Cord Length
4 Feet
