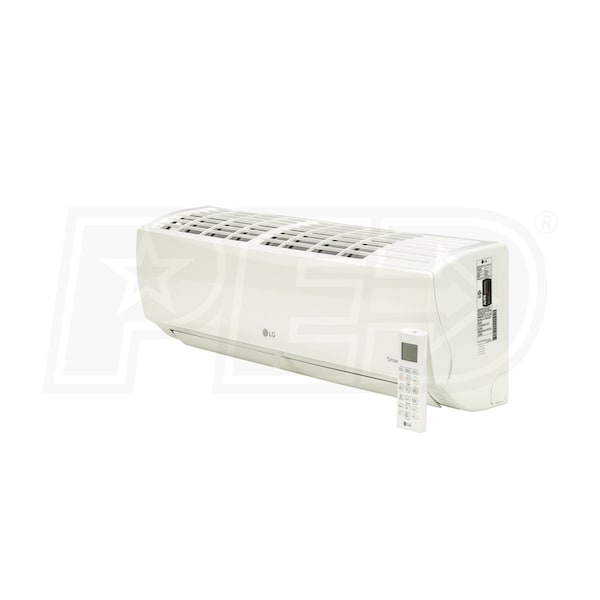

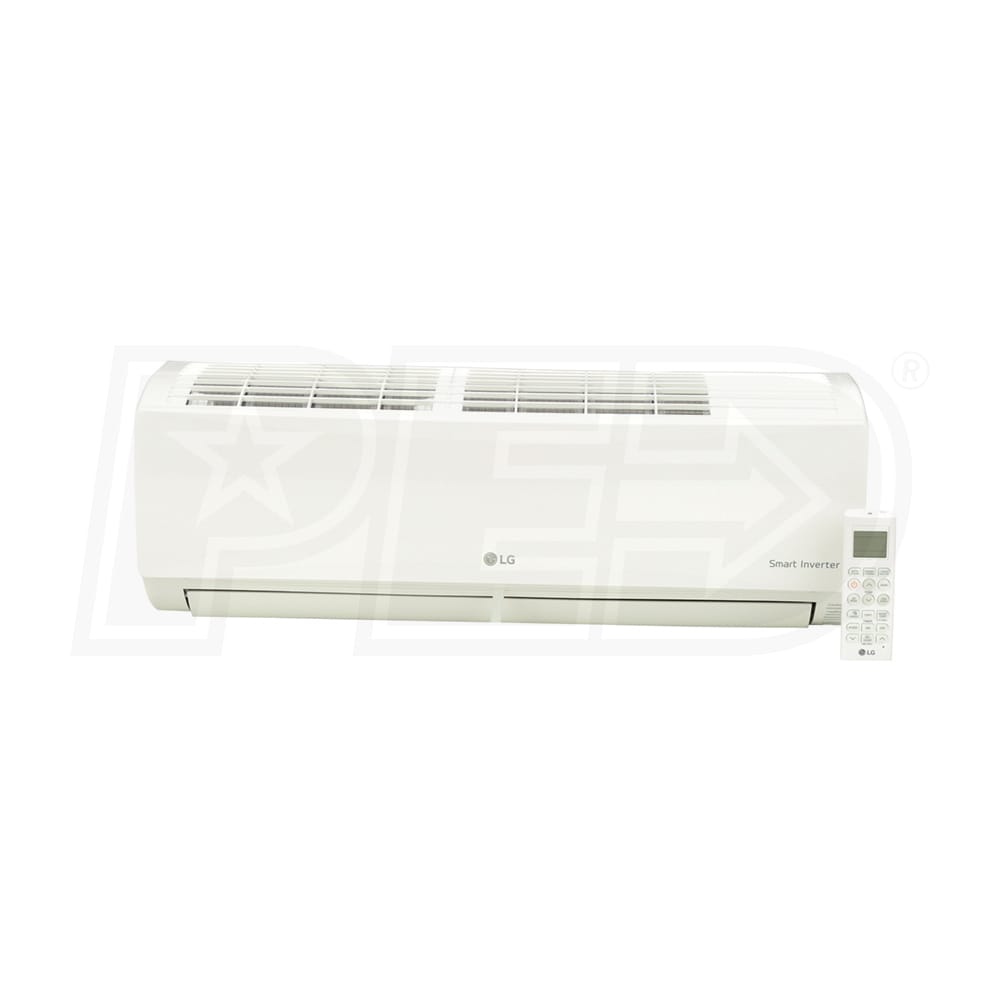

LG Mega - 24k BTU - Wall Mounted Unit - Single Zone Only

Model:

LSN240HEV2

Write A Review

Product Discontinued

Sorry, this product is no longer available.

Try this product instead

LG Mega Wall Mounted Unit - Single-Zone - 24k BTU - R-32

Model:

KNSAC241A

$699.00

$664.05

In-Stock

LG Mega - 24k BTU - Wall Mounted Unit - Single Zone Only

Model: LSN240HEV2

Product Discontinued

Accessories

Features

Specifications

Reviews

How-To Articles

Manuals

Expert Recommended Accessories Selected by Ken, our Expert

Optional Accessories 4

Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length

Model: MSCABLE144-25

Length (ft)

$45.00

In-Stock

Mueller - 1/4" x 1/2" Insulated Mini Split Line Set - 15' Length - Factory Flared

Model: MLS141212-15

Length (ft)

$160.00

In-Stock

Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing

Model: DRAINTUBING-15

Length (ft)

$18.00

LG Simple Remote Controller Wired

Model: PREMTC00U

$167.00

In-Stock

Features

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LSN240HEV2 is a part of LG's low-profile wall mounted Mega product line. With a variety of operating modes and helpful functions, this well-rounded mini split indoor unit is an easy choice for any system. This product requires a compatible outdoor condenser for functionality.

Air Flow Options
This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
Quiet Design
The LSN240HEV2 can operate at volumes as low as 32 dB thanks to a combination of cutting edge components. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow.
Self-Cleaning Coil
The LSN240HEV2 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
Jet Temperature Control
Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
Automated Operation
Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
Sleep Mode
With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
Dehumidify
LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
Improved Air Quality
The LSN240HEV2 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.

Product Note

This product requires a compatible LG mini split outdoor condenser and the following accessories for installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.

LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.

California residents see

Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

LSN240HEV2

General Information

Type

Wall Mounted

Product Line

Mega

Operating Mode

Heating and Cooling

Multi-Zone Compatible

Refrigerant Type

R-410A

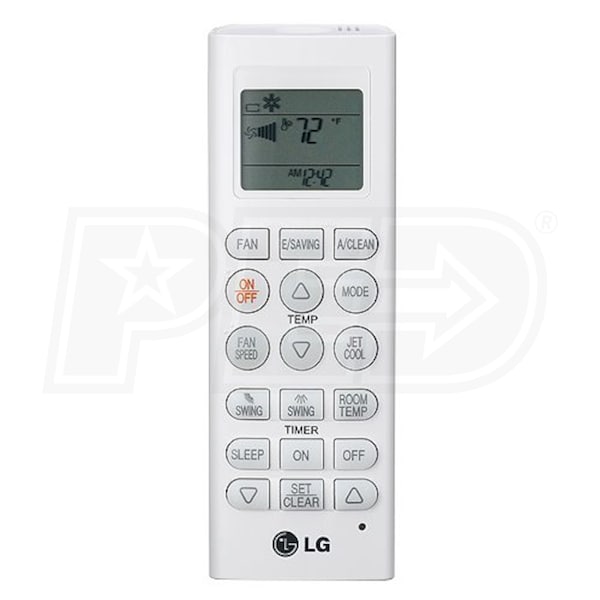

Remote Control

Wireless

Indoor Unit Size(s)

Installation Location

Indoor

UPC

048231388092

Performance

Cooling BTU

24000

Heating BTU

22000

Maximum Air Flow

689 CFM

Minimum Air Flow

371 CFM

Minimum Sound Level

32 dB

Maximum Sound Level

48 dB

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Dimensions

Gas Connection Size

1/2 Inch

Liquid Connection Size

1/4 Inch

Product Height

12 13/16 Inches

Product Width

40 9/16 Inches

Product Depth

9 13/16 Inches

Product Weight

28 Pounds

Shipping Weight

32 Pounds

Certifications

ETL Listed

Yes

UL Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

Warranty Information

Parts Warranty

5 Years
