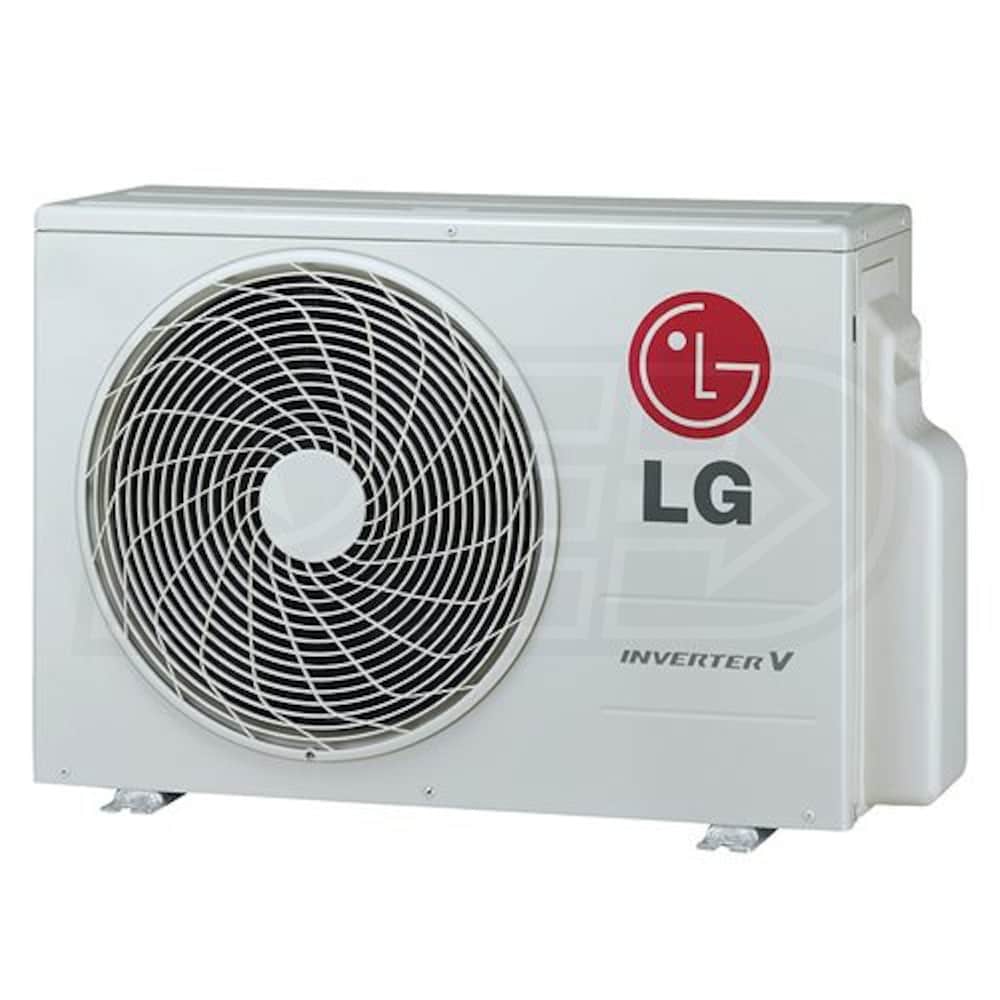

LG - 12k BTU - High-Efficiency Outdoor Condenser - Single Zone Only
Model:
LSU120HSV5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
- Gold Fin Protection
- To ensure the reliability and longevity of the LSU120HSV5's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Low Ambient Operations
- This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
- Quiet Design
- Thanks to a brushless direct current motor and a twin rotary compressor, the LSU120HSV5 is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.
LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LSU120HSV5 is a single zone mini split outdoor condenser capable of supplying ductless heating and cooling to any room in your home. With inverter technology and quiet operation this well-rounded mini split outdoor condenser is an easy choice for any system. This product requires a compatible indoor unit for functionality.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for installation:
Specifications
LSU120HSV5
General Information
Type
Outdoor Condenser
Product Line
High-Efficiency
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
UPC
048231385749
Performance
Cooling BTU
12000
Heating BTU
13600
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10 Amps
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
82 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 1/2 Inches
Product Width
30 5/16 Inches
Product Depth
11 5/16 Inches
Product Weight
75 Pounds
Shipping Weight
79 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Reviews
(7)
LG LSU120HSV5 Reviews & Ratings
Excellent Product
By Sharmistha B
Gilbert, Arizona
Purchased 03/09/2021 |
Review Posted 04/06/2021
Excellent product!
Sharmistha B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Quiet, Price, Light Weight
Cons:
temperatued settings doesnt represent actual temp
Great product good for man cave and garages
By Robian S.
Myrtle Beach, South Carolina
Purchased 05/05/2020 |
Review Posted 07/07/2020
This product is great bought it a few months ago and it’s great for the heat we have here in the south. Still waiting to see how it performs in the winter months but doing great so far.
Robian S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, High Quality
Cons:
Expensive
Excellent value
By Patrick M.
Mountain Home, Arkansas
Purchased 02/12/2019 |
Review Posted 03/06/2019
Excellent quality. Best bang for the buck
Patrick M. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Easy to use
By Katie M.
Washington
Purchased 08/24/2018 |
Review Posted 10/30/2018
We are really enjoying having this unit. It does a great job of keeping our small space warm or cool. When the temperature drops to the low 30's it seems to struggle to regulate and makes lots of noise in the process. Other then that it is a fairly quite machine.
Katie M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Why did I wait so long?
By Mike Y.
Wichita Falls, Texas
Purchased 09/15/2018 |
Review Posted 10/30/2018
Took to long to make this purchase. Quite, efficient. Would highly recommend to anyone that wants a quality unit.
Mike Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
excellent product i love it
By Nart J
Prospect Park, New Jersey
Purchased 05/10/2018 |
Review Posted 06/23/2018
It's great I love it. Nice and quiet and really excellent, I am glad I bought LG
Nart J Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Exceeded Expectations, High Quality
Very good product
By Peter D.
Friday Harbor, Washington
Purchased 02/14/2018 |
Review Posted 04/20/2018
Easy install.
Peter D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
