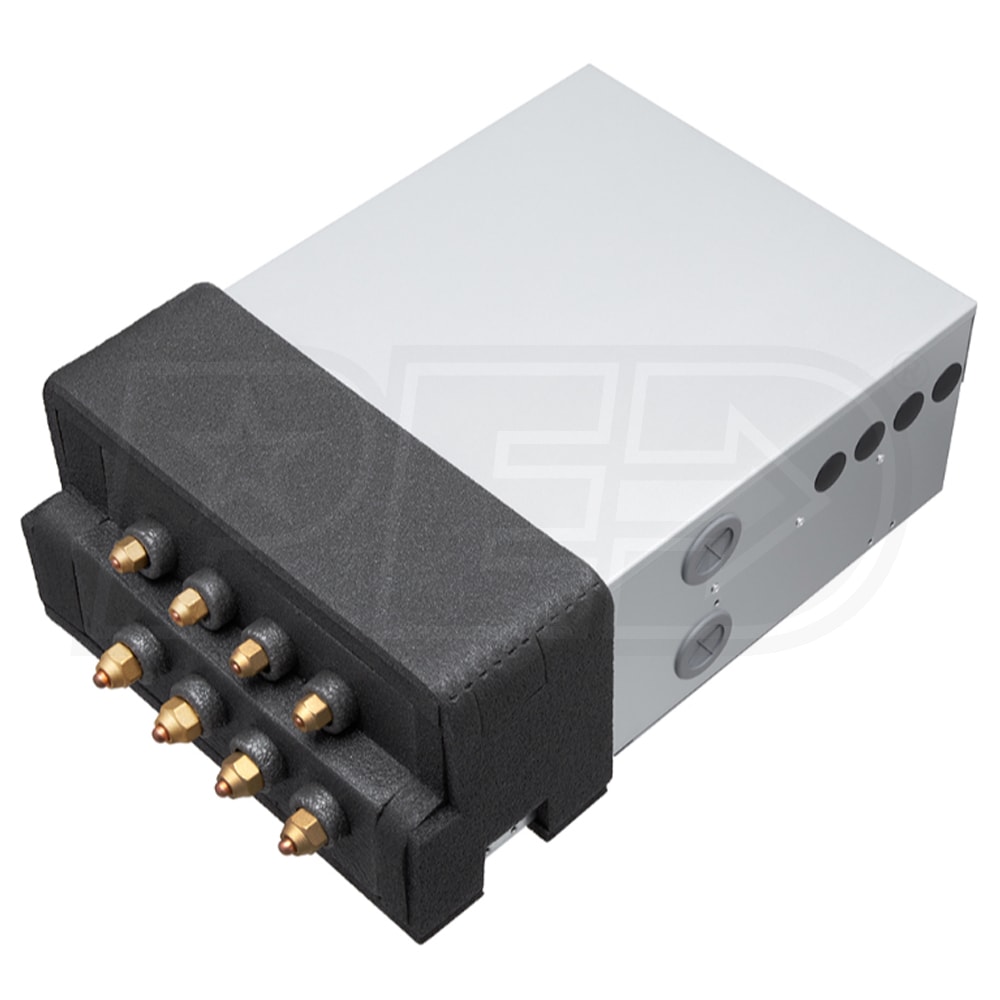

LG PMBD3640ZR
LG PMBD3640ZR
Hover to zoom
1 of 1

LG Multi F - Branch Box - 4 Ports - R-32

Model:

PMBD3640ZR

Write A Review
$609.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Apr 7th
Shipping to43085
synchrony card logo
$102 / Month
Suggested monthly payments with 6 month financing.
LG Multi F - Branch Box - 4 Ports - R-32
LG Multi F - Branch Box - 4 Ports - R-32
Model: PMBD3640ZR
$609.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 1
$146.00
In-Stock

Features

    The PMBD3640ZR is a four port branch distribution unit for select LG Multi F mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the condenser to Multi F mini split indoor units.
  • Simple Installation
  • This branch distribution unit features flared joints to improve the speed and ease of installation.
  • Product Compatible With
  • LG KUMXB481A Mini Split Outdoor Condenser
  • LG KUMXB541A Mini Split Outdoor Condenser
  • LG KUMXB601A Mini Split Outdoor Condenser
  • LG KUMXA361A Mini Split Outdoor Condenser
  • LG KUMXA421A Mini Split Outdoor Condenser
  • LG KUMXA481A Mini Split Outdoor Condenser
  • Product Note
    All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box and from the branch box to the indoor unit.

Specifications

PMBD3640ZR
specs product image PID-161559
General Information
Type
Branch Box
Product Line
Multi F
Product Category
Mini Split Accessories
Ports Quantity
4
UPC
195174090510
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
73000 BTU
Electrical Data
Voltage
208/230 Volts
Power Consumption
97 Watts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
6 7/16 Inches
Product Width
15 3/8 Inches
Product Depth
25 3/8 Inches
Product Weight
19.4 Pounds
Shipping Weight
22.9 Pounds
Certifications
CSA Listed
Yes
