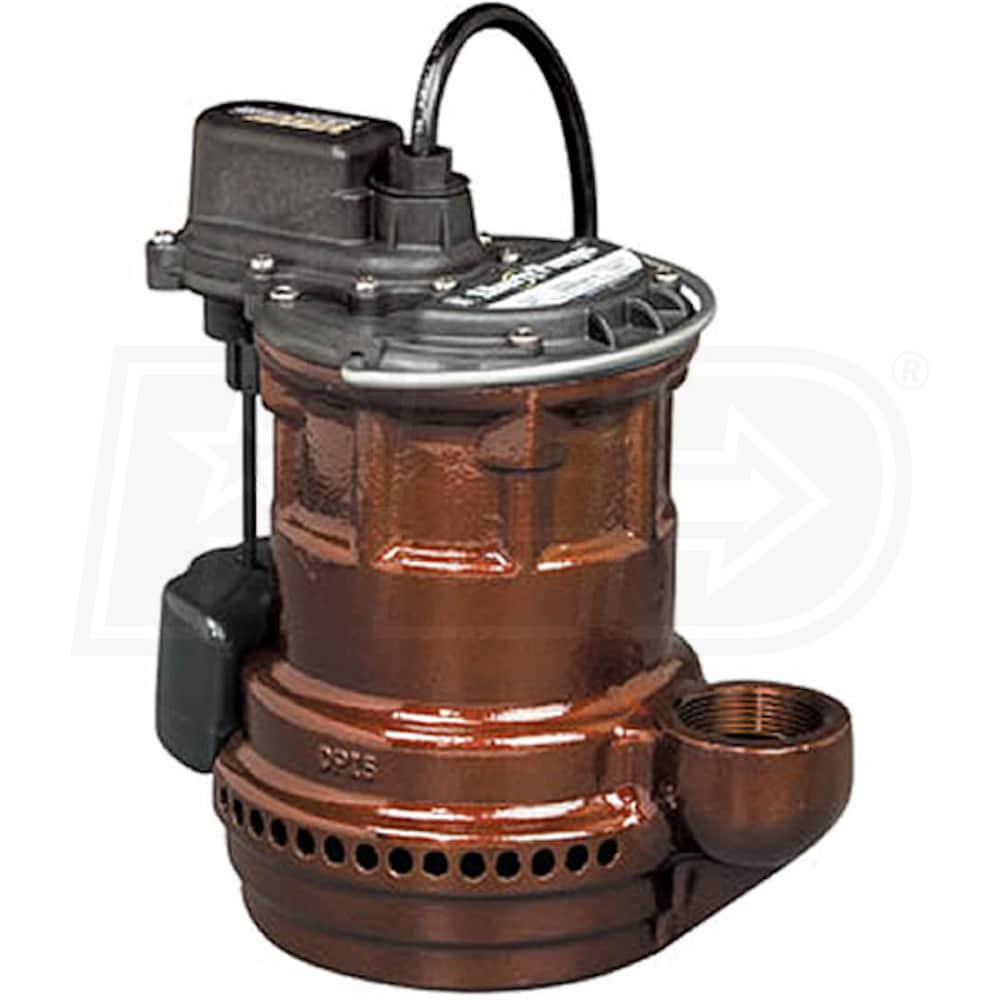

Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model:
247
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Automatic Submersible Cast Iron Sump Pump
- A "workhorse" designed for years of reliable operation
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Magnetically Operated Vertical Float Switch
- Provides automatic operation in sump pits as small as 10-inches
- Rugged, Energy Efficient & Thermally Protected 1/4 HP Motor
- Hermetically sealed, permanently lubricated design
- 8-Vane, Glass Reinforced Thermoplastic Impeller
- Non-cloggy design for superior solid handling (up to 1/4")
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
247
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Float Type
Vertical Float

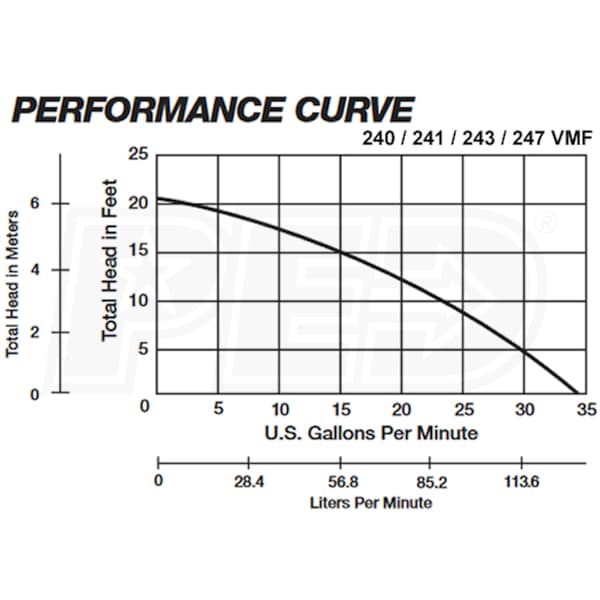

GPH @ 0 feet
2040
GPH @ 5 feet
1800
GPH @ 10 feet
1440
GPH @ 15 feet
900
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Engine
Horsepower
.25 HP
Overview
Product Category
Sump Pump
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
671812002478
