Liberty Pumps 257 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float

Model:

257

Write A Review
$210.75
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
Liberty Pumps 257 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float
Liberty Pumps 257 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float
Model: 257
$210.75
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Submersible Cast Iron Sump Pump
  • A "workhorse" designed for years of reliable operation
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • Rugged, Energy Efficient & Thermally Protected 1/3 HP Motor
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

257
specs product image PID-8573
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Max Head
22 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
UPC
671812002577

Reviews

(200)
Liberty Pumps 257 Reviews & Ratings

Product Q&A

(6)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
How can I prevent mineral deposits from corroding my sump pump in the pit?
Benoit
from Maine
March 28, 2024
How reliable is the magnetic vertical float, and can it be replaced or repaired if it fails in 2-3 years?
Richard K.
from New Jersey
February 03, 2017
This pump requires a 10" diameter basin, but what about depth? Could I use it in a 5 gallon bucket that has an 11 inch diameter, and is 14 inches deep? My window well space is too small for a 22" deep sump basin
B Crotty
from Colorado
July 04, 2016
is the switch replacable & how much thanks
Richard G
from Michigan
December 03, 2014
Considering making the Liberty model 257 my primary sump pump and then making our existing Zoeller an emergency backup. We have a lot of iron in our water. Would the aluminum model 237 be better or worse for high iron content?
Scott S
from Maine
September 08, 2013
What kind of warranty do you have on your pumps?
John
from Pennsylvania
July 03, 2012

How-To Articles

eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Liberty Pumps 257 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float
Liberty Pumps 257
Liberty Pumps 257
Liberty Pumps 257

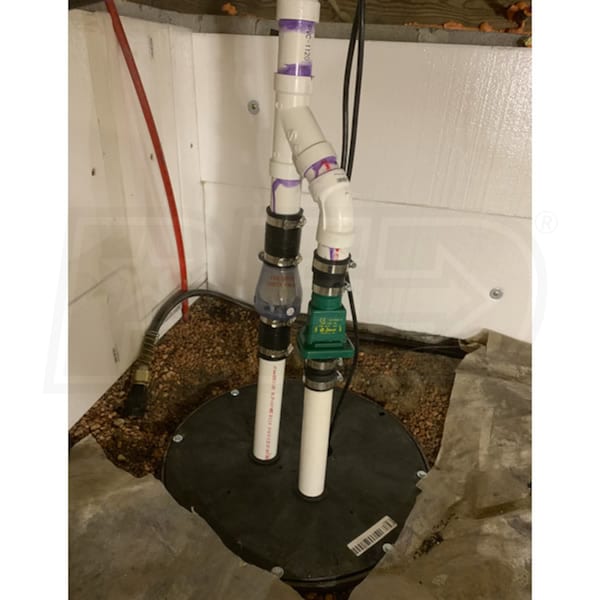

Customer Review Images
