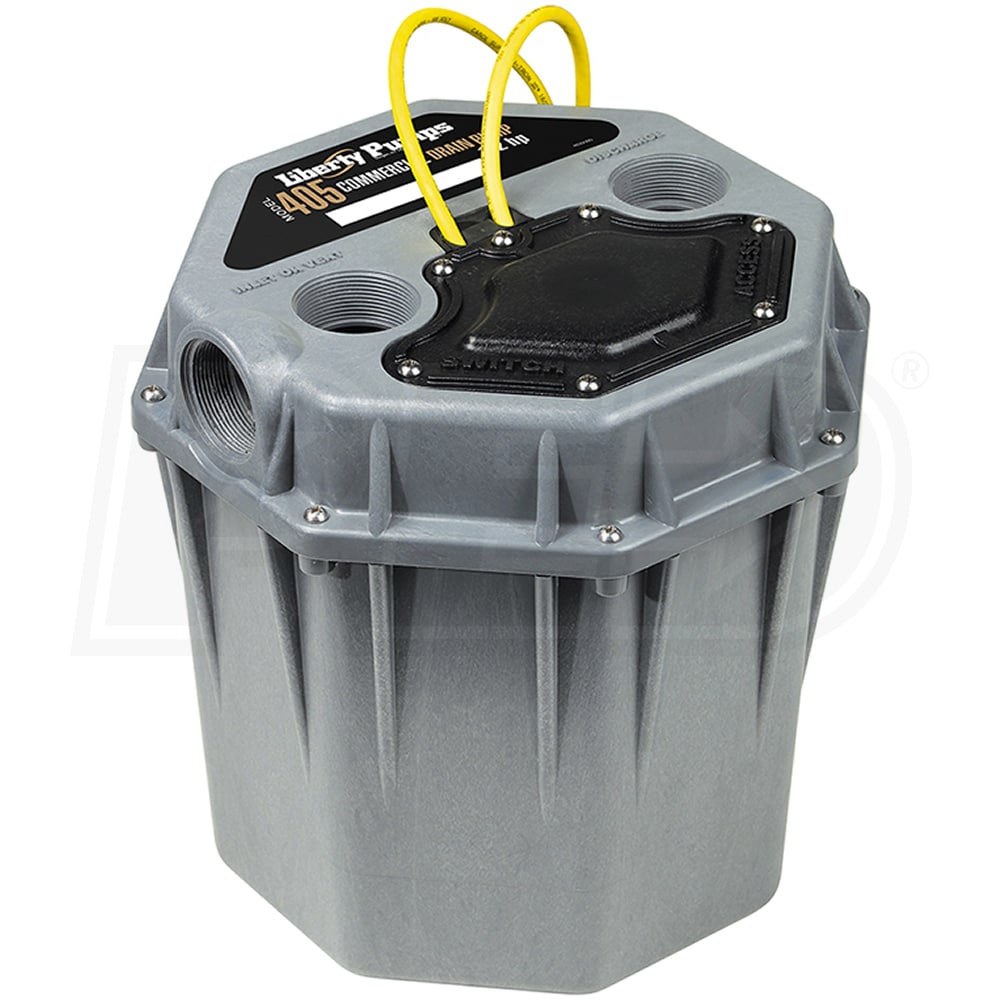

Liberty Pumps 405 - 1/2 HP High-Temperature Commercial Sink/Drain Pump System (2")
Model:
405
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Automatic Commercial High-Temperature Remote Drain Pump System
- Factory pre-assembled for easy installation
- High-Temperature Aluminum Sump Pump
- Designed for high temperature applications (180° F. Max)
- Rugged & Thermally Protected 1/2 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant Polyolefin Basin (14.125" H x 13.75" W)
- Great for bar sinks, dishwashers and commercial sinks
- QuickTree® Technology & Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections & Rubber Gaskets
- Provides a superior, gas-tight seal
- 2" Inlet, Discharge and Vent
- Requires 2" Check Valve (Sold Separately)
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
405
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
7.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
16
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 10 feet
2600
GPH @ 15 feet
2220
GPH @ 20 feet
1920
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
23 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
14.125 Inches
UPC
671812113877
Reviews
(7)
Liberty Pumps 405 Reviews & Ratings
Product Q&A
(3)
Product Questions
Answered by Ken, the eComfort Product Expert
Will this unit be able to pump water into the ceiling space of a suspended ceiling?
Rick
from Wyoming
February 08, 2014
For a sink sump pump installation is their a studor vent or air admittance valve that can vent a sump pump?
Scott D
from Florida
January 21, 2014
For the Liberty 405 model pump system, I see the unit has a " provision " for a stack vent. Is it absolutely necessary to have a vent on this type of pump system? I am using the system to lift kitchen sink drain water to my house drain system approx 3 ft. Thanks.
Scott Sterkel
from Washington
August 30, 2012
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

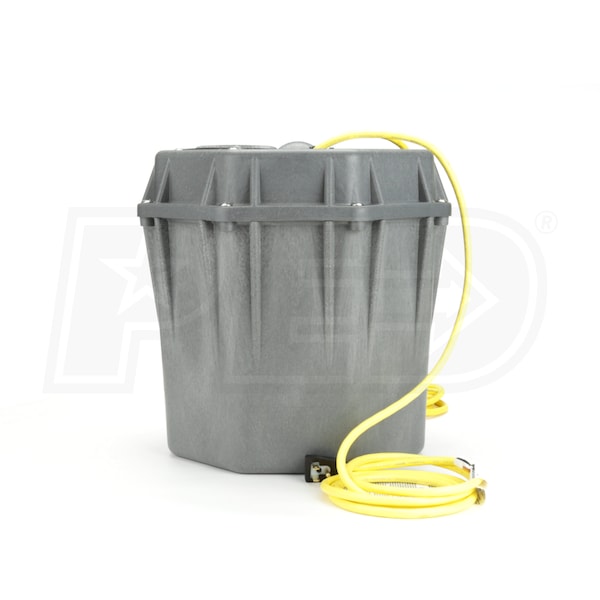

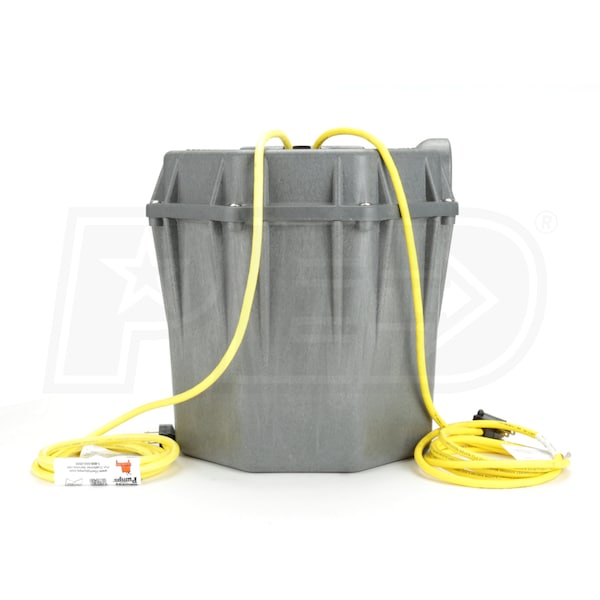

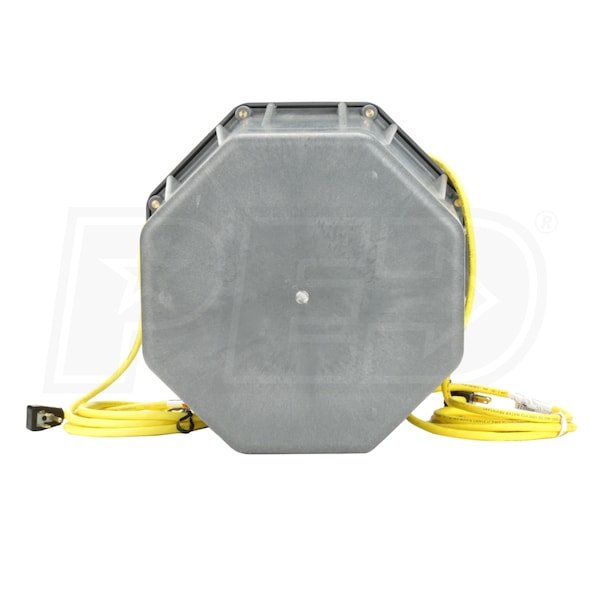

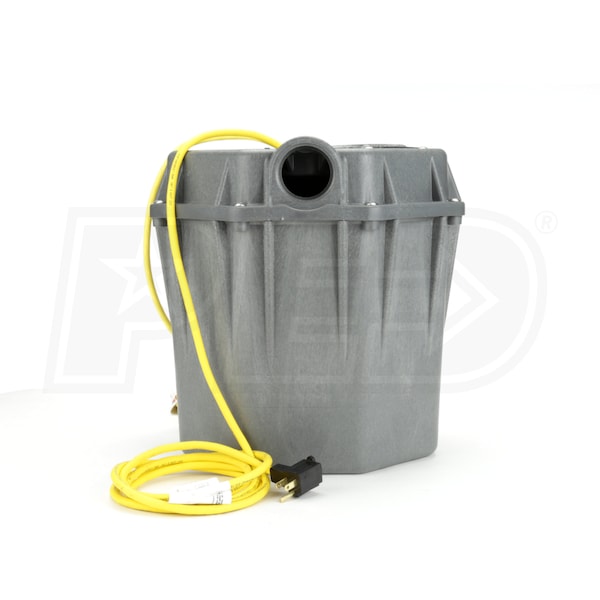

Liberty Pumps 405 - 1/2 HP High-Temperature Commercial Sink/Drain Pump System (2")
