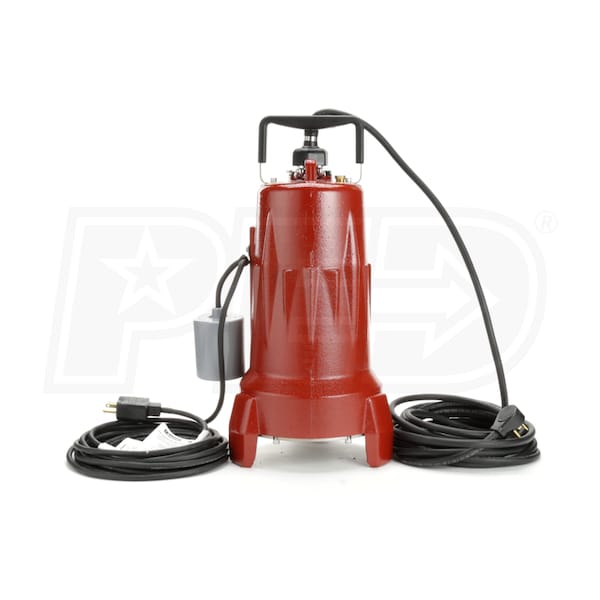

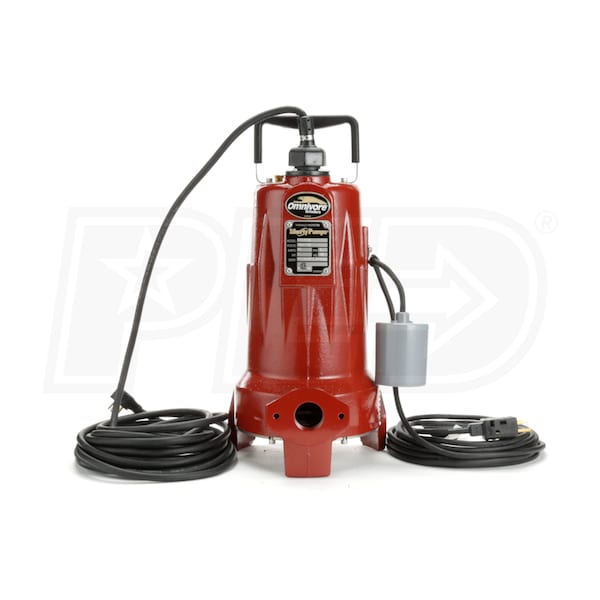

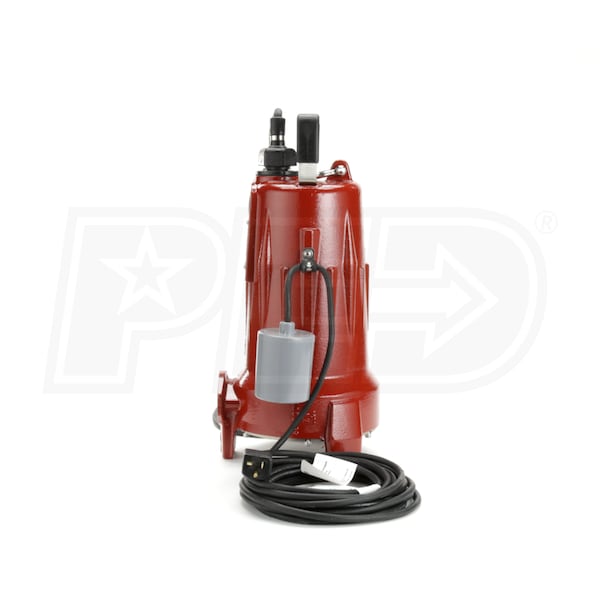

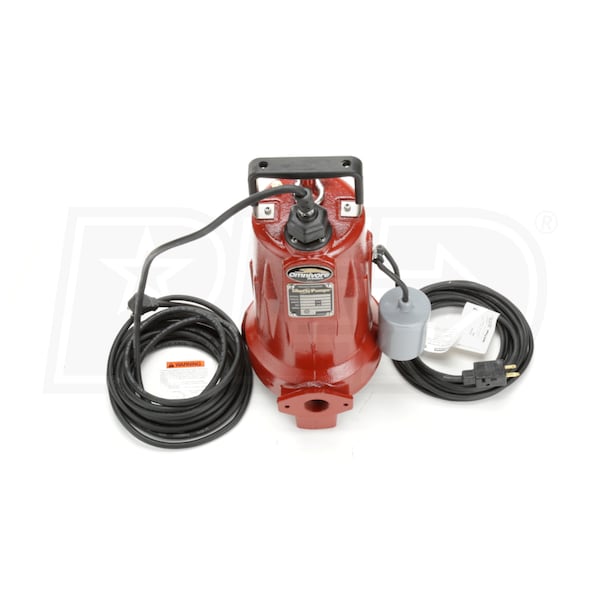

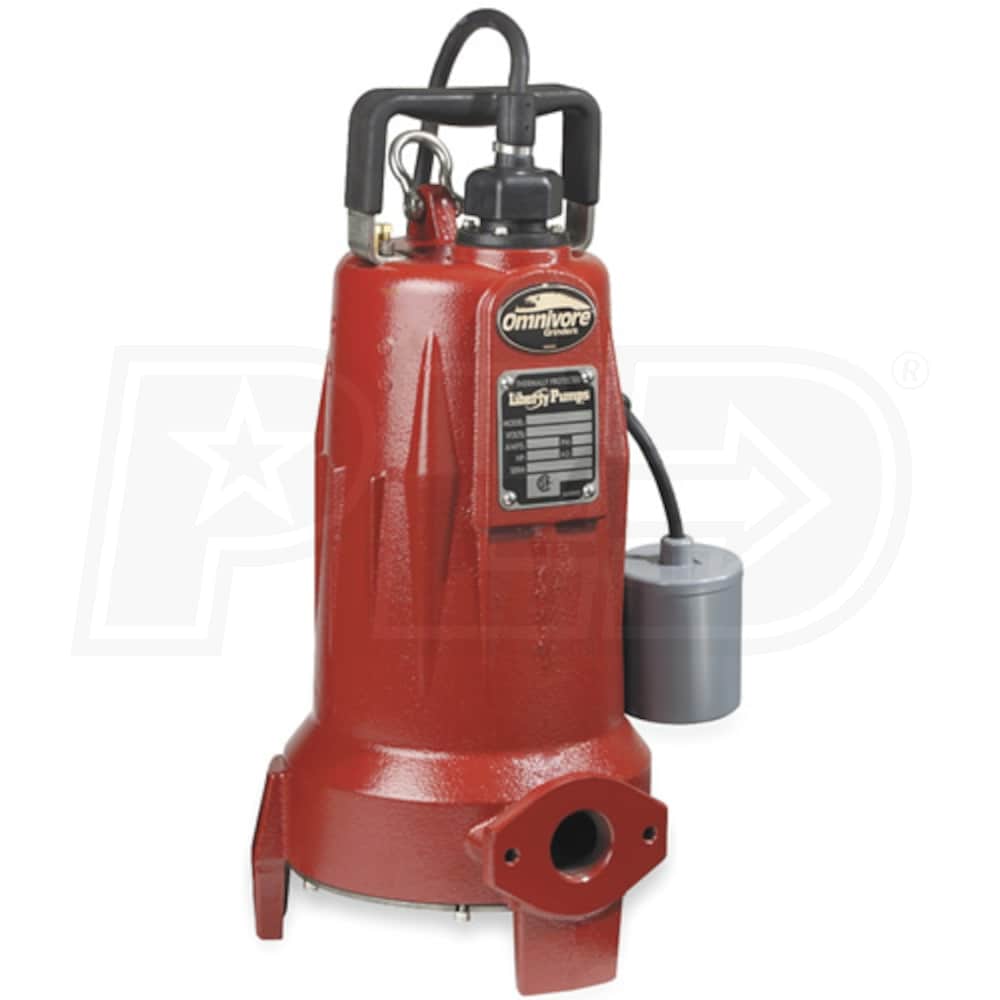

Liberty Pumps LSG202A - 2 HP Omnivore® Grinder Pump w/ Piggyback Tether Float (208/230V)

Model:

LSG202A

Write A Review
$1,949.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Liberty Pumps LSG202A - 2 HP Omnivore® Grinder Pump w/ Piggyback Tether Float (208/230V)
Liberty Pumps LSG202A - 2 HP Omnivore® Grinder Pump w/ Piggyback Tether Float (208/230V)
Model: LSG202A
$1,949.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Sub. Cast Iron Omnivore® Grinder Pump (Up to 100' Lift)
  • For residential/commercial systems w/ high solid content
  • Uni-Body Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 2 HP Motor
  • Hermetically sealed, permanently lubricated design

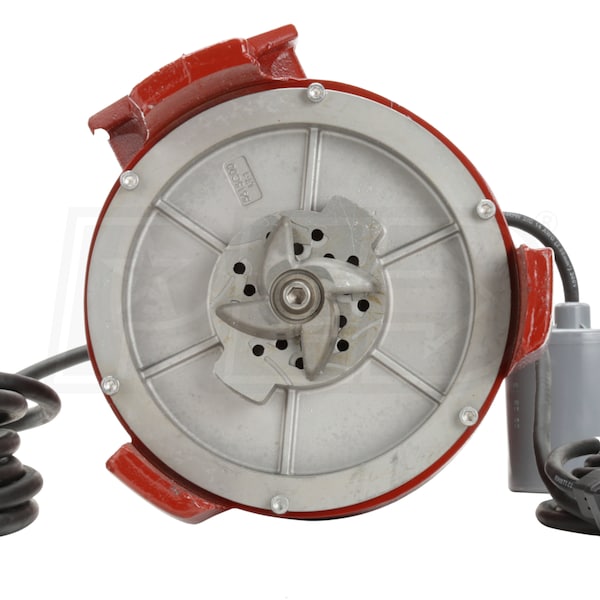

  • V-Slice® Cutter Technology (440 Stainless Steel)
  • Provides improved shredding performance over radial cutters
  • Back Vanes On Impeller & Spiraled Bottom Plate
  • Clog-free volute design provides superior solids clearing
  • Stainless Steel Rotor Shaft w/ Dual Seals
  • Carbon ceramic & Viton® double-lip lower seal for extended life
  • Non-Corrosive Stainless Steel Impeller, Fasteners & Clasp
  • Increases the lifespan of the pump even in the harshest systems
  • Minimizes lifting chain problems over the lifespan of the pump
  • Quick-Disconnect 25' Power Cord w/ 6-20P Plug (208/230V)
  • Liberty suggest a minimum 30-amp breaker for pump circuit
  • (G90) Flange May Be Requried For Installation (Not Included)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

LSG202A
specs product image PID-8644
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt Single-Phase
Running Amps
15
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
53
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch

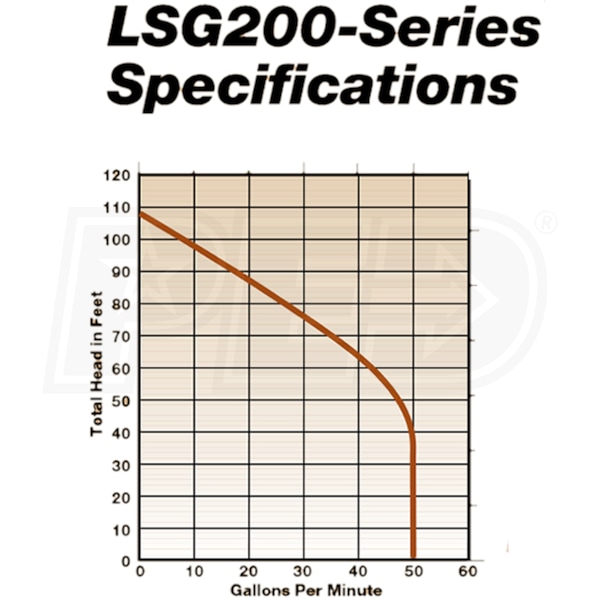

GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
3000
GPH @ 15 feet
3000
GPH @ 20 feet
3000
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Float On
15 Inches
Float Off
8 Inches
Manual Override
Yes
Engine
Horsepower
2 HP
Overview
Product Category
Sump Pump
Weight
86 Pounds
Consumer Warranty
3 Years
Product Width
9.5 Inches
Product Height
19.5 Inches
UPC
671812110173

Reviews

(22)
Liberty Pumps LSG202A Reviews & Ratings

Product Q&A

(4)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
What requirements are needed to power this pump with a generator during a power outage?
Devin
from Missouri
March 22, 2017
IS THERE A LIST OF ITEMS NOT TO BE FLUSHED DOWN THE TOILET TO PREVENT PROBLEMS WITH THE GRINDER PUMP?
MJ
from Texas
September 25, 2014
HI Jim. Do I need to use a grinder pump for a basement restroom (Toilet sink only) with a lift from bottom of tank to sewer 6 feet
Eric
from Pennsylvania
January 08, 2014
I am trying to decide between the LSG202A and the LSG202M. It is for our home. We have a 3600 square foot house and 4 people live here. We are replacing the 110 pump that was put in when the house was built as the house is on grade that is lower than the city sewage line. We did not have an alarm or controller on the old system. I understand that the LS202A is automatic and the LS202M is manual and requires purchase of a separate controller. What would be the rationale for getting one versus the other?
Kathy P
from South Carolina
April 11, 2013
