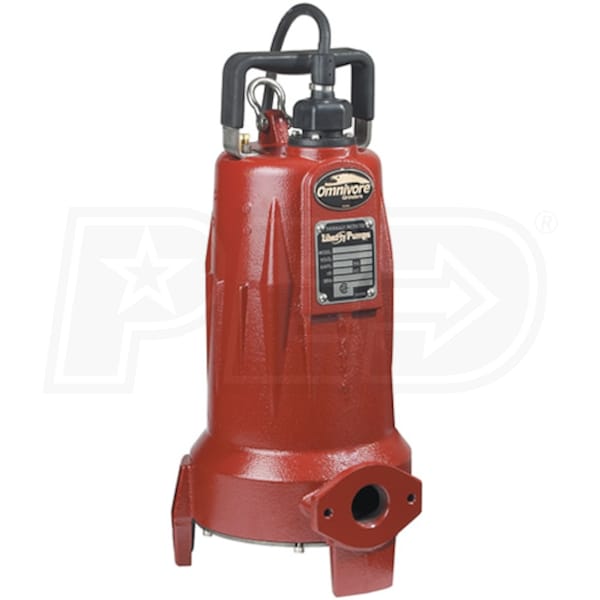

Liberty Pumps LSG202M - 2 HP Omnivore® Grinder Pump (Non-Automatic - 208/230V)

Model:

LSG202M

Write A Review
$1,881.75
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

Liberty Pumps LSG202M - 2 HP Omnivore® Grinder Pump (Non-Automatic - 208/230V)
Liberty Pumps LSG202M - 2 HP Omnivore® Grinder Pump (Non-Automatic - 208/230V)
Model: LSG202M
$1,881.75
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Submersible Cast Iron Omnivore® Grinder Pump (Up to 100' Lift)
  • For residential/commercial systems w/ high solid content
  • Requires control box or float switch for automatic operation
  • Uni-Body Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Rugged & Thermally Protected 2 HP Motor
  • Hermetically sealed, permanently lubricated design
  • V-Slice® Cutter Technology (440 Stainless Steel)
  • Provides improved shredding performance over radial cutters
  • Back Vanes On Impeller & Spiraled Bottom Plate
  • Clog-free volute design provides superior solids clearing
  • Stainless Steel Rotor Shaft w/ Dual Seals
  • Carbon ceramic & Viton® double-lip lower seal for extended life
  • Non-Corrosive Stainless Steel Impeller, Fasteners & Clasp
  • Increases the lifespan of the pump even in the harshest systems
  • Minimizes lifting chain problems over the lifespan of the pump
  • Quick-Disconnect 25' Power Cord w/ 6-20P Plug (208/230V)
  • Requires a minimum 30-amp breaker for pump circuit
  • 3-Year Limited Warranty
  • (G90) Flange May Be Requried For Installation (Not Included)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

LSG202M
specs product image PID-8645
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Running Amps
15
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
53
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
No Switch

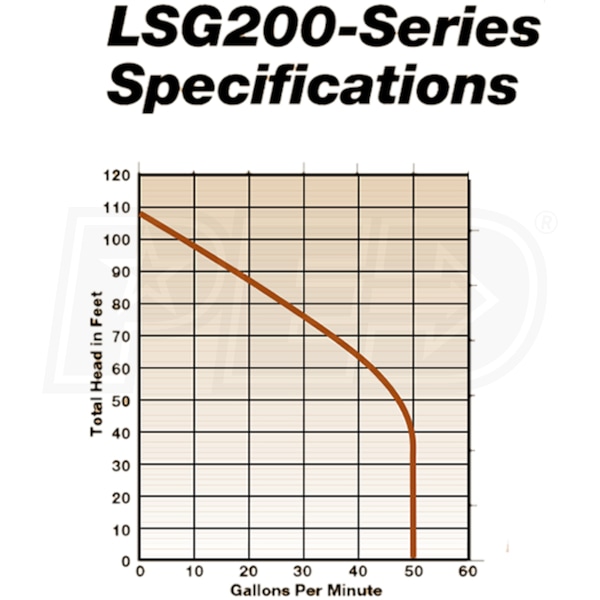

GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
3000
GPH @ 15 feet
3000
GPH @ 20 feet
3000
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
2 HP
Overview
Product Category
Sump Pump
Weight
89 Pounds
Consumer Warranty
3 Years
Product Width
9.5 Inches
Product Height
19.5 Inches
UPC
671812110180
Additional Model Numbers

LSG202-M, LSG202M
