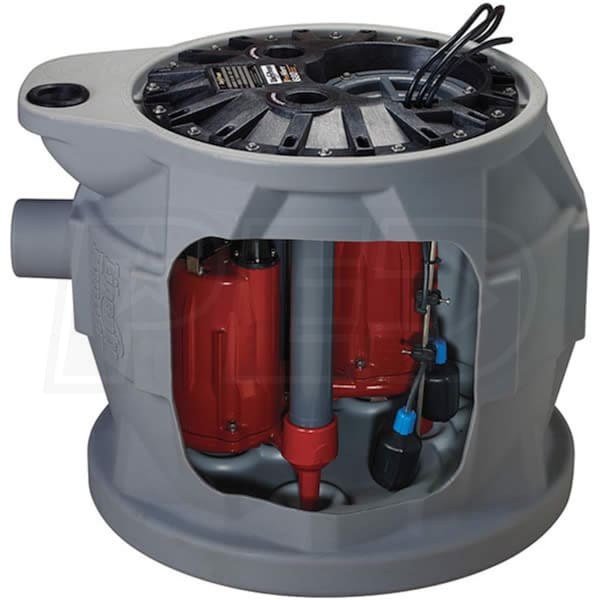

Liberty Pumps P682XPRG101 - 1 HP ProVore® 680 Duplex Grinder Pump System (24"x24" 16-Bolt Cvr.)
Model:
P682XPRG101
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- ProVore® 680 Series Residential Duplex Grinder System
- Compact design, fully assembled from the factory for easy install
- 24" x 24" (46-Gallon) Polyethylene Basin w/ Molded 4" Inlet
- 16-Bolt Cover - ***IAPMO Listed - Will Pass 10' Stack Test***
- Integrally molded anti-flotation collar & torque stops (pump)

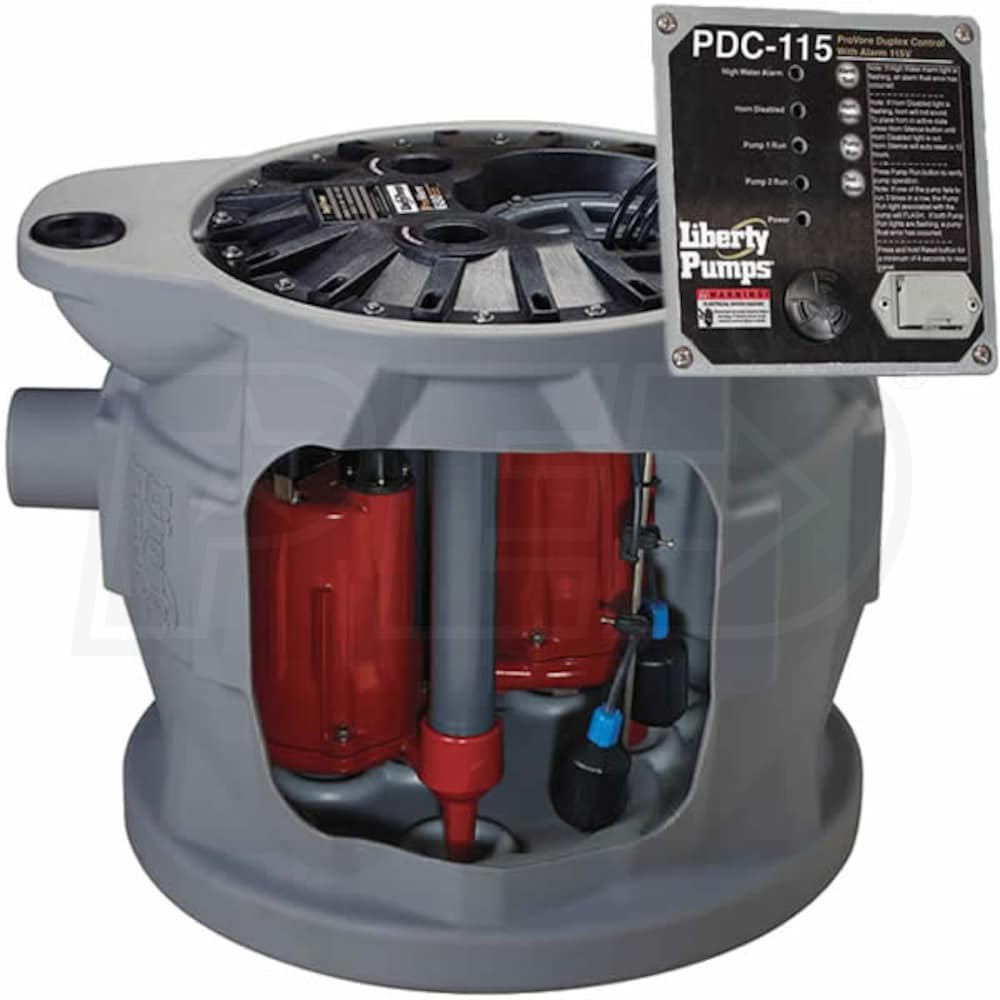

- PDC-115 Duplex Pump Controller (NEMA 1)
- Alternates operation - equalizing wear & extends pump life
- Plug-in ready, QT mounted switch/alarm floats & Power/Run indicators
- (2) 1 HP ProVore® Residential Grinder Pump 115V (PRG101)
- A workhorse for residential & light commercial sewage apps.
- Epoxy Powder Coated Cast Iron Construction & SS Fasteners
- Designed to provide years of reliable performance
- V-Slice® Cutter Technology (440 SSl) & 2-Vane Cast Iron Impeller
- Provides improved shredding performance over radial cutters
- Keeps debris away from seal area to minimize risk of internal damage
- QuickTree® Technology & Separate Access Cover w/ Rubber Seals
- Allows easy removal of floats without pulling the pump & integrated seals
- Audible/Visual Alarms w/ 9V Alarm Backup
- Automatic 6 hour run limiter prevent run-dry conditions
- 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
P682XPRG101
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
151 Pounds
Consumer Warranty
3 Years
Product Length
29.625 Inches
Product Width
29.625 Inches
Product Height
24 Inches
UPC
671812125252
