Liberty Pumps PC257-441 - 1/3 HP Combination Primary (257) & Battery Backup Sump Pump System
Model:
PC257-441
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
5
$210.75
In-Stock
$309.99
In-Stock
$153.00
Model: B12V27-WET
$319.00
Only 2 In-Stock
Features

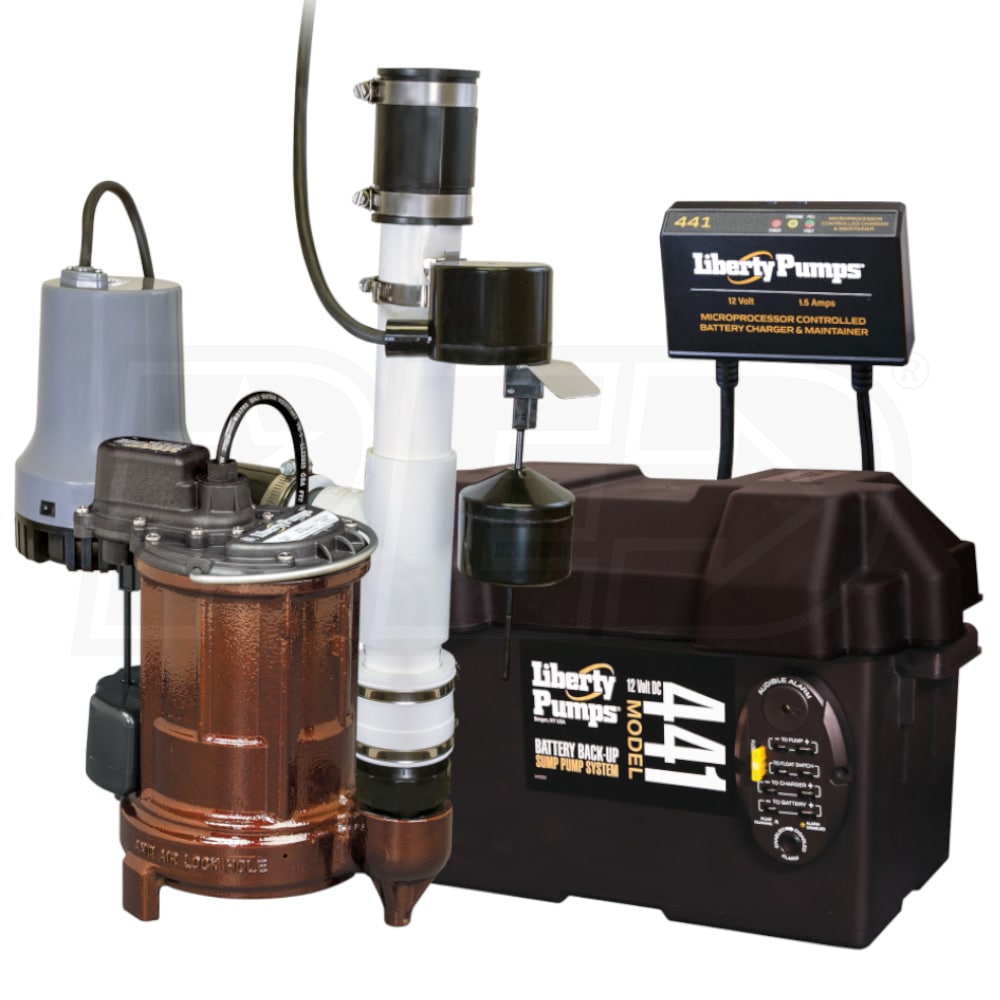

Liberty Pumps PC257-441 - 1/3 HP Combination Primary (257) & Battery Backup Sump Pump System
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Compact Sump Pump Combo System - Fits 15" Diameter x 18" Deep Pits & Larger
- Pre-assembled primary pump and battery backup system
- Fully Automatic Operation - Provides Uninterrupted Pumping
- Keeps the water moving during an outage or primary pump failure

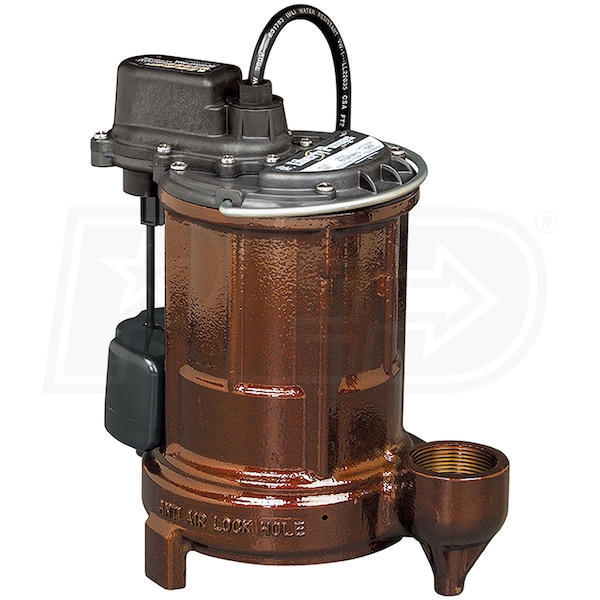

- 1/3 HP Cast Iron Primary Pump w/ Vertical Float Switch (257)
- Rugged, energy efficient & thermally protected 1/3 HP motor
- UNI-BODY casting w/ epoxy coated power coat finish
- Magnetically operated vertical float switch
- High-Flow 12V Battery Back-Up Pumps Up to 2640 GPH @ 0' (441)
- Corrosion-resistant, thermoplastic construction
- Reliable vertical float switch independent of primary pump
- Advanced 5-Stage Charging System
- Outperforms 'trickle' chargers found on many backup systems
- Sophisticated algorithm continually tests charging process
- Audible Alarm & Light
- Advises of backup pump operation
- Easily Connects to 1-1/2" Discharge Line
- Includes primary and backup check valves
- Requires One Type 27 or 31 Marine Battery (Sold Separately)
- 3-Year Limited Warranty
- For Indoor Use Only
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
PC257-441
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
15 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Backup GPH @ 0 feet
2640
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Backup GPH @ 5 feet
1920
Backup GPH @ 10 feet
1260
Backup GPH @ 15 feet
600
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
35 Pounds
Consumer Warranty
3 Years
UPC
671812118353
Accessories
Wi-Fi enabled
No
Reviews
(21)
Liberty Pumps PC257-441 Reviews & Ratings
Customer Rating
4.52
(20 Ratings)
5
(14)
(14)4(3)
(3)3(2)
(2)2(1)
(1)1(0)
(0)
Liberty Sump Pump
By Blake C
Michigan
Purchased 08/17/2020 |
Review Posted 04/07/2023
This pump has been in service for around 2 years. I will note primary check valve failed within a few weeks of use. It is very cheap. Secondary pump check valve failed within months of the primary. The pumps themselves are good quality and reliable. I ended up pulling the pump and redesigning with the use of Zoeller Quiet Check Valves and have had quiet trouble free operation ever since.
Blake C Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
High Quality, Reliable
Cons:
Bad Check Valves
Check Valves Both Failed Within A Month
By Ron S.
Kansas City, Missouri
Purchased 03/18/2021 |
Review Posted 06/09/2021
This unit came recommended by Sump Pumps Direct (SPD).
It was simple and quick to install and initially ran perfectly. My sump only fills during heavy rains, so the unit was not operating under undue stress
Within a month both check valves failed and the only recourse from SPD was receiving two replacement check valves. The unit was allowing water to discharge back into the sump almost as fast as it was pumping water outside.
The entire idea was to purchase a "plug & play" unit. Now I will have to spend more time than the initial install to figure out how to break apart the unit, replace the check valves and put it all back together.
Not a fan. Disappointed.
It was simple and quick to install and initially ran perfectly. My sump only fills during heavy rains, so the unit was not operating under undue stress
Within a month both check valves failed and the only recourse from SPD was receiving two replacement check valves. The unit was allowing water to discharge back into the sump almost as fast as it was pumping water outside.
The entire idea was to purchase a "plug & play" unit. Now I will have to spend more time than the initial install to figure out how to break apart the unit, replace the check valves and put it all back together.
Not a fan. Disappointed.
Ron S. Does Not Recommend This
Was this review helpful?
Expert Response
Very sorry to hear you've experienced check valve failure on this system. We rarely see any issues with these systems, but as with anything mechanical, issues can happen. Since these are the slip-on type check valves, removal/replacement is extremely easy and only requires a screwdriver.
Ken D.
eComfort Product Expert
Rating Breakdown
4/5
1/5
1/5
1/5
Cons:
Low Quality, Unreliable, Durability
Great System!!!
By Josh B.
Auburn, Maine
Purchased 08/03/2020 |
Review Posted 10/06/2020
Perfect system. Easy to install. Liberty keep up the good work!
Josh B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Easy To Use, Id Buy It Again, Features
This Pump Works Great
By Thomas R.
Alpena, Michigan
Purchased 05/09/2019 |
Review Posted 04/14/2020
Installed pump this winter It has worked great this spring Yesterday we lost power due to high winds for four and a half hours the back up pump alarm sounded and back up pump worked super.
Thomas R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Durable, Reliable
Disappointed
By Joshua Z
Lisle, Illinois
Purchased 07/02/2019 |
Review Posted 08/10/2019
I purchased this pump as I have a small sump pump pit that measures 15" in diameter (a true 15" diameter cylinder, no tapering) and 20" deep and the Zoeller pumps with a backup pump require a bigger pit.
Strike #1 - My frustration started with the fact that after I installed the pump and tested it, I noticed water spewing out the backup pump. I pulled the pump and the flapper piece was never installed in the check valve. I was able to pick up the flapper piece from Sump pumps direct for free, but I'm not impressed by the lack of quality control from Liberty.
Strike #2 - This pump explicitly states that it is for small pits, size 14" or more. Unfortunately, this pump goes off constantly and runs for only 3 seconds at a time. I have pulled the pump several times and added patio blocks under it, but the pump kicks out the water too quickly and there is no way to adjust the vertical float. The float has a very small range. My old pump had a pressure switch and would kick on when the connected drain tiles were approximately half full. Even with 5" of patio blocks beneath it, this Liberty pump kicks on with even a little bit of rain. I now have to send another $85 on a hydro check switch.
After buying this Liberty pump kit, a $300 battery, and now a new switch, I'm out $1,100 and not sure this was a good purchase.
Strike #1 - My frustration started with the fact that after I installed the pump and tested it, I noticed water spewing out the backup pump. I pulled the pump and the flapper piece was never installed in the check valve. I was able to pick up the flapper piece from Sump pumps direct for free, but I'm not impressed by the lack of quality control from Liberty.
Strike #2 - This pump explicitly states that it is for small pits, size 14" or more. Unfortunately, this pump goes off constantly and runs for only 3 seconds at a time. I have pulled the pump several times and added patio blocks under it, but the pump kicks out the water too quickly and there is no way to adjust the vertical float. The float has a very small range. My old pump had a pressure switch and would kick on when the connected drain tiles were approximately half full. Even with 5" of patio blocks beneath it, this Liberty pump kicks on with even a little bit of rain. I now have to send another $85 on a hydro check switch.
After buying this Liberty pump kit, a $300 battery, and now a new switch, I'm out $1,100 and not sure this was a good purchase.
Joshua Z Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
3/5
Pros:
Quiet
Cons:
Low Quality, Expensive, Float switch has limited range
Great Heavy Duty Made In The USA Pump
By David T.
Plainfield, Illinois
Purchased 05/23/2019 |
Review Posted 06/22/2019
Great product and people.
David T. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Durable, I'd Buy It Again
Needs Some Fine Tuning
By Bill J.
POINT ROBERTS, Washington
Purchased 10/01/2018 |
Review Posted 10/22/2018
Looks like a good solid pump combination but has a couple of flaws in assembly. In the instruction it stresses not to put the battery below the control board but only gives you about 16 inches of wire to run between them. A little more wire would be good. Also the plug on the main pump and the plug on the charger both have the plus at a right angle to the wire which makes it very difficult to use the same power outlet box without an aadapter of sorts. It is a very quiet solid pump.
Bill J. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Price, Quiet, High Quality
Liberty Pumps PC257-441
By Robert D.
Wappingers Falls, New York
Purchased 08/22/2018 |
Review Posted 09/15/2018
So far so good, easy installation, Also had some other questions and called Liberty Pumps. They answered quickly and were able to answer my questions. Feel much better with the battery backup.
Robert D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Easy To Use, Exceeded Expectations, I'd Buy It Again
Great Product, Great Value!
By David T.
LaGrange Park, Illinois
Purchased 05/25/2018 |
Review Posted 07/13/2018
This is a great combo sump pump! Very high quality parts at a good price. If you want the extra bells of phone connectivity get the upgraded charging system but I didn't find that necessary. Very easy to install with basic skills. Works great and emptied my pit quickly.
David T. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Quiet, Durable, High Quality, I'd Buy It Again
Very Satisfied
By Thomas R.
Wallingford, Pennsylvania
Purchased 09/18/2016 |
Review Posted 01/15/2018
I bought this unit in September 2016 and installed it myself. All of the components are very high quality. It has been in place for about 15 months. The unit is very quiet and it is more than adequate for pumping up and out of my basement. I have given it an excellent rating because of its overall quality and value for the price.. I do have two comments and suggestions for the company.
First, the battery charger for the backup battery has its circuitry built into the plug head that plugs into the outlet. That plug is very large and heavy and could fall out of the outlet. I would like to see the battery charger have a 2 or 3 foot cord that plugs into the outlet. Second, the connector block that provides the switching between between AC and the battery could be larger and have better connectors with longer wires. It must be mounted very close to the battery and that limits flexibility in the installation.
First, the battery charger for the backup battery has its circuitry built into the plug head that plugs into the outlet. That plug is very large and heavy and could fall out of the outlet. I would like to see the battery charger have a 2 or 3 foot cord that plugs into the outlet. Second, the connector block that provides the switching between between AC and the battery could be larger and have better connectors with longer wires. It must be mounted very close to the battery and that limits flexibility in the installation.
Thomas R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality
Product Q&A
(3)
Product Questions
Answered by Ken, the eComfort Product Expert
Does this back up pump have similar specs to the Main 257 pump?
Zack T.
from Michigan
March 28, 2017
I'm confused about battery specification for this. Your site says not to use AGM battery, but Liberty's site says you can. Why the difference in advice? Thank you.
Dennis H
from Virginia
September 01, 2016
If the 120 v pump can't keep up it sounds as if the battery backup pump will kick in---but the units share a common pipe so how can you add water /flow to an already maxed out pipe?? Would this not just increase head pressure on the battery pump causing it to work even harder????
Mark F
from Wisconsin
April 10, 2013
