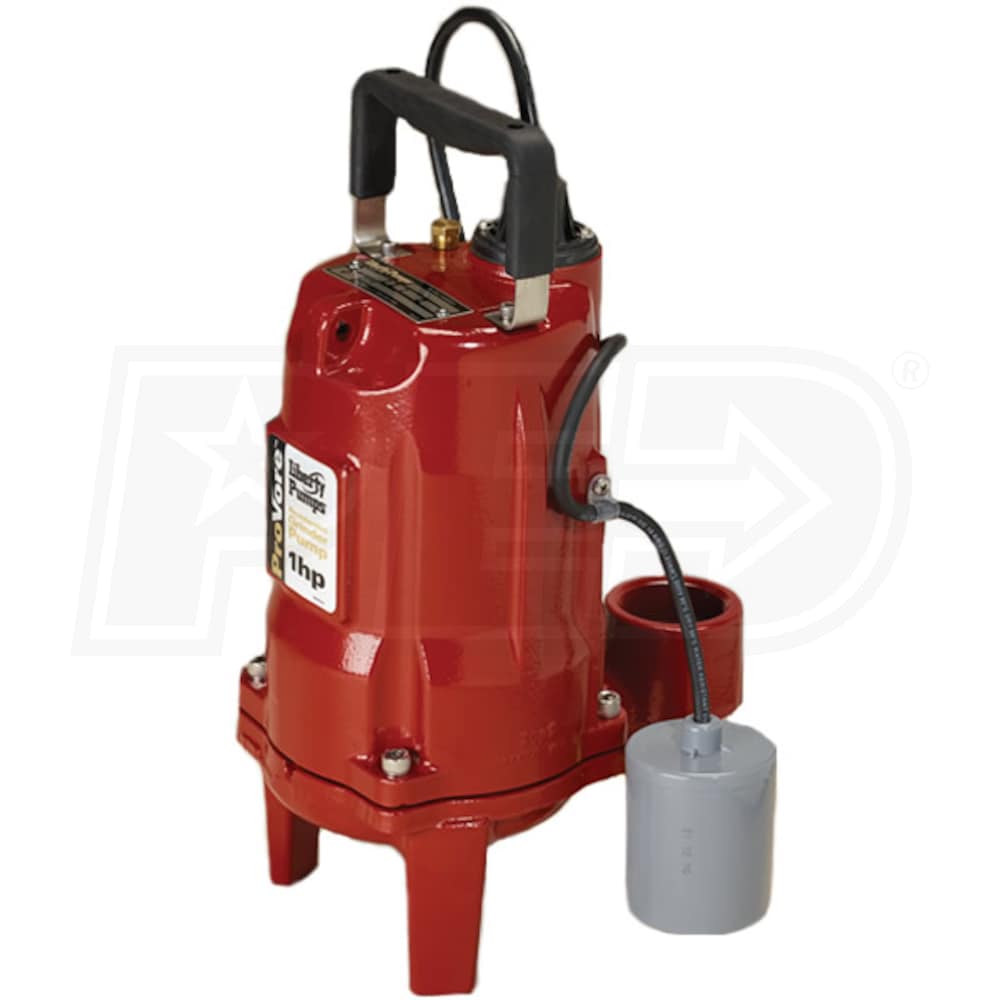

Liberty Pumps PRG101A - 1 HP ProVore® Residential Grinder Pump (2") w/ Piggyback Tether Float

Model:

PRG101A

Write A Review
$1,307.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Liberty Pumps PRG101A - 1 HP ProVore® Residential Grinder Pump (2
Liberty Pumps PRG101A - 1 HP ProVore® Residential Grinder Pump (2") w/ Piggyback Tether Float
Model: PRG101A
$1,307.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Submersible Cast Iron ProVore® Grinder Pump (115V)
  • 2-Inch Discharge designed for residential sewage applications
  • Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides relialbe automatic operation in residential sump pits
  • Rugged & Thermally Protected 1 HP Motor
  • Hermetically sealed, permanently lubricated design
  • V-Slice® Cutter Technology (440 Stainless Steel)
  • Provides improved shredding performance over radial cutters
  • Stainless Steel Rotor Shaft w/ Unitized Silicon Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • 2-Vane Cast Iron Impeller
  • Keeps debris away seal area to minimize risk of internal damage
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

PRG101A
specs product image PID-10636
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Piggy-Back Tether Switch

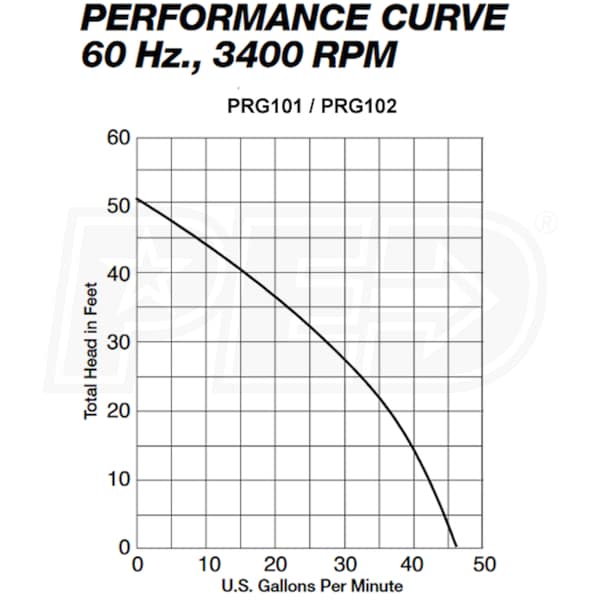

GPH @ 0 feet
2760
GPH @ 5 feet
2700
GPH @ 10 feet
2580
GPH @ 15 feet
2400
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
12-16 Inches
Float Off
6 Inches
Manual Override
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
58 Pounds
Consumer Warranty
3 Years
Product Length
11 Inches
Product Width
7.125 Inches
Product Height
17.625 Inches
UPC
671812121261

Reviews

(38)
Liberty Pumps PRG101A Reviews & Ratings

Product Q&A

(3)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
What is the voltage on this equipment?
Lynne
from Maryland
March 29, 2017
Hi Jim, how long can the 2" discharge line be? in other words how far can the pump be located from the drain that will drain by gravity, pitch. I am planning to install Liberty Pumps PRG101A - 1 HP ProVore® Residential Grinder Pump (2") w/ Piggyback Tether Float about 60 feet away from the house where eventually I plan to connect discharge pipe. the difference in elevation is about 4 feet but its about 60 feet away. is this pump going to work, or any other pump?? is there a min or max the discharge line should be before connecting to main house drain?? TIA Jim!!!
Zygmunt
from California
April 17, 2014
What Is the volt of Model PRG101A
Jack P
from Indiana
May 08, 2013
