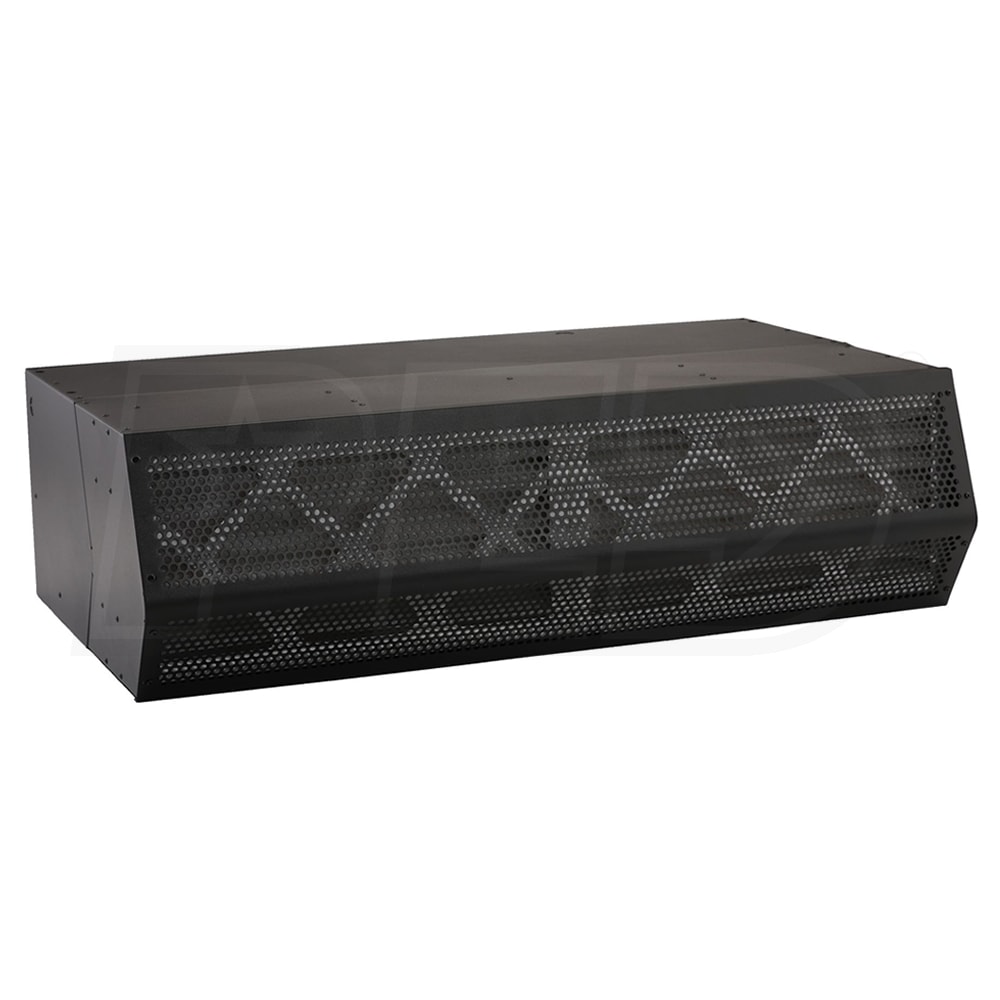

Mars Standard Series with HCP - 36" Unheated Air Curtain - 115V
Model:
STD236-1UA-OB-HCP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- HEPA Filter
- The Standard series with HCP features a HEPA filter rated 99.99% per ASHRAE (0.3 micron) and meets UL Standard 900.
- Applications
- Ideal for use at test labs, hospitals, small waiting rooms and for food storage and processing facilities.
- Strong and Sleek
- The Standard series features 1/2 horsepower motor in a low profile design, providing power ideal for a multitude of customer-facing and industrial applications.
- LEED Points
- The Mars Standard series helps you achieve a green building design and contributes to LEED points.
- Easy Installation
- Mounting holes and key hole slots are provided for wall and overhead mounting.
- Durable Cabinet
- With sufficient strength for attaching to the wall without intermediate support, the Standard series features a strong, durable cabinet.
- Nozzle Width - 36"
- Maximum Door Height
- Environmental - 12'
- Maximum Door Width - 36"
- Wind Stopping Capability - 12 MPH
Mars Air Curtains help to reduce energy costs, keep environments clean and sanitary and help to ensure consistent temperatures with an invisible unobstructing flow of air. Use Mars Air Curtains at all entries, exits, pass-thru windows, dock doors and receiving doors for energy savings and comfortable results. With a low profile design, durable metal construction with a powder coated finish and simple installation, the Mars Standard series is a commercial/industrial hybrid and the most popular, energy-saving series. Mars Standard series with HCP features a HEPA filter rated at 99.99% per 0.3 micron with an extended life of 3 years under normal conditions.
Specifications
STD236-1UA-OB-HCP
Overview
Product Category
Air Curtain
General Information
Type
Unheated Air Curtain
Product Line
Standard
Product Category
Air Curtain
Electric Heat
No
Color
Obsidian Black
Performance
Maximum Air Flow
1379 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
66 dB
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
5.1 Amps
Dimensions
Product Height
10 5/8 Inches
Product Width
36 Inches
Product Depth
21 3/8 Inches
Product Weight
60 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
