Features
- Heated Air Curtain
- The Mars Standard series with heated air curtain will significantly improve the work environments comfort level by maintaining consistent temperatures.
- Strong and Sleek
- The Standard series features 1/2 horsepower motor in a low profile design, providing power ideal for a multitude of customer-facing and industrial applications.
- LEED Points
- The Mars Standard series helps you achieve a green building design and contributes to LEED points.
- Easy Installation
- Mounting holes and key hole slots are provided for wall and overhead mounting.
- Durable Cabinet
- With sufficient strength for attaching to the wall without intermediate support, the Standard series features a strong, durable cabinet.
- Nozzle Width - 42"
- Maximum Door Height
- Environmental - 12'
- Flying Insect - 10'
- Maximum Door Width - 42"
- Wind Stopping Capability - 12 MPH
Mars Air Curtains help to reduce energy costs, keep environments clean and sanitary and help to ensure consistent temperatures with an invisible unobstructing flow of air. Use Mars Air Curtains at all entries, exits, pass-thru windows, dock doors and receiving doors for energy savings and comfortable results. With a low profile design, durable metal construction with a powder coated finish and simple installation, the Mars Standard series is a commercial/industrial hybrid and the most popular, energy-saving series. A heated air curtain effectively creates an 80% to 90% efficient insulation barrier between two environments.
Specifications
STD242-1EBB-OB
Overview
Product Category
Air Curtain
General Information
Type
Electric Heated Air Curtain
Product Line
Standard
Product Category
Air Curtain
Electric Heat
Yes
Color
Obsidian Black
Performance
Electric Heat Capacity
6 kW
Maximum Air Flow
1418 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
66 dB
Electrical Data
Voltage
208 Volts
Phase
1
Frequency
60 Hz
Current Draw
31.5 Amps
Dimensions
Product Height
10 5/8 Inches
Product Width
42 Inches
Product Depth
17 1/2 Inches
Product Weight
65 Pounds
Warranty Information
Parts Warranty Days
540
Reviews
Mars Air Systems STD242-1EBB-OB Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
Ventilation Solutions for Your Home
Ever pull your bed covers over your head for a warm, cozy feeling only to find ...
How HRVs and ERVs work
Many find it unpleasant to breathe in frigid air after running on a cold day. Y...
How to Pick the Perfect Venting Solution
To combat ever-increasing energy costs, appliance manufacturers are advancing te...
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

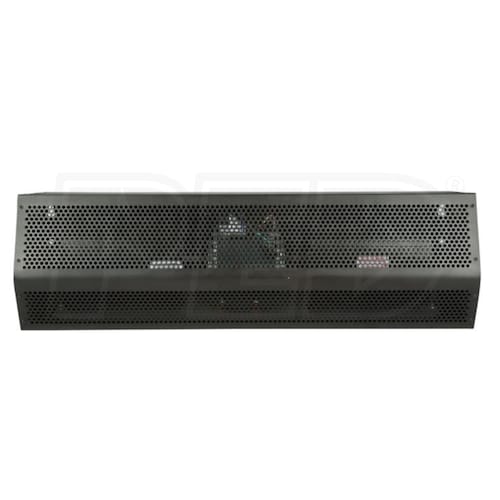

Mars Standard Series - 42" Electric Heated Air Curtain - 208V
