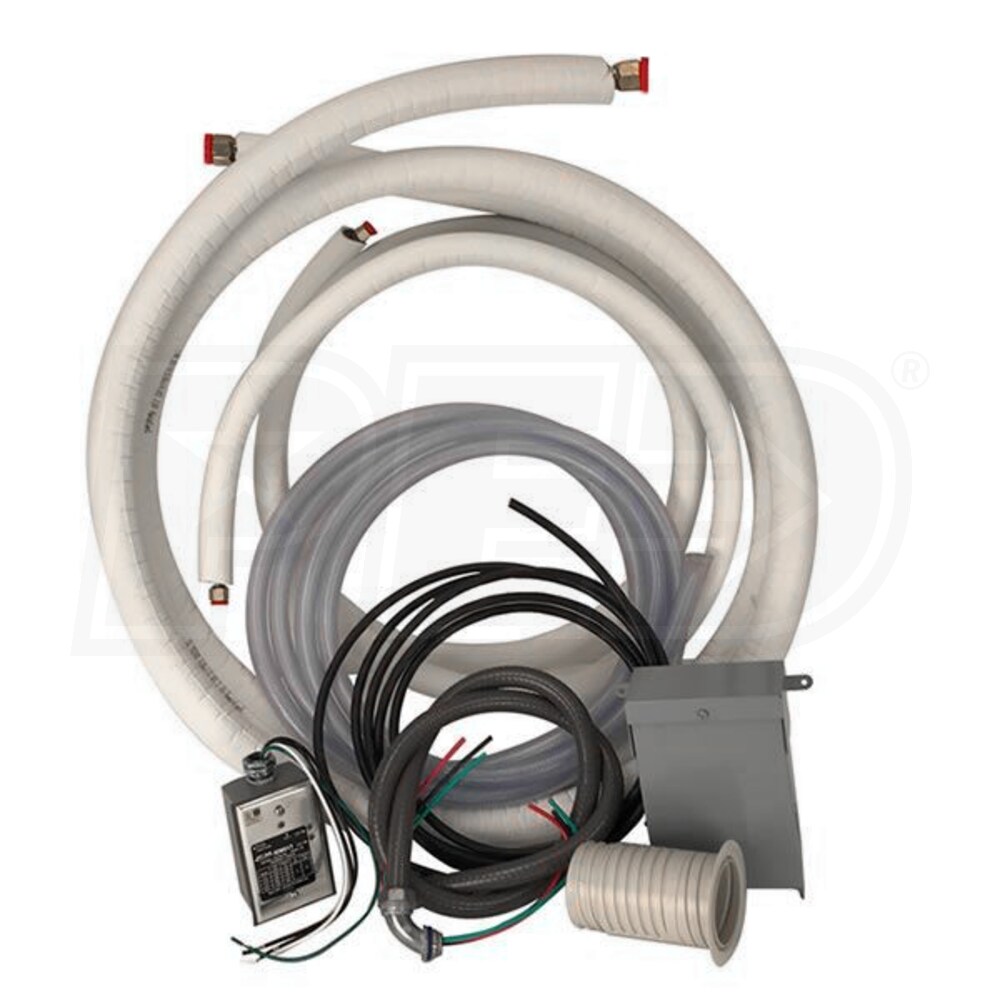

Primary Mini Split Installation Starter Kit - 35' Long - 1/4" x 3/8" Line Set - One Required
Model:
MSPLTKIT-143835
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- (1) Mueller - 1/4" x 3/8" Insulated Mini Split Line Set - 35' Length - Factory Flared (MLS143812-35)
- (1) ICM Controls HVAC Surge Protector - 120-240 V (ICM517A)
- (1) Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 35' Length (MSCABLE144-35)
- (1) Mini Split 35' Length 5/8" ID PVC Braided Drain Tubing (DRAINTUBING-35)
- (1) Bramec 1/2" x 4', 10 Gauge THHN with 1-Straight Connector and 1-90° Connector (18831)
- (1) Bramec 60A Non-Fused Metal Disconnect Switch (20650)
- (1) Diversitech Wall Sleeve - 2-1/2" (230-WS2)
Each mini split system requires certain accessories for installation. The Mini Split Installation Starter Kit has everything necessary to install your new single-zone mini split system. Our convenient starter package brings together essential components--from a selection of top brands--to ensure that your mini split installation is a quick, smooth, and safe process.
Product Includes
Product Note
Connection between outdoor and indoor units may require a longer length of mini split cable than the distance between the units. We recommend oversizing the length of the cable to account for this difference.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Mueller - 1/4" x 3/8" Insulated Mini Split Line Set - 35' Length - Factory Flared (MLS143812-35)
- (1) ICM Controls HVAC Surge Protector - 120-240 V (ICM517A)
- (1) Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 35' Length (MSCABLE144-35)
- (1) Mini Split 35' Length 5/8" ID PVC Braided Drain Tubing (DRAINTUBING-35)
- (1) Bramec 1/2" x 4', 10 Gauge THHN with 1-Straight Connector and 1-90° Connector (18831)
- (1) Bramec 60A Non-Fused Metal Disconnect Switch (20650)
- (1) Diversitech Wall Sleeve - 2-1/2" (230-WS2)
MSPLTKIT-143835
Overview
Product Category
Mini Split Accessories
General Information
Type
Primary Installation Kit
Product Category
Mini Split Accessories
Connection Type
Flared
Line Set Size
1/4" x 3/8"
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Length
35 Feet
Product Weight
26 Pounds
MLS143812-35
General Information
Type
Mini Split Line Set
Product Category
Mini Split Accessories
Connection Type
Flared
Line Set Size
1/4" x 3/8"
Dimensions
Insulation Depth
1/2 Inch
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Length
35 Feet
Shipping Height
33 Inches
Shipping Width
3 1/2 Inches
Shipping Depth
34 Inches
Shipping Weight
12 Pounds
Overview
Product Category
Mini Split Accessories
ICM517A
General Information
Type
Surge Protector
Product Category
Mini Split Accessories
Surge Protection Device Type
2
Electrical Data
Voltage
120-240 Volts
Phase
1
Frequency
60 Hz
Maximum Load
100000 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
4 1/2 Inches
Product Width
4 1/4 Inches
Product Depth
1 3/4 Inches
Product Weight
0.55 Pounds
Shipping Weight
1.18 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
MSCABLE144-35
General Information
Product Category
Mini Split Accessories
Length Increments
35
Color
Black
Certifications
Country of Origin
United States
UL Listed
Yes
Overview
Product Category
Mini Split Accessories
DRAINTUBING-35
General Information
Type
Drain Tubing
Product Category
Mini Split Accessories
Dimensions
Product Length
35 Feet
Product Weight
0.35 Pounds
Overview
Product Category
Mini Split Accessories
18831
General Information
Type
Electrical Whip
Product Category
Mini Split Accessories
Dimensions
Product Weight
2 Pounds
Shipping Weight
3 Pounds
Overview
Product Category
Mini Split Accessories
20650
General Information
Type
Disconnect Switch
Product Category
Mini Split Accessories
Dimensions
Product Weight
5 Pounds
Shipping Weight
7 Pounds
Overview
Product Category
Mini Split Accessories
230-WS2
General Information
Type
Wall Sleeve
Reviews
(3)
Mini Split Accessories MSPLTKIT-143835 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Ken, the eComfort Product Expert
Can the line set be bent 90 degrees to go around an outside corner of a building?
Steve
from Florida
June 22, 2016
Does the disconnect box include an electrical shut-off switch?
Greg
from Arkansas
June 22, 2016
