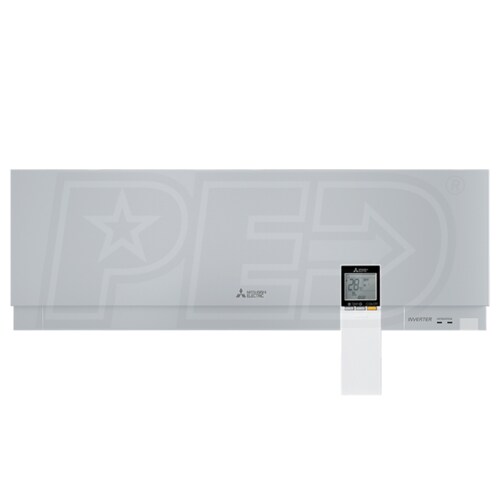

Mitsubishi EF-Series Silver 12k BTU Wall Mounted Unit - For Multi-Zone
Model:
MSZ-EF12NAS-U2
+
Share This Product
Recommended Accessories
![eComfort expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-15-18.png?v=1)
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Advanced Filtration System
- The M-Series indoor unit combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
- Econo Cool Mode
- By slowly adjusting the cooling set point and swinging the horizontal vanes, the M-Series indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
- Dehumidification
- When the indoor unit is run in dry mode, it removes unwanted moisture in the air. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- Smart Set
- Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. The setting range for HEAT mode is 50 degrees Fahrenheit.
- Sleek Design
- With a depth of only 7.69 inches, you can fit this indoor unit just about anywhere on the wall. With the options of black, silver, or white, this sleek stylish design can match any home decor.
- Kumo Cloud Capability
- The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
- Weekly Timer Operation
- Have your unit turn on and off as you please. The M-series units allow for four on or off timers per day and a maximum of 28 per week.
- Product Compatible With These Mitsubishi Outdoor Units
- MXZ-2C20NA, MXZ-3C24NA, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NA2HZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
This product requires a compatible outdoor condenser for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MSZ-EF12NAS-U2 is a wall mounted heat pump mini split indoor unit for use in multi-zone systems. This stylish slim design at a depth of only 7.69 inches, is paired with quiet operations that provide comfort without disrupting your space. Choose between 3 different colors to fit your home decor. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room.
Product Note
This product requires a compatible outdoor condenser and the following accessories for indoor unit installation:
Specifications
MSZ-EF12NAS-U2
![specs product image PID-114813](/products-image/150/mass_114810__.jpg)
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
448 CFM
Minimum Air Flow
121 CFM
Minimum Sound Level
21 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
5/8 Inch
Product Height
11 3/4 Inches
Product Width
34 13/16 Inches
Product Depth
7 11/16 Inches
Product Weight
26 Pounds
Shipping Height
14 1/4 Inches
Shipping Width
38 3/4 Inches
Shipping Depth
10 3/4 Inches
Shipping Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
