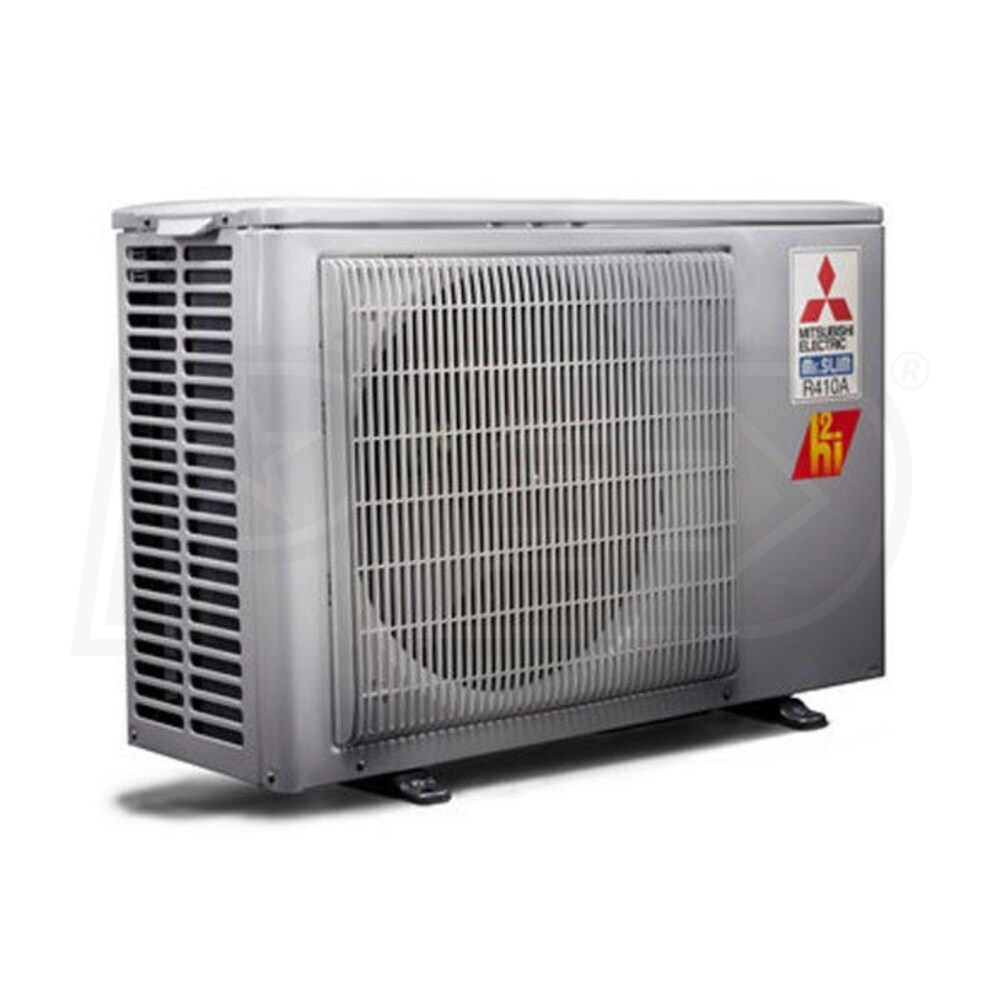

Mitsubishi - 6k BTU - FH-Series H2i Outdoor Condenser w/ Base Pan Heater - Single Zone Only

Model:

MUZ-FH06NAH

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Mitsubishi - 6k BTU - FH-Series H2i Outdoor Condenser w/ Base Pan Heater - Single Zone Only
Mitsubishi - 6k BTU - FH-Series H2i Outdoor Condenser w/ Base Pan Heater - Single Zone Only
Model: MUZ-FH06NAH
$1,252.51
Not For Individual Sale
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible indoor unit for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions.
  • Precision Temperature Control Technology
  • This condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the output of the unit can be matched to the zone for precise temperature control and improved efficiency.
  • Integrated Base Pan Heater
  • These FH Series outdoor condensers have a factory-installed base pan heater in the drain pain. This prevents condensate from freezing and damaging the unit in frigid climates.
  • H2i Technology
  • Low or negative ambient temperatures won't bother the FH Series. They are rated for 100% heating capacity at 5 degrees F and 73% at -13 degrees F.
  • Hot-Start
  • Mitsubishi's hot-start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Product Compatible With
  • Mitsubishi MSZ-FH06NA Wall Mounted Indoor Unit
  • Product Note
    • This product requires a compatible Mitsubishi mini split indoor unit and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.


    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.

Specifications

MUZ-FH06NAH
specs product image PID-78182
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Performance
Cooling BTU
6000
Cooling Capacity
9000 BTU
Heating BTU
14000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11 Amps
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
81 Pounds
Shipping Weight
88 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
