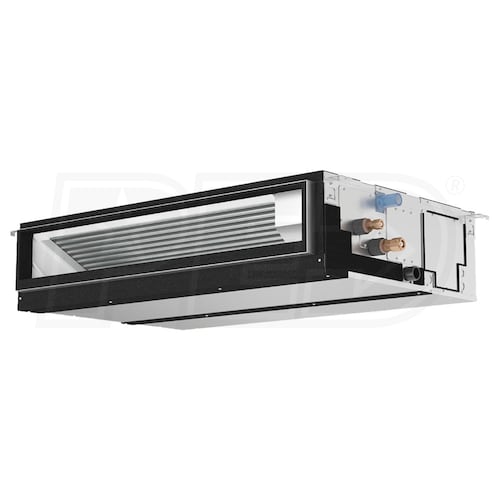

Mitsubishi PEAD-A36AA8
Mitsubishi PEAD-A36AA8
Hover to zoom
1 Of 5

Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone

Model:

PEAD-A36AA8

Write A Review
$2,807.25
Was $2,976.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601
synchrony card logo
$50 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Model: PEAD-A36AA8
$2,807.25
Was $2,976.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PEAD-A36AA8 is a concealed duct heat pump mini split indoor unit for use in single zone and multi-zone systems. This unit is easily hidden in short-run ducting and operates quietly, making it the perfect choice for unobtrusive zoned comfort. With the PEAD-A36AA8, a small air register is the only evidence of the fact that a powerful and efficient mini split is servicing your room. With multiple operating modes and multiple fan speeds, this unit fits the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the PEAD-A36AA8 is an excellent addition.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Condensate Removal System
  • The PEAD-A36AA8 contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Compatible With
  • Mitsubishi MXZ-SM36NAM2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM48NAM2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM60NAM2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM36NAMHZ2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM42NAMHZ2 Mini Split Outdoor Condenser
  • Mitsubishi MXZ-SM48NAMHZ2 Mini Split Outdoor Condenser
  • Product Note
    • This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications

PEAD-A36AA8
specs product image PID-145697
General Information
Type
Concealed Duct
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Heating BTU
38000
Maximum Air Flow
1201 CFM
Minimum Air Flow
847 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
9 7/8 Inches
Product Width
55 1/8 Inches
Product Depth
28 19/24 Inches
Product Weight
84 Pounds
Shipping Weight
100 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
