Mitsubishi PLA-A12EA8-NG
Mitsubishi PLA-A12EA8-NG
Hover to zoom
1 Of 5

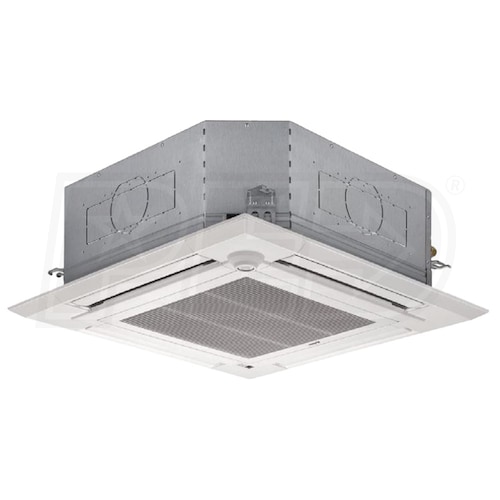

Mitsubishi - 12k BTU - P-Series Ceiling Cassette Unit - For Multi or Single-Zone - Grille Sold Separately

Model:

PLA-A12EA8-NG

Write A Review
$1,599.75
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships Thursday, Nov 21st
synchrony card logo
$267 / Month
Suggested monthly payments with 6 month financing.
Mitsubishi - 12k BTU - P-Series Ceiling Cassette Unit - For Multi or Single-Zone - Grille Sold Separately
Mitsubishi - 12k BTU - P-Series Ceiling Cassette Unit - For Multi or Single-Zone - Grille Sold Separately
Model: PLA-A12EA8-NG
$1,599.75
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Specifications

    PLA-A12EA8-NG
    specs product image PID-152290
    General Information
    Type
    Ceiling Cassette
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    UPC
    00622632300619
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating BTU
    14000
    Maximum Air Flow
    530 CFM
    Minimum Air Flow
    370 CFM
    Minimum Sound Level
    26 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
    30 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 3/16 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    33 1/16 Inches
    Product Weight
    46 Pounds
    Shipping Weight
    77 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
