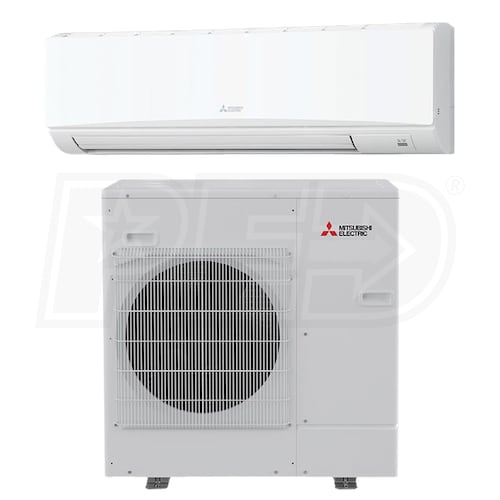

Mitsubishi - 24k BTU Cooling + Heating - P-Series Wall Mounted Air Conditioning System - 21.3 SEER2
Model:
PUZ-A24NHA7 PKA-A24KA8
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Precision Temperature Control Technology
- The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
- Dehumidification
- When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- Vane Control
- Optimal air flow can be achieved with the PKA-A24KA8 thanks to the individual vane control option. This function provides access to an auto mode and a swing mode.
- Kumo Cloud Compatible
- Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
- Blue Fin Condenser
- Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
- (1) Mitsubishi - 24k BTU - P-Series Outdoor Condenser - Single Zone Only (PUZ-A24NHA7)
- (1) Mitsubishi - 24k BTU - P-Series Wall Mounted Unit - Single Zone Only (PKA-A24KA8)
- Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PUZ-A24NHA7 PKA-A24KA8 is a single zone heat pump mini split system designed to bring effective heating and cooling to any room in a large home or business. A wall mounted indoor unit, PKA-A24KA8, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With the included mounting plate, it is easy to install the indoor unit on nearly any wall. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical load applications that require constant conditioning
Product Includes
Product Note
This product requires the following accessories for installation:
Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
Specifications
Product Includes
- (1) Mitsubishi - 24k BTU - P-Series Outdoor Condenser - Single Zone Only (PUZ-A24NHA7)
- (1) Mitsubishi - 24k BTU - P-Series Wall Mounted Unit - Single Zone Only (PKA-A24KA8)
PUZ-A24NHA7 PKA-A24KA8
General Information
Type
Wall Mounted
Product Line
P-Series
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating BTU
26000
Moisture Removal
5.0 Pints/Hour
Cooling Power Input
1960 Watts
Heating Power Input
1750 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
21.3
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
12.2
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.3
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
26 Amps
Dimensions
Product Weight
199 Pounds
Shipping Weight
230 Pounds
Certifications
Energy Star Listed
No
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201754462
PUZ-A24NHA7
General Information
Type
Outdoor Condenser
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating BTU
28000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
37 1/8 Inches
Product Width
37 1/2 Inches
Product Depth
14 Inches
Product Weight
153 Pounds
Shipping Weight
179 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PKA-A24KA8
General Information
Type
Wall Mounted
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating BTU
28000
Moisture Removal
5.0 Pints/Hour
Maximum Air Flow
775 CFM
Minimum Air Flow
635 CFM
Minimum Sound Level
39 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
14 3/8 Inches
Product Width
46 1/16 Inches
Product Depth
11 5/8 Inches
Product Weight
46 Pounds
Shipping Weight
51 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
