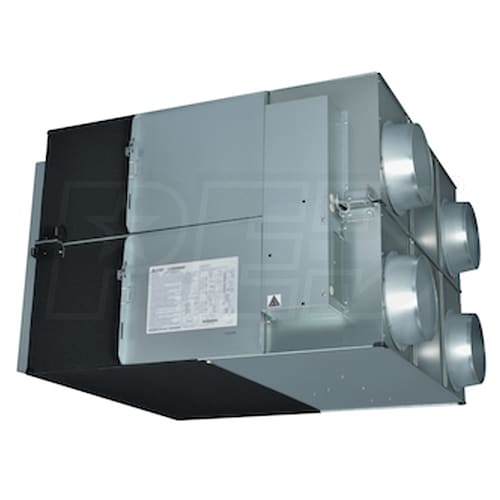

Mitsubishi Lossnay - 940 CFM - Energy Recovery Ventilator - Side Ports - 9-1/2" Duct

Model:

LGH-F940RVX2-E

Write A Review
$5,441.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 15th
Shipping to60601
synchrony card logo
$69 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Mitsubishi Lossnay - 940 CFM - Energy Recovery Ventilator - Side Ports - 9-1/2
Mitsubishi Lossnay - 940 CFM - Energy Recovery Ventilator - Side Ports - 9-1/2" Duct
Model: LGH-F940RVX2-E
$5,441.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The LGH-F940RVX2-E is part of Mitsubishi's Lossnay line of energy recovery ventilators. In applications where air is the heat transfer medium, a Lossnay unit provides a number of benefits. The primary function of the LGH-F940RVX2-E is to improve the ventilation of your heating and cooling system while extracting energy from your system's exhaust and transferring it to the incoming air. This not only cleans your air, it also minimizes the impact on your heating and cooling system. Salvaging this energy that would normally be wasted has the added benefit of transferring moisture, meaning that the Lossnay unit also contributes humidity control to your system. Finally, the LGH-F940RVX2-E includes washable MERV 7 filters that keep the core clean by capturing outside pollutants.
  • Mitsubishi Lossnay 940 CFM Energy Recovery Ventilator Features
  • External input bypass damper control
  • Four fan speeds
  • High efficiency DC Motor
  • Minimal cross contamination between entering and leaving air streams
  • M-Net Connectivity
  • Standard MERV 7 non-woven fabric filter, washable fiber
  • Stand alone or interlocks connects with all Mitsubishi Electric products
  • Stand-alone remote controller (PZ-62DR-EA)
  • Optional high-efficiency MERV 14 and MERV 16 filters - Not Included

Specifications

LGH-F940RVX2-E
specs product image PID-124769
General Information
Type
ERV
Product Line
Lossnay
Product Category
Energy Recovery Ventilators (ERVs)
Ports Quantity
8
Port Location
Side
Housing Material
Galvanized Steel
Core Material
Lossnay Core
Performance
Filter Efficiency
7 MERV
Maximum Air Flow
940 CFM
Minimum Air Flow
235 CFM
Minimum Sound Level
20 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.1 Amps
Recommended Breaker Size
15 Amps
Dimensions
Duct Connection
9.5 Inches
Product Height
31 13/16 Inches
Product Width
41 7/48 Inches
Product Depth
49 5/16 Inches
Product Weight
225 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
