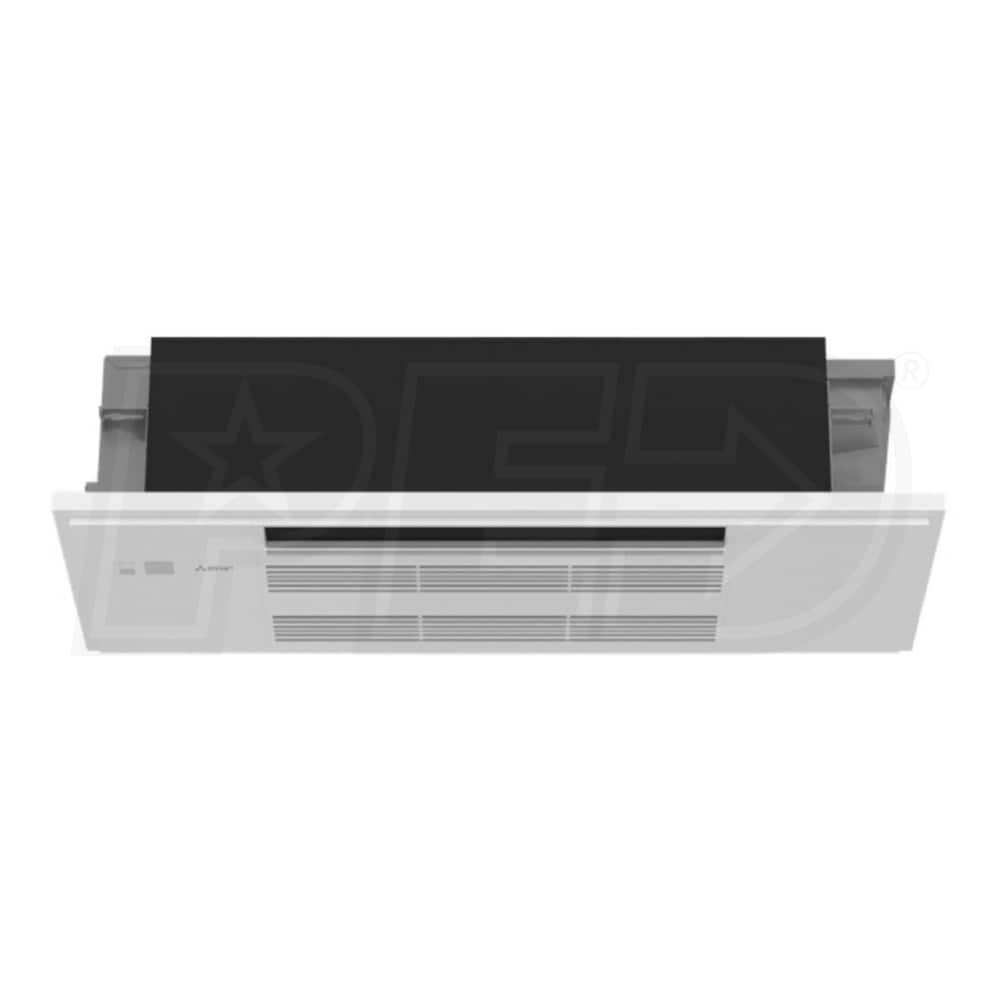

Mitsubishi - 6k BTU - EZ Fit® One-Way Ceiling Cassette without Grille - For Multi-Zone

Model:

MLZ-KY06NA-NG

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Mitsubishi - 6k BTU - EZ Fit® One-Way Ceiling Cassette without Grille - For Multi-Zone
Mitsubishi - 6k BTU - EZ Fit® One-Way Ceiling Cassette without Grille - For Multi-Zone
Model: MLZ-KY06NA-NG
$910.51
Not For Individual Sale
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the MLZ-KY06NA thanks to the vane control option. This function provides access to an auto mode and a swing mode.
  • Condensate Removal System
  • The MLZ-KY06NA contains an internal drain mechanism capable of lifting condensate 19-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.

Specifications

MLZ-KY06NA-NG
specs product image PID-138703
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Grille
Not Included
Required Grille Model
MLP-448WU
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Maximum Air Flow
212 CFM
Minimum Air Flow
152 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 11/16 Inches
Product Width
33 3/16 Inches
Product Depth
11 7/8 Inches
Product Weight
24.3 Pounds
Grille Depth
1 3/8 Inches
Grille Width
14 9/16 Inches
Grille Length
36 1/16 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
