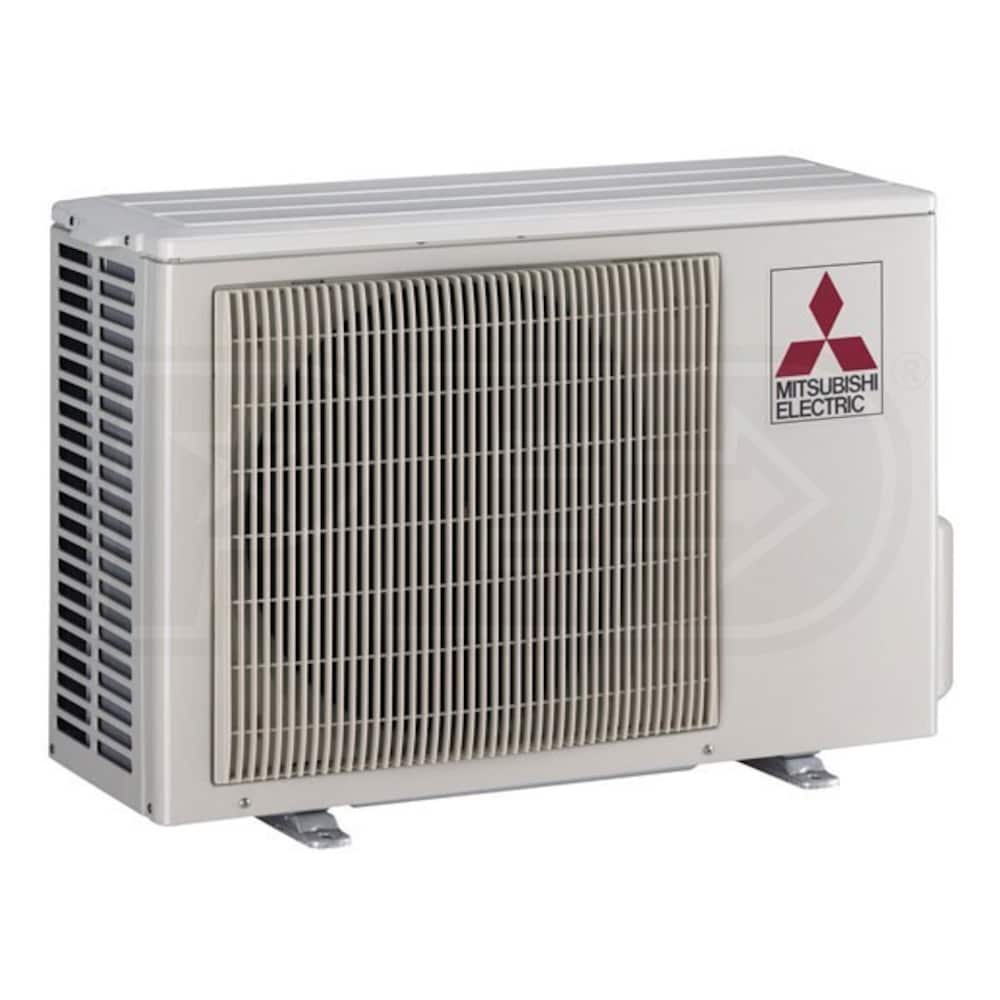

Mitsubishi MUZ-FE12NA-1
Mitsubishi MUZ-FE12NA-1
Hover to zoom
1 of 1

Mitsubishi M-Series - Hyper-Heating - 12,000 BTU - Mini Split Outdoor Condenser - Heat Pump

Model:

MUZ-FE12NA-1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi M-Series - Hyper-Heating - 12,000 BTU - Mini Split Outdoor Condenser - Heat Pump
Mitsubishi M-Series - Hyper-Heating - 12,000 BTU - Mini Split Outdoor Condenser - Heat Pump
Model: MUZ-FE12NA-1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 3
$44.00
In-Stock
$197.00
In-Stock

Specifications

MUZ-FE12NA-1
specs product image PID-30747
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
80 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

Reviews

(12)
Mitsubishi MUZ-FE12NA-1 Reviews & Ratings
Verified Buyer
Verified Buyer
Heat Pump
By Jack
IL
Review Posted 12/16/2014
This unit is unbelievable, and customer service is even better
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MSZ-FE09NA-8.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Heat Pump
By Jack
IL
Review Posted 12/16/2014
Great product, on time delivery, great customer service
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MUZ-FE09NA-1.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Do your research
By Roger
IL
Review Posted 10/27/2014
I did mine and product is simply outstanding - highly recommended!
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Love it
By Randy E.
IL
Review Posted 10/26/2014
Installed a month ago. Works great, would recommend to everyone. I installed most of it myself and had a hvoc dealer hook up the tubes.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MZ-FE18NA.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Excellent Experience
By Barry in NC
IL
Review Posted 09/06/2014
I ordered this product over the phone through a very pleasant CS representative. The shipment was delayed about 5 days due to Mitsubishi not delivering the product to the supplier on schedule. Once in the hands of eComfort the units were packed and shipped as predicted, arriving on schedule. The units were delivered to me in a parking lot, as requested, as my street is not accessible and not legally open to semi-tractor trailers. The delivery man transferred the units on their pallet to my pickup truck in exactly the same condition as shown in the photograph emailed to me by eComfort prior to their being loaded at the warehouse. The units were installed yesterday by a local installer, both the heat pump/compressor and the wall mounted air handler came on-line and functioned perfectly. I had configured the system to auto mode for A/C or heat as needed. We set the thermostat at 78, the room was at that temp when we went to bed (A/C mode as the outside temp was 87). When I checked it this morning it was in heat mode and the temp was 78 (outside temp 67). Will have to read the manual so the unit won't go to heat mode unnecessarily in the future. Very pleased with the product, service, and delivery as managed by eComfort. The overall cost of installation was about 60% of what two local providers gave me for bids.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MUZ-FE09NA-1.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Amazing System
By Larry W.
IL
Review Posted 08/04/2014
I have 2 of these units, they are so quiet, you really don't know if they are working! The wall mounted units are the best.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MSZ-FE12NA-8.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Mitsubishi is the Apple/BMW quality of AC Mini system
By FL boy
IL
Review Posted 07/22/2014
Just got this system installed ourselves in our Master bedroom with the help of my awesome HVAC licensed buddy and saved over $3000 dollars. Our local AC companies quoted us $4790 plus whatever price of an electrician for a 220v.

Now the review on this awesome Mit: It is EXTREMELY quiet, both the inside and outside units. When I say quiet, I mean, there is no noise until you put your ears few inches. You hardly hear the fan, just the air flow that comes out. At time I need to feel the air to know that the inside unit is on. The temperature is so COLD that it reminds me of some 5 stars hotel AC. The air that comes out of the vent is as cold as the air in the freezer. Yes, it is that cold. It is so comfortable sleeping for the past few nights under FL July-August heat and humidity.

I have done all the research and determined that Mitsubishi is the best of the best. It is the Rolls-Royce, Apple - BMW - Ferrari quality. I can't believe we lived so long in the hottest room of the house for so long. Looking forward to save half of my power bill since, we now can turn off or way down our big power hungry 5 ton Trane AC for the entire house during the night when we sleep.

Highly recommend Mitsubishi. You really get what you pay for in terms of efficiency and quality. Much like an Apple iPhone vs. android phone. Mitsubishi is really the BEST.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MZ-FE12NA-1.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Great
By Greg
IL
Review Posted 02/28/2014
I use this in Canada mostly for heating. Easy to install with a little help from your friendly neighborhood hvac pro. Very quiet, very efficient. Cut the heating portion of our power bill in half for our small house - no exaggeration. The various settings and isee sensor are great - helps get rid of cold spots. I have bought one for my previous house and another for our new house - will be buying a second unit for summer cooling upstairs. My father in law has bought three for his house he liked the first one so much! Family and friends have tried other brands - Mr Slim is the best. Stick to 9000/12000 for max effiency.

Mine has never shut down due to cold weather.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MZ-FE12NA-1.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
boss
By C.C. WILLIAMS
IL
Review Posted 02/20/2014
this is the best most efficient heat I have ever had.I am heating a 1400 sq ft home with a single outlet it just got 10 degrees here and my house stayed a perfect 78 degrees. LOVE THIS UNIT I WOULD HIGH RECOMIND IT. KING,NORTH CAROLINA
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MZ-FE18NA.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Almost satisfied
By Josh R
IL
Review Posted 12/23/2013
Purchased 2 units in November and had them installed. After multiple visits from the installer and electrician it was determined that the motherboard on 1 of my units was shot. Called ecomfort to get a replacement motherboard, it has been on backorder and I'm told won't be available until sometime in January. The 1 unit that is working, works GREAT! However, I'm slightly dissapointed about the backorder. I live in the Bitter cold and everyday that passes is valuable dollars I'm not saving while I wait for my motherboard to come in.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the MZ-FE12NA-1.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
