Mitsubishi M-Series - 18,000 BTU - Ductless Air Conditioning System - Wall Mounted - 19.2 SEER

Model:

MY-GE18NA-1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi M-Series - 18,000 BTU - Ductless Air Conditioning System - Wall Mounted - 19.2 SEER
Mitsubishi M-Series - 18,000 BTU - Ductless Air Conditioning System - Wall Mounted - 19.2 SEER
Model: MY-GE18NA-1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MY-GE18NA-1 is a packaged single zone air conditioner mini split system designed to bring effective cooling to any room in your home. The wall mounted indoor unit, MSY-GE18NA-9, boasts a functional design, and operates at volumes as low as 28 dB. Thanks to the included mounting plate, it is easy to install on nearly any wall. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any cooling application.

    Product Features

    Precision Temperature Control Technology

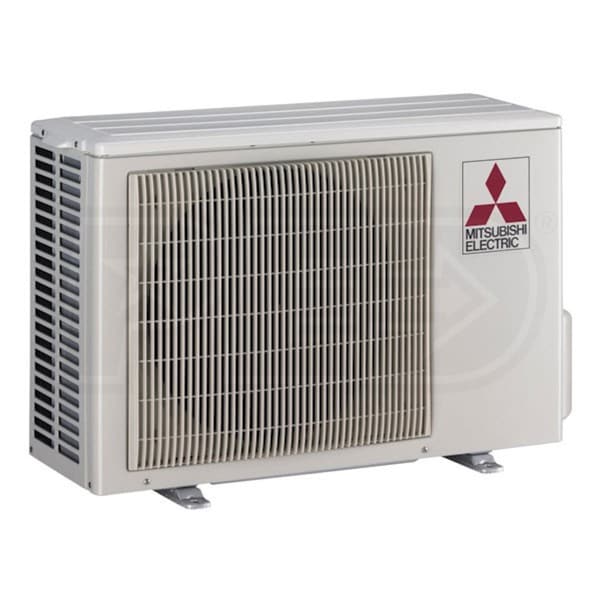

    The MUY-GE18NA-1 outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the output of the unit can be matched to the zone for precise temperature control and improved efficiency.

    Advanced Filtration System

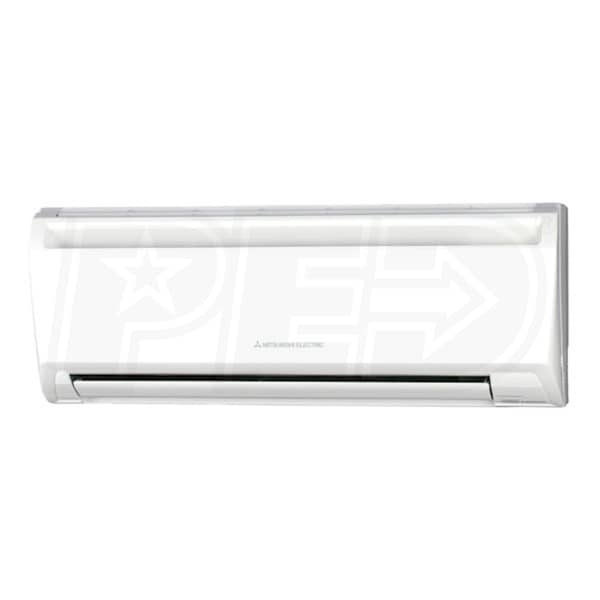

    The MSY-GE18NA-9 combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.

    Smart Set
    Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.

    Econo Cool Mode
    By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSY-GE18NA-9 can improve the efficiency of cooling operations without compromising the comfort provided.

    Dehumidification
    When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the conditioned space.

    Vane Control
    Optimal air flow is easy to achieve with the MSY-GE18NA-9 thanks to the vane control option. This function provides access to five different horizontal vane positions, an auto mode, and a swing mode. Auto mode selects the best vane position based on operating mode. Swing mode cycles through all positions for maximum coverage.

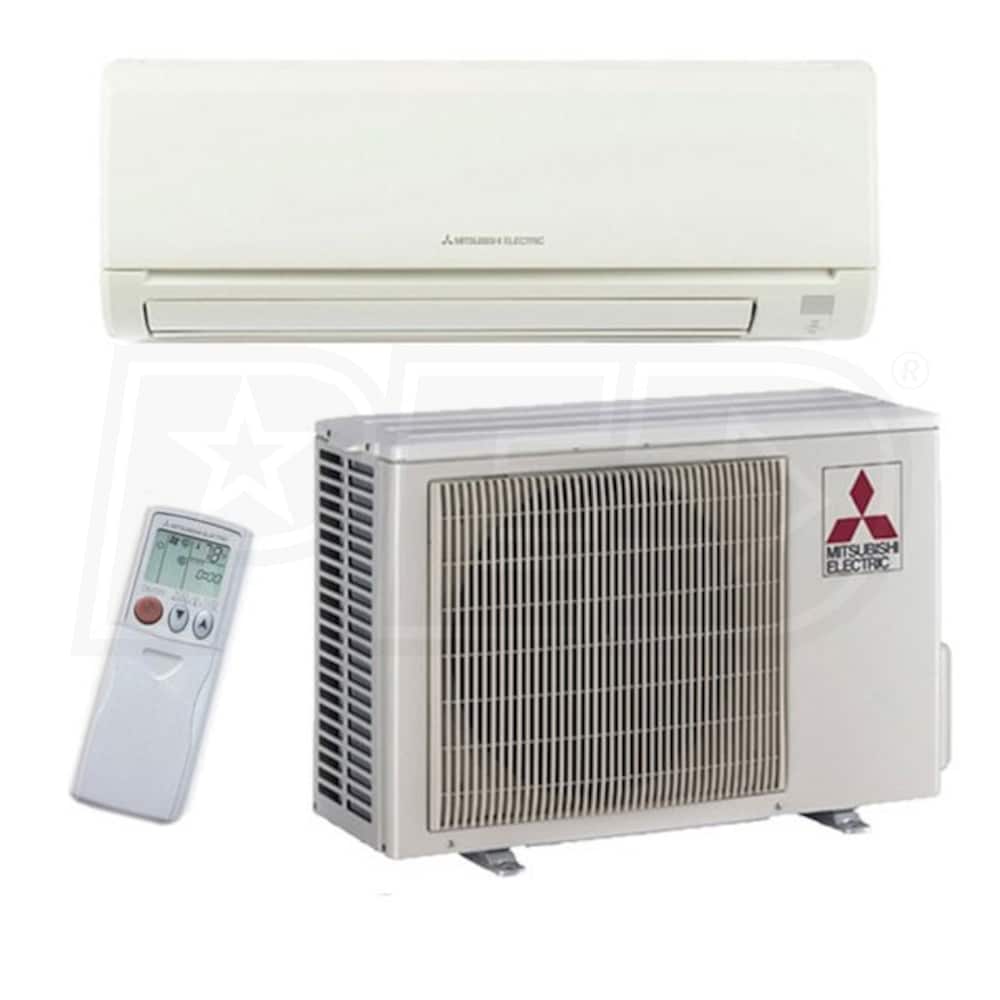

    Product Includes
    • (1) Mitsubishi MUY-GE18NA-1 Mini Split Outdoor Condenser
    • (1) Mitsubishi MSY-GE18NA-9 Mini Split Indoor Unit

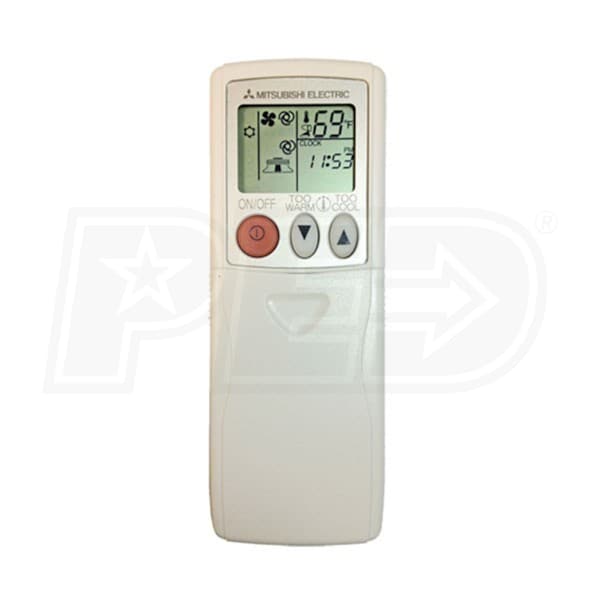

    • (1) Mitsubishi Handheld Wireless Remote Controller
    Product Note

    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.

    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.

Specifications

Product Includes
  • (1) Mitsubishi M-Series - 18,000 BTU - Mini Split Outdoor Condenser - Air Conditioner (MUY-GE18NA-1)
  • (1) M-Series - 18,000 BTU - Mini Split Indoor Unit - Wall Mounted - Air Conditioner (MSY-GE18NA-9)
MY-GE18NA-1
specs product image PID-56096
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
System Code
1800000000
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
19.2
Cooling Power Input
1640 Watts
Dimensions
Product Weight
141 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
4939869
MUY-GE18NA-1
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
33 7/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
119 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSY-GE18NA-9
General Information
Type
Wall Mounted Unit
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
No
Remote Control
Wireless
Installation Location
Indoor
Performance
Cooling BTU
18000
Moisture Removal
4.6 Pints/Hour
Maximum Air Flow
533 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
