Mitsubishi PCA-A30KA7
Mitsubishi PCA-A30KA7
Hover to zoom
1 Of 5

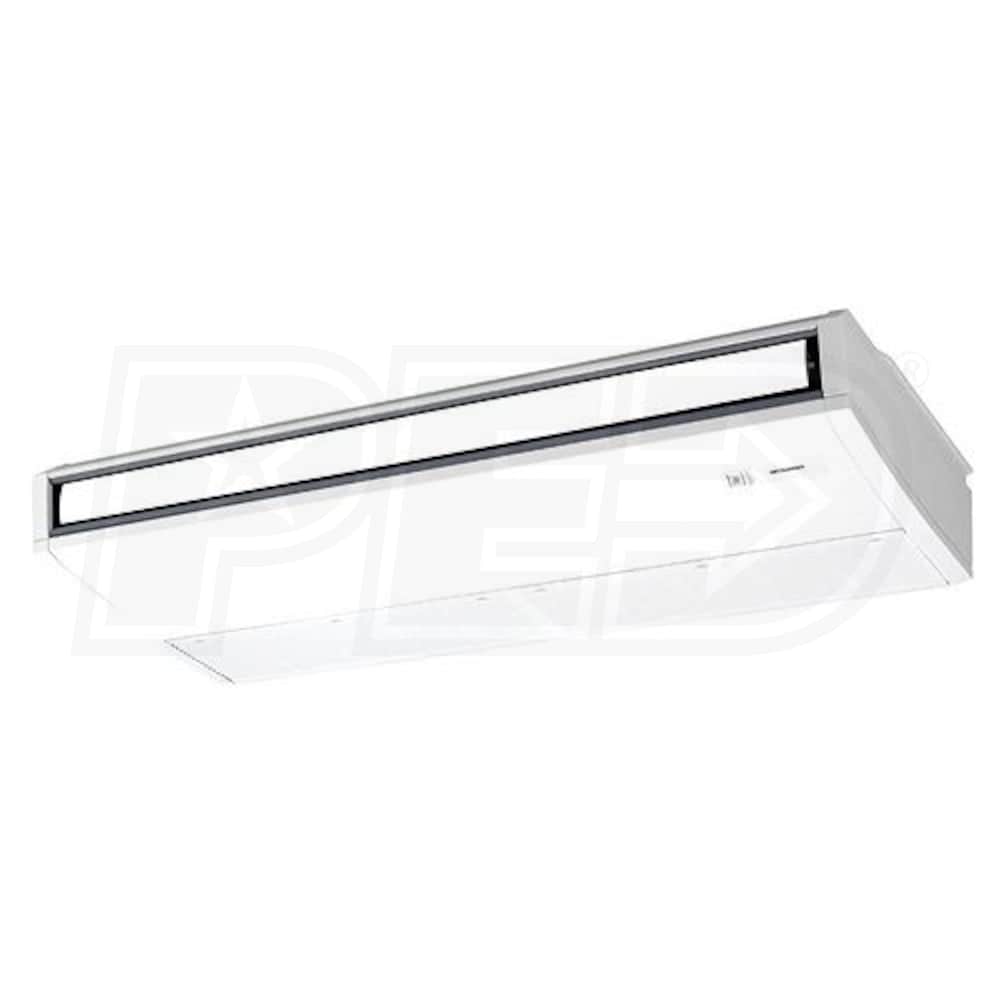

Mitsubishi - 30k BTU - P-Series Ceiling Suspended Unit - Single Zone Only

Model:

PCA-A30KA7

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Mitsubishi - 30k BTU - P-Series Ceiling Suspended Unit - Single Zone Only
Mitsubishi - 30k BTU - P-Series Ceiling Suspended Unit - Single Zone Only
Model: PCA-A30KA7
Not For Individual Sale
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible outdoor condenser for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions.
  • Hot-Start
  • Mitsubishi's Hot-start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the PCA-A indoor unit thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.
  • Product Note
    This product requires a compatible Mitsubishi outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.

Specifications

PCA-A30KA7
specs product image PID-80539
General Information
Type
Ceiling Suspended
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating BTU
35000
Moisture Removal
8.3 Pints/Hour
Maximum Air Flow
705 CFM
Minimum Air Flow
565 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
41 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
6 1/4 Inches
Liquid Connection Size
3/8 Inch
Product Height
9 1/16 Inches
Product Width
50 Inches
Product Depth
26 3/4 Inches
Product Weight
71 Pounds
Shipping Weight
82 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
