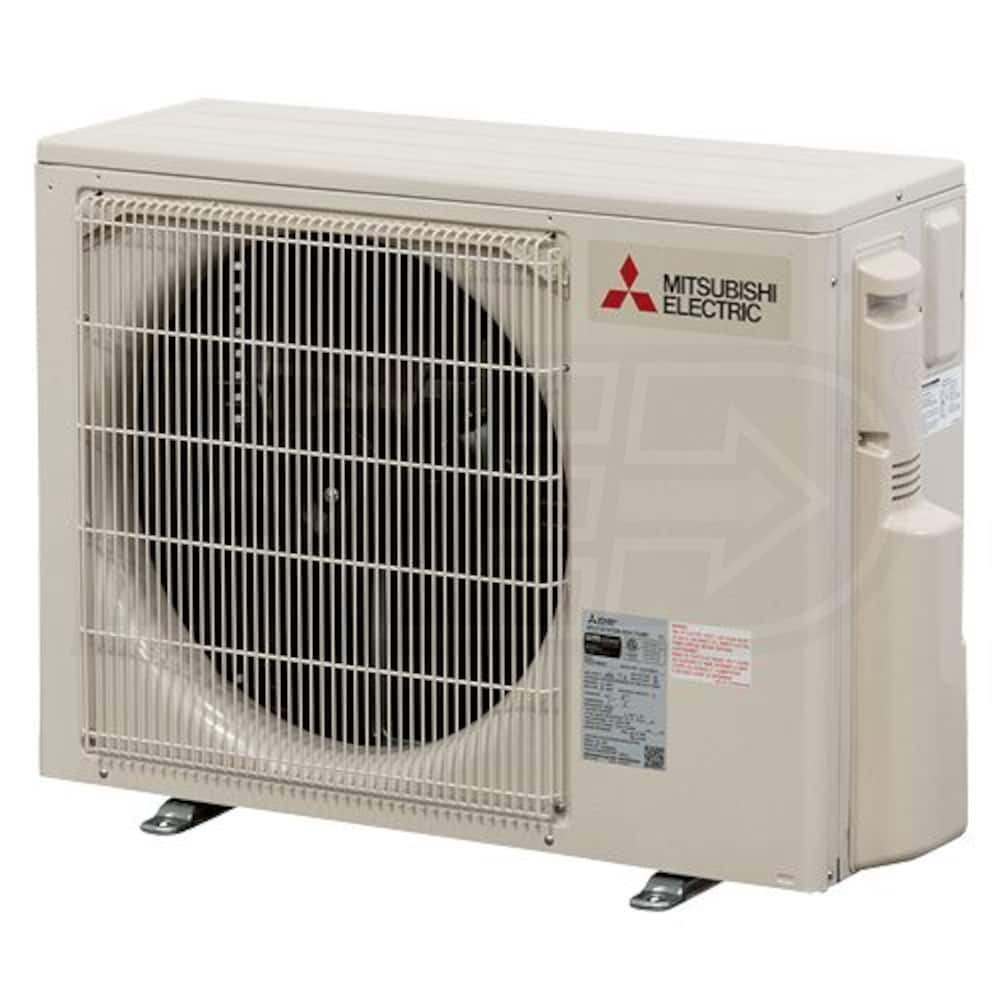

Mitsubishi - 12k BTU - P-Series Outdoor Condenser - Single Zone Only

Model:

PUZ-A12NKA7

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Mitsubishi - 12k BTU - P-Series Outdoor Condenser - Single Zone Only
Mitsubishi - 12k BTU - P-Series Outdoor Condenser - Single Zone Only
Model: PUZ-A12NKA7
Not For Individual Sale
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible indoor unit for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Seacoast Protected Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Energy Efficient Inverter Compressor
  • An inverter-driven compressor ensures optimal performance with minimal energy consumption, delivering high efficiency and comfort.
  • Product Note
    • This product requires a compatible Mitsubishi mini split indoor unit and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.

Specifications

PUZ-A12NKA7
specs product image PID-84642
General Information
Type
Outdoor Condenser
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating BTU
18000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
44 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
225 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
25 Inches
Product Width
32 Inches
Product Depth
11 Inches
Product Weight
104 Pounds
Shipping Weight
104 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
