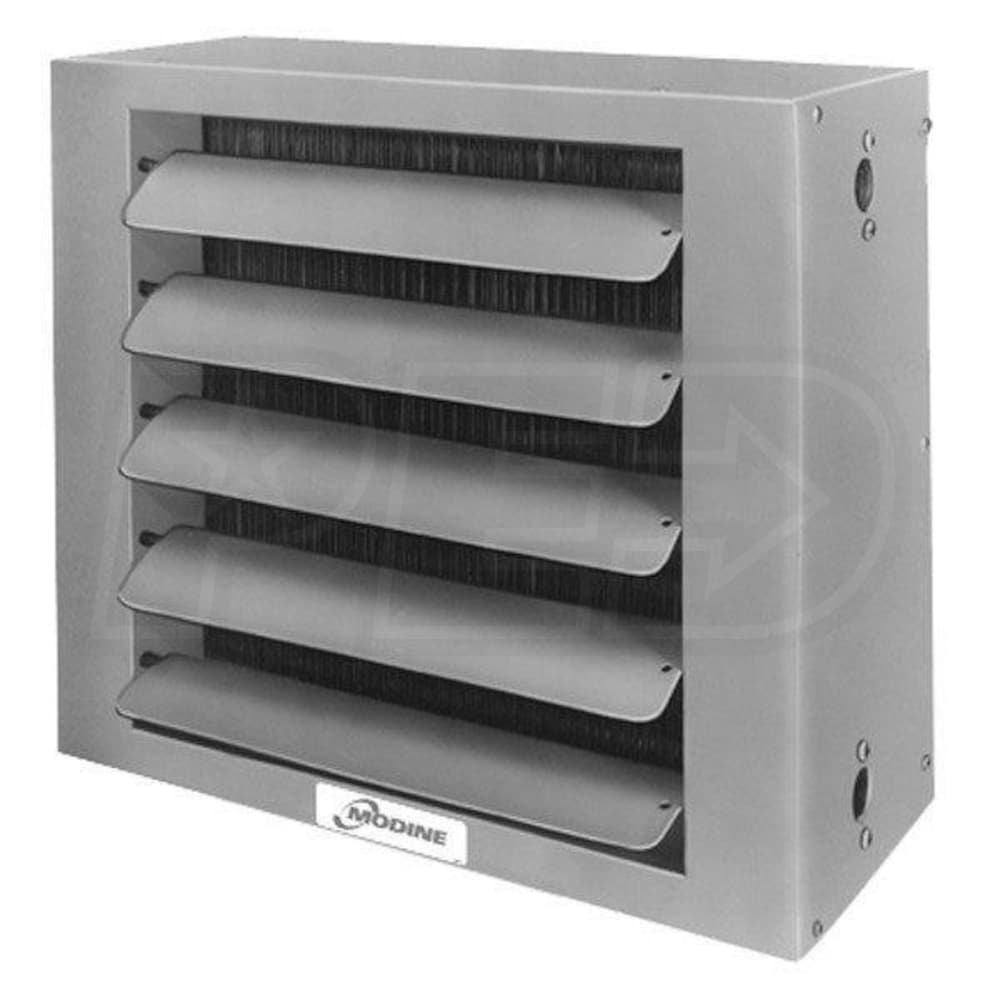

Modine HC - 33,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger - Side Connections
Model:
HC33S01
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Side Connections
- The HC33 comes equipped with side supply and return connections, permitting the unit to be rotated 360° without piping changes. This also allows the unit heater to be installed in very low clearance areas with little effort.
- Two Piece Casing
- A two piece casing is used with the HC33, allowing for incredibly easy access to the coil in case maintenance is required.
- Tapped Suspension Holes
- The HC33 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
- Thermal Shock Resistant
- The serpentine copper tube coil is very resistant to thermal shock even at high steam temperatures. This prevents undesired warping of the coil itself, as well as decreasing necessary maintenance.
- Smart Coil Layout
- The layout of the coil does not include coil headers. This eliminates potential leaks and maintenance without increasing the overall size of the unit.
- Baked-On Polyester Paint
- The HC33 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz
Modine's HC33 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The HC33 can emit 33,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is excellent for heating long corridors or blanketing walls with heat. The HC33 has supply and return connections on the side of the unit, allowing it to be installed into areas with low clearance.
Product Note
This product is available in multiple power configurations, including:
For ordering information, call our sales department at (866) 554-HEAT (4328).
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HC33S01
Overview
Product Category
Unit Heater
UPC
046629034644
General Information
Product Line
HC
Product Category
Unit Heater
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
33000 BTU
Air Throw
21 Feet
Maximum Air Flow
630 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
15 Inches
Product Width
17 1/2 Inches
Product Depth
14 3/4 Inches
Shipping Weight
34 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
