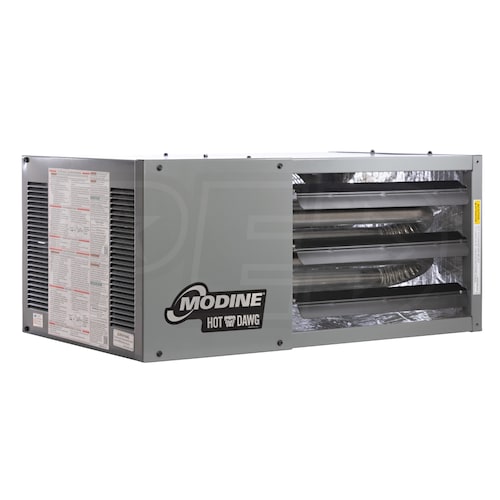

Modine Hot Dawg HD - 30,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Power Vented - Aluminized Steel Heat Exchanger
Model:
HD30AS0121
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
10
$60.00
Only 2 In-Stock
Model: 27865
$99.00
Only 1 In-Stock
Model: 53861
$73.00
$156.00
Only 2 In-Stock
$611.00
$442.00
$442.00
$16.00
In-Stock
$38.00
In-Stock
Model: 48594
$94.00
Only 1 In-Stock
Features
- Hush-Puppy Quiet Operation
- The HD30 is incredibly quiet during operation. This allows the heater to be inconspicuous yet effective at all times - it will not distract you from your work.
- Low Profile Design
- The HD30 has an incredibly low profile design, measuring in at a height of only 12.2 inches. It can be mounted with a one inch clearance from the ceiling on only two angle brackets, keeping the unit heater out of your way.
- Aluminized Steel Heat Exchanger
- The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
- Electric Knockouts
- Electric wiring knockouts and field wiring connections on the HD30 keep installation costs low and save time during both installation and maintenance for your contractor by simplifing all required electrical work.
- Permanently Lubricated Motor
- The motor on the HD30 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
- Power Venting System
- The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.
- Baked Polyester Paint
- The HD30 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Mounting Brackets Included
- Models HD30-75 include two mounting brackets for convenience.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- Finger Proof Fan Guard
- This model features a Finger Proof Fan Guard standard.
- 208V/1Ph/60Hz
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz
The Modine name has become synonymous with quality unit heaters in millions of homes and workshops all across the world. The HD30 is no exception to this rule, with sound engineering and reliability to last decades on end. Field wiring connections and electrical knockouts allow the HD30 to be installed nearly anywhere, while it's quiet operation and a natural, neutral coloring allow it to blend in seamlessly in any location.
Product Note
The Modine Hot Dawg logo on your unit may be blue and red or black and grey. These alternate power configurations are available for this item:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HD30AS0121
Overview
Product Category
Unit Heater
UPC
46629533062
General Information
Product Line
Hot Dawg HD
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
24900 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
30000 BTU
Thermal Efficiency
80 %
Air Throw
25 Feet
Maximum Air Flow
505 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Piping Diameter
1/2 Inch
Product Height
12 5/24 Inches
Product Width
26 19/24 Inches
Product Depth
22 Inches
Product Weight
55 Pounds
Shipping Weight
65 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Reviews
(35)
Modine HD30AS0121 Reviews & Ratings
Customer Rating
4.89
(35 Ratings)
97% recommend this product
5
(31)
(31)4(4)
(4)3(0)
(0)2(0)
(0)1(0)
(0)
Slick Little Unit
By Benjamin C
Brigham City, Utah
Purchased 11/29/2021 |
Review Posted 01/31/2022
This awesome unit heats the space I bought it for exactly as intended. It’s small and compact size gave me the agility to install it virtually anywhere with ease. Its owners manual was a little bit technical, but installation was relatively simple. I would buy a second one in a heartbeat.
Benjamin C Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Quiet, High Quality, Easy To Use, Id Buy It Again
Cons:
Wordy instructions
This furnace is great way to heat pool barns
By James R.
New Boston, Michigan
Purchased 02/05/2020 |
Review Posted 04/11/2020
It can heat my pool barn 30 Degrees to 70 degrees in 20 minutes.
James R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Love this heater very easy installation.
By Vincent D.
south range, Wisconsin
Purchased 03/18/2020 |
Review Posted 04/09/2020
Was easy to install and works as intended.
Vincent D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Awesome, awesome, awesome that’s all I can say about this produc
By David S.
Jewett City, Connecticut
Purchased 11/18/2019 |
Review Posted 01/02/2020
Fantastic
David S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Very well built
By John G
Riverton, Illinois
Purchased 02/25/2019 |
Review Posted 03/20/2019
I researched for weeks for a shop heater. When I found the Modine and read the review and the history of the company I was sold. Heater was delivered on time no damage to the unit. As far as the heater it woks great. My shop is 25x45 and 18’ ceilings with mostly r-11 insulation it usually takes 30 mins to raise it from 30 degrees to 65 I highly recommend.
John G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
I like it
By Luis J
plainfield, Wisconsin
Purchased 12/26/2018 |
Review Posted 02/08/2019
So far its been working really nice, I hope it stays like that for a long time. I would definitely recommend this product.
Luis J Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Well satisfied
By Tyler S
970A Highway 20, Louisiana
Purchased 01/15/2019 |
Review Posted 02/06/2019
I am very well satisfied with the heater. It’s much quieter than a heater I purchased a while back and it seems to heat much better even though it’s the same BTU rating.
Tyler S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great unit for heating a shop
By Jerrold W
Farmington, Minnesota
Purchased 11/27/2018 |
Review Posted 12/21/2018
I have had the 60K HDS unit installed in my wood shop for just over a week now. It is working great. The area I am heating is 25 x 24 with 12 ft ceiling. We have had temps under 20F and it maintains 50 easily, hardly ever running. It can also get it up to 60 quickly when I am working in the shop.
Jerrold W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Excellent product and service
By Allan G
Bandera, Texas
Purchased 11/13/2018 |
Review Posted 12/17/2018
We have a metal building with no insulation. In South Texas our winters are basically in the 40's and 50's with occasional 20's to 30's. Our heater warms it up quickly where we can work in short sleeves. If I would insulate, then I'm sure it wouldn't run very much. Can't speak to the fuel consumption as we are on propane and it was just filled. Will update later. This appears to be a 5-star product.
Allan G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
I could not be happier!
By Bill B.
Aurora, Colorado
Purchased 02/27/2018 |
Review Posted 03/21/2018
It was amazing in every respect quiet and efficient. It was more expensive than other, lesser heaters but you get what you pay for.
Bill
Bill
Bill B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(3)
Product Questions
Answered by Ken, the eComfort Product Expert
Can I connect the 3" flue to an existing 4" roof vent?
William D
from New Jersey
September 04, 2017
What are typical installation costs for a Modine Hot Dawg heater?
Bob
from Pennsylvania
November 20, 2015
When mounting near the ceiling of a 12' high shop, does the unit need to be mounted angled down towards the floor to get heat at floor level?
Mike
from Oklahoma
October 17, 2015
