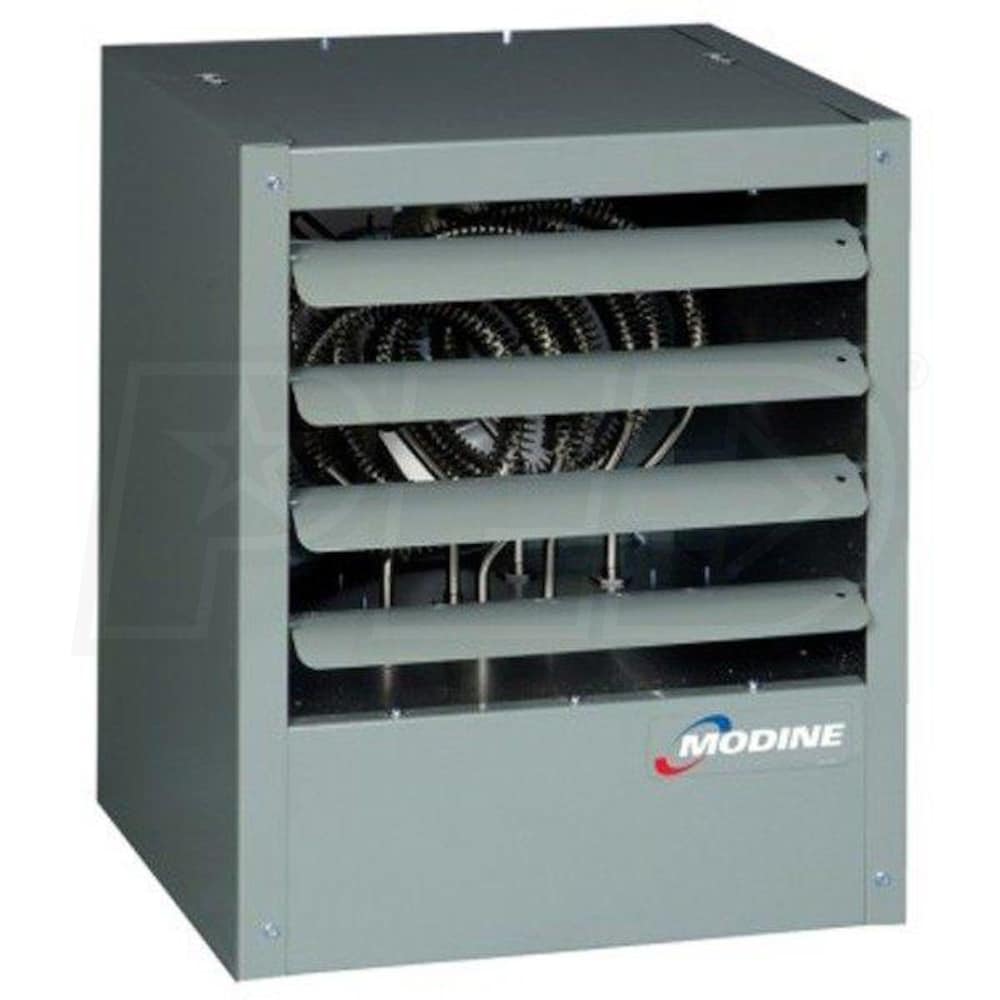

Modine HER - 10 kW - Electric Unit Heater - 240V/60Hz/1 Phase - Horizontal Orientation
Model:
HER100C1201
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Thermally Protected Motor
- The air propulsion motor included on the HER100 is entirely enclosed and thermally protected. Rubber vibration guards and the lightweight aluminum fan give the air propulsion system of the HER100 a notably long service life.
- Nickel Chromium Heating Element
- The heating element of the HER100 consists of nickel-chromium wire elements enclosed in powder-filled aluminum coated steel tubes. This arrangement makes the heating element highly resistant to thermal shock and vibration.
- Safety Fan Guard
- The fan guard of the HER100 is formed of heavy gauge steel rod stock, providing substantial support for the motor and protection from the exposed fan.
- Adjustable Air Deflector Blades
- Vertically adjustable air deflector blades equipped on the HER100 provide a simple to use, complete control system over vertical air flow direction.
- Control Compartment
- The control compartment included on the HER100 safely encloses terminal blocks, fuses, and the large transformer. This provides a central location for easy field wiring and protects sensitive, high current elements from accidental damage.
- Automatic Safety Reset Control
- In the event of overheating, the included reset control interrupts the power supply to the heating elements until the ambient temperature has fallen to acceptable operating levels.
- Baked-On Polyester Paint
- The HER100 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 208V/60Hz/1 Phase
- 208V/60Hz/3 Phase
- 240V/60Hz/3 Phase
- 480V/60Hz/3 Phase
Modine's HER100 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the HER100 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.
Product Note
This product has other power configurations available for order, including:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HER100C1201
Overview
Product Category
Unit Heater
General Information
Type
Standard
Product Line
HER
Product Category
Unit Heater
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
34100 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34100 BTU
Heating Capacity (kW)
10 kW
Air Throw
20 Feet
Maximum Air Flow
830 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
41.67 Amps
Dimensions
Product Height
20 7/8 Inches
Product Width
16 7/8 Inches
Product Depth
21 1/4 Inches
Product Weight
67 Pounds
Shipping Weight
74 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
