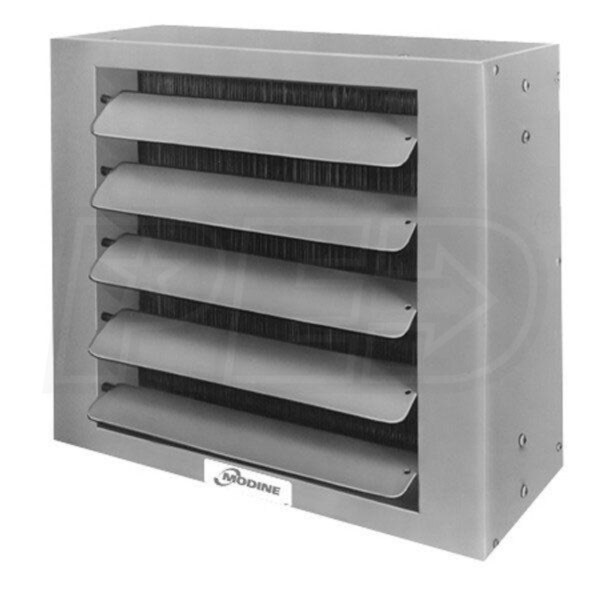

Modine HSB - 63,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger - Top/Bottom Connections
Model:
HSB63S01
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
6
Model: 32490
$47.00
Only 1 In-Stock
$332.00
$433.00
$603.00
Model: 14380
$240.00
Features
- Top and Bottom Piping Connections
- The HSB63 has top and bottom connections for supply and return piping. The vertical connections allow the unit heater to be faced any direction during installation.
- Two Piece Casing
- A two piece casing is used with the HSB63, allowing for incredibly easy access to the coil in case maintenance is required.
- Tapped Suspension Holes
- The HSB63 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
- Thermal Shock Resistant
- The serpentine copper tube coil is very resistant to thermal shock even at high steam temperatures. This prevents undesired warping of the coil itself, as well as decreasing necessary maintenance.
- Smart Coil Layout
- The layout of the coil does not include coil headers. This eliminates potential leaks and maintenance without increasing the overall size of the unit.
- Baked-On Polyester Paint
- The HSB63 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz
Modine's HSB63 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The HSB63 can emit 63,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is excellent for heating long corridors or blanketing walls with heat. The HSB63 has supply and return connections on the top and bottom of the unit, allowing it to be installed facing any direction.
Product Note
This product is available in multiple power configurations, including:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HSB63S01
Overview
Product Category
Unit Heater
UPC
046629482018
General Information
Product Line
Hot Dawg HSB
Product Category
Unit Heater
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
63000 BTU
Air Throw
29 Feet
Maximum Air Flow
1120 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
20 7/16 Inches
Product Width
21 1/2 Inches
Product Depth
16 1/2 Inches
Shipping Weight
48 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(8)
Modine HSB63S01 Reviews & Ratings
If you're looking to take advantage of your existing hydronic system to power your unit heater, the Modine HSB series is a reliable, popular choice. Heating large, open spaces is easy with the horizontal orientation and powerful fan. A safety guard is bolted to the rear casing to provide constant protection against accidental contact with the fan blade. The top and bottom connections on the HSB63S01 make it easy to install and allow it to be rotated 360 degrees for maximum coverage or targeted heating. And just for kicks, the copper heat exchanger makes this unit heater compatible with both steam and hot water, in case you decide down the line to change mediums.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Overall Good
By Kerri S
Madison, Wisconsin
Purchased 12/11/2019 |
Review Posted 01/28/2020
eComfort.com was great. Called them to verify what I was looking at and they were very helpful. when I got the Modine heater. The box was in good shape but the heating fins were all banged up and bent. When it was assembled at the Modine factory they were very rough with it. I straightened all the fins best as possible and installed. It works well and the heat exchange is good. Overall happy.
Kerri S Recommends This
Was this review helpful?
Rating Breakdown
5/5
3/5
4/5
4/5
Pros:
Durable, Easy To Use, Fast, Reliable
Cons:
Packaging
Modine Heater
By David K
Pittsburgh, Pennsylvania
Purchased 11/29/2018 |
Review Posted 12/21/2018
Easy to install, provides a good movement of air.
David K Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Disappointing
By Bart L.
Littleton, Colorado
Purchased 04/13/2018 |
Review Posted 05/16/2018
Replaced 5 heaters in a fire station truck bay. Same model and style as the old ones that were 20+ years old. Every one of them had the pipe connections askew. Not a one of them was straight. Looks pretty bad when all of the new piping is off plumb. Not impressed.
Bart L. Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
1/5
3/5
3/5
Cons:
Low Quality
Product that does the job.
By Noah T.
Northfield, Vermont
Purchased 11/16/2017 |
Review Posted 12/08/2017
Not bad. Gets the job done.
Noah T. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5
Use Vibration Dampening
By Daniel S.
Cotuit, Massachusetts
Purchased 10/22/2016 |
Review Posted 12/05/2016
I finally got this installed and working. I like the copper heat exchanger and the compact size. I mounted the first one to concrete walls to avoid vibration above. It took some adjusting to get the louvers to stop vibrating and making noise. It looks like a slick little heater and I expect it will last longer than me.
The only down side is the vibration from the fan. I'll have to cut the pipe and put in some vibration dampening. It carries the vibration through the pipes into the hangers and then to the floor. It's secured to concrete walls and that protects the floor above from direct vibration, but i can hear it when it runs.
The only down side is the vibration from the fan. I'll have to cut the pipe and put in some vibration dampening. It carries the vibration through the pipes into the hangers and then to the floor. It's secured to concrete walls and that protects the floor above from direct vibration, but i can hear it when it runs.
Daniel S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
3/5
warm heat
By Greg P.
Lebanon, New Hampshire
Purchased 10/14/2015 |
Review Posted 01/12/2016
Installed this modine in 700sq ft basement. It does the job.
Greg P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Modine HSB-47
By Greg P.
Lebanon, New Hampshire
Purchased 10/14/2015 |
Review Posted 12/09/2015
This is a well made product, made in the USA. Does what it is advertised to do.
Greg P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
