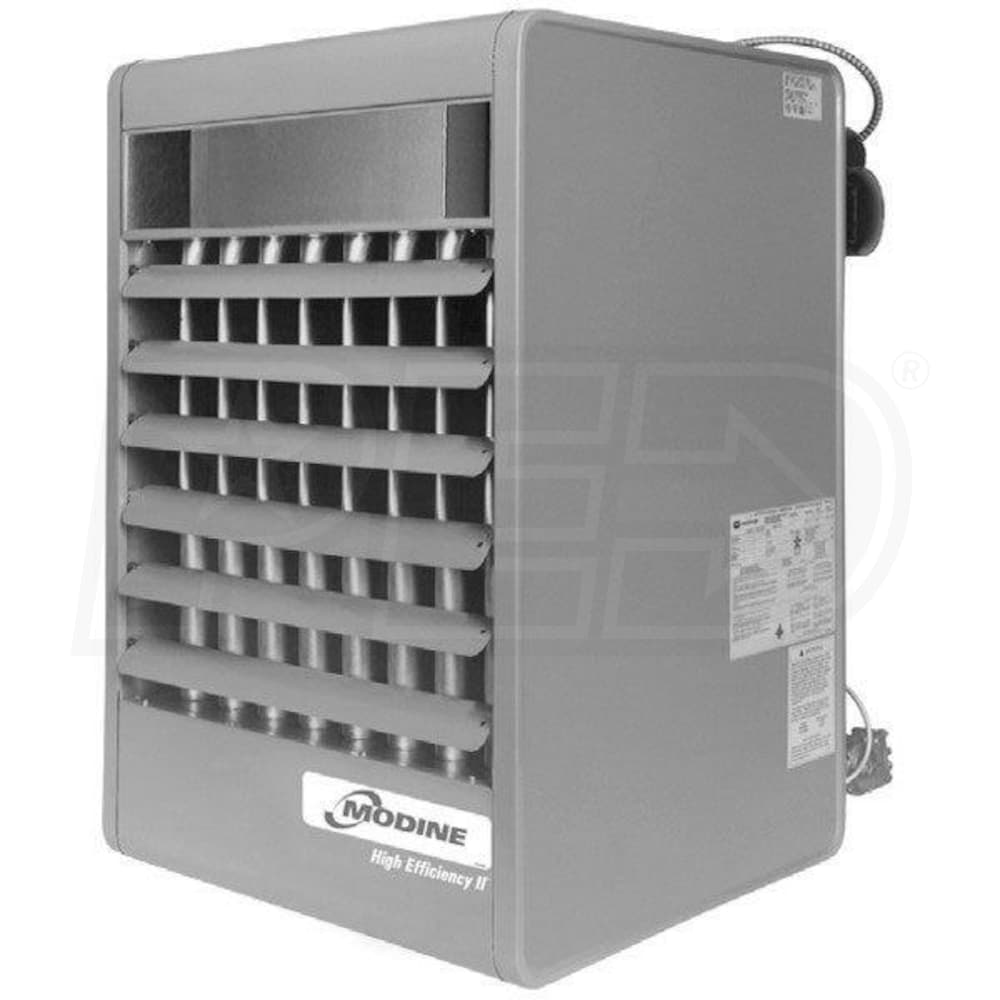

Modine PDP - 400,000 BTU - Unit Heater - NG - 83% Thermal Efficiency - Power Vented - Aluminized Steel Heat Exchanger - Propeller
Model:
PDP400AE0130
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Propeller Based Air Propulsion
- The PDP400 uses a propeller for air movement. This keeps the depth of the unit heater to a minimum, maximizing possible installation points, as well as passing along significant cost savings.
- Aluminized Steel Heat Exchanger
- The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
- Electric Knockouts
- Electric wiring knockouts and field wiring connections on the PDP400 keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.
- Ignition Controller
- The ignition controller is designed with safety in mind and features built in ignition attempt timers. This minimizes the chance of false starts and prevents unnecessary gas from being used during the ignition process.
- Permanently Lubricated Motor
- The motor on the PDP400 has a permanent, effective lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
- Power Venting System
- The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors and requires minimal installation labor. This keeps installation related costs as low as possible.
- Baked Polyester Paint
- The PDP400 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 230V/1Ph/60Hz
Modine brings its engineering experience to large capacity applications with the PDP unit heater line. The PDP400 is a large unit heater purpose-built for commercial and industrial applications. With 400,000 BTU/hour of heating power, the PDP400 can fulfill a wide variety of heating needs from workshops to warehouses. A power venting system simplifies venting while minimizing labor hours required for installation and maintenance.
Product Note
Alternate power configurations available for this item:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PDP400AE0130
Overview
Product Category
Unit Heater
UPC
046629437186
General Information
Product Line
PDP
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
320000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
400000 BTU
Thermal Efficiency
83 %
Air Throw
69 Feet
Maximum Air Flow
5440 CFM
Minimum Air Flow
5440 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Piping Diameter
3/4 Inch
Product Height
40 1/4 Inches
Product Width
40 Inches
Product Depth
38 3/16 Inches
Product Weight
418 Pounds
Shipping Weight
418 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
