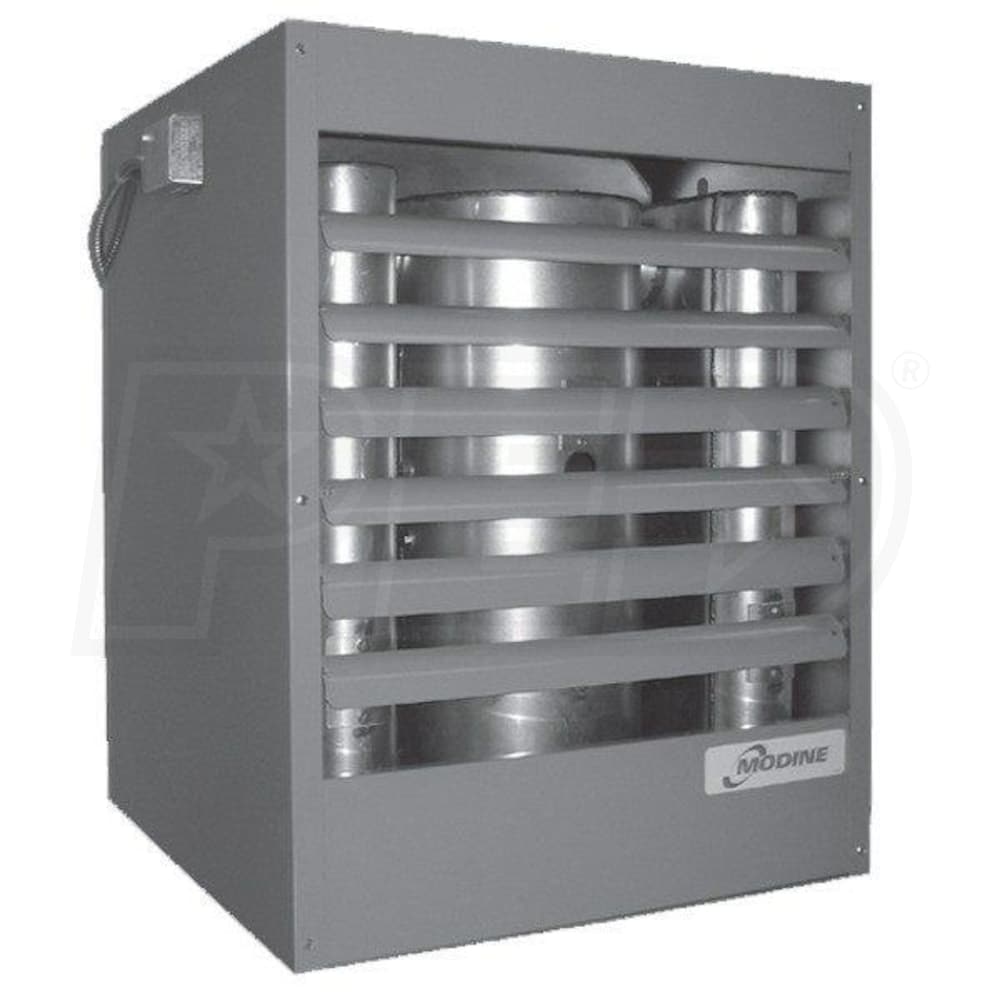

Modine POR - 100,000 BTU - Unit Heater - Oil - 80% Thermal Efficiency - Chimney Vented - Aluminized Steel Heat Exchanger - Propeller Driven
Model:
POR100B0101
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Advanced Flame Retention Burner
- The flame retention burner on the POR100 produces a highly stable flame, giving the burner a 20 to 30 percent increase in combustion efficiency over non-flame retention burners.
- Two Stage Fuel Delivery
- The fuel unit on the POR100 uses two distinct stages to ensure maximum fuel pressure during varying degrees of operation. This allows the unit heater a high degree of functionality even in high lift applications.
- Permanent Capacitor Split Motor
- The permanent capacitor split motor design used for the propeller's motor works together with high grade ball bearings to reduce motor energy consumption and maintenance needs.
- Interrupted-Duty Ignition
- The sensors included in the ignition disable the igniter once a flame has been detected. This feature extends the life of the ignition system, reduces component noise, and reduces gas usage during the ignition process to an absolute minimum.
- Beckett CleanCut Oil Pump
- The POR100 comes with a Beckett CleanCut pump. The cleaning operation of the burner cuts oil flow almost immediately after power to the motor is cut, resulting is less wasted oil and higher system life.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
The Modine POR100 is an advanced oil fired unit heater that is both efficient and reliable. Capable of emitting 100,000 BTU/hr of heat, the POR100 has enough power to warm even very large areas. An efficient PSC fan motor powers the propeller while a two stage fuel unit ensures fuel pressure is always kept high. The unit heater uses advanced microprocessor based burner technology to provide an all-in-one tool for data readings, efficient fuel consumption, and automatic reset control.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
POR100B0101
Overview
Product Category
Unit Heater
General Information
Product Line
POR
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
100000 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
119000 BTU
Thermal Efficiency
80 %
Air Throw
39 Feet
Maximum Air Flow
1890 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
8 Inches
Product Height
35 1/4 Inches
Product Width
27 1/2 Inches
Product Depth
38 1/8 Inches
Product Weight
324 Pounds
Shipping Weight
324 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
