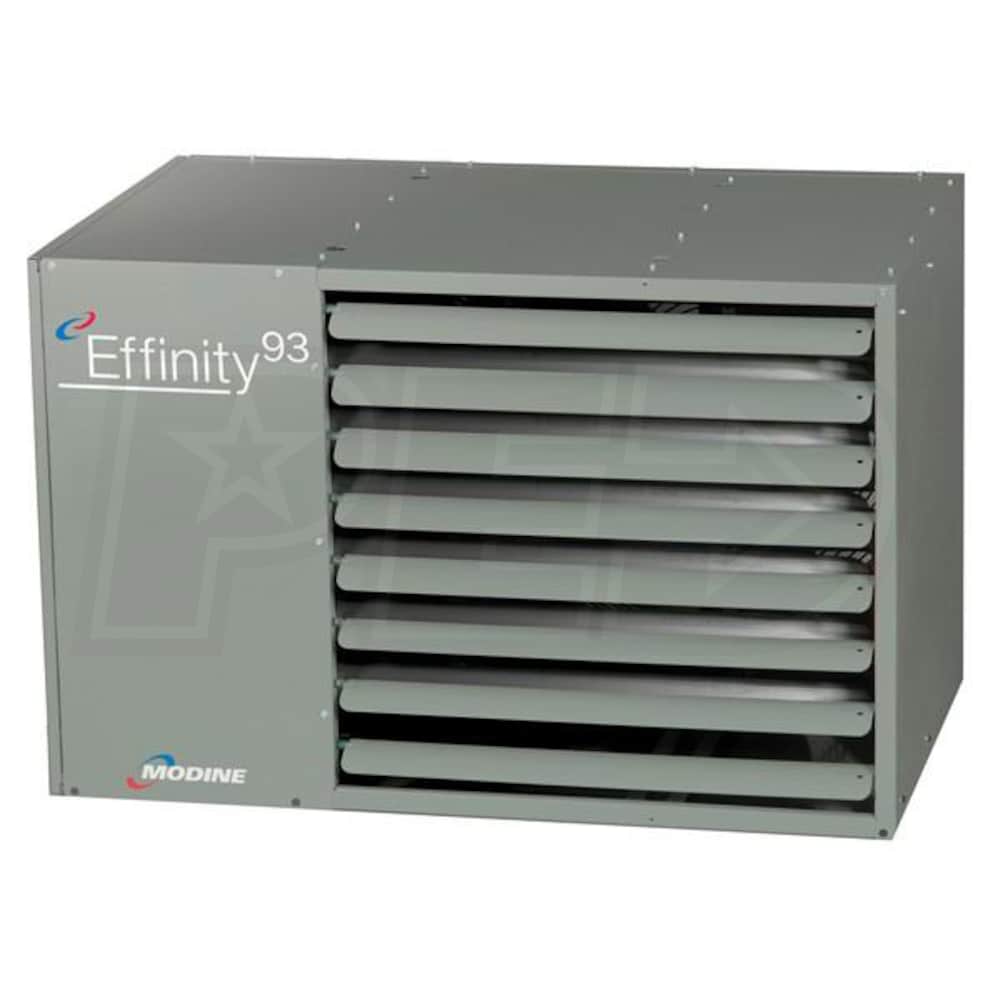

Modine Effinity93 - 55,000 BTU - High Efficiency Unit Heater - LP - 93% Thermal Efficiency - Separated Combustion

Model:

PTC55AS0121

Write A Review
$1,750.00
Was $1,945.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
synchrony card logo
$292 / Month
Suggested monthly payments with 6 month financing.
Modine Effinity93 - 55,000 BTU - High Efficiency Unit Heater - LP - 93% Thermal Efficiency - Separated Combustion
Modine Effinity93 - 55,000 BTU - High Efficiency Unit Heater - LP - 93% Thermal Efficiency - Separated Combustion
Model: PTC55AS0121
$1,750.00
Was $1,945.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The PTC55 is a fully condensing unit heater, a first for the unit heater market. Modine has developed a number of new technologiesto make the Effinity93 line a revolutionary step in the unit heater market, including condensing technology that allows the PTC55 to have an efficiency rating of 93% Thermal Efficiency. The PTC55 is a well engineered, complete package capable of heating large environments while simultaneously keeping heating bills as low as possible and requiring minimal maintenance.
  • Condensing Technology
  • Modine has adapted the condensing technology found in boilers to the Effinity93 line. The result is a clean, powerful unit heater that can reach efficiencies of up to 93 percent. This keeps heating bills as low as possible.
  • Conservicore Anti-Corrosion Technology
  • Modine's unique Conservicore technology prevents corrosion to the heat exchanger, ensuring that your unit heater investment will last as long as possible.
  • Electric Knockouts
  • Electric wiring knockouts and field wiring connections on the PTC55 keep installation costs low and save time during both installation and maintenance for your contractor by simplifing all required electrical work.
  • Permanently Lubricated Motor
  • The motor on the PTC55 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
  • Power Venting System
  • The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.
  • Aluminized Steel Heat Exchanger
  • The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Finger Proof Fan Guard
  • This model features a Finger Proof Fan Guard standard.
  • Product Note
    These alternate power configurations are available for this item:

    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    These alternate power configurations require unique step-down transformers for proper operation. For more information, call our sales department at (866) 554-HEAT (4328).

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PTC55AS0121
specs product image PID-48228
Overview
Product Category
Unit Heater
UPC
046629720691
General Information
Product Line
Effinity93
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
51150 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
55000 BTU
Thermal Efficiency
93 %
Maximum Air Flow
1097 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Piping Diameter
1/2 Inch
Product Height
18 1/8 Inches
Product Width
29 19/24 Inches
Product Depth
28 3/16 Inches
Product Weight
93 Pounds
Shipping Weight
103 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
