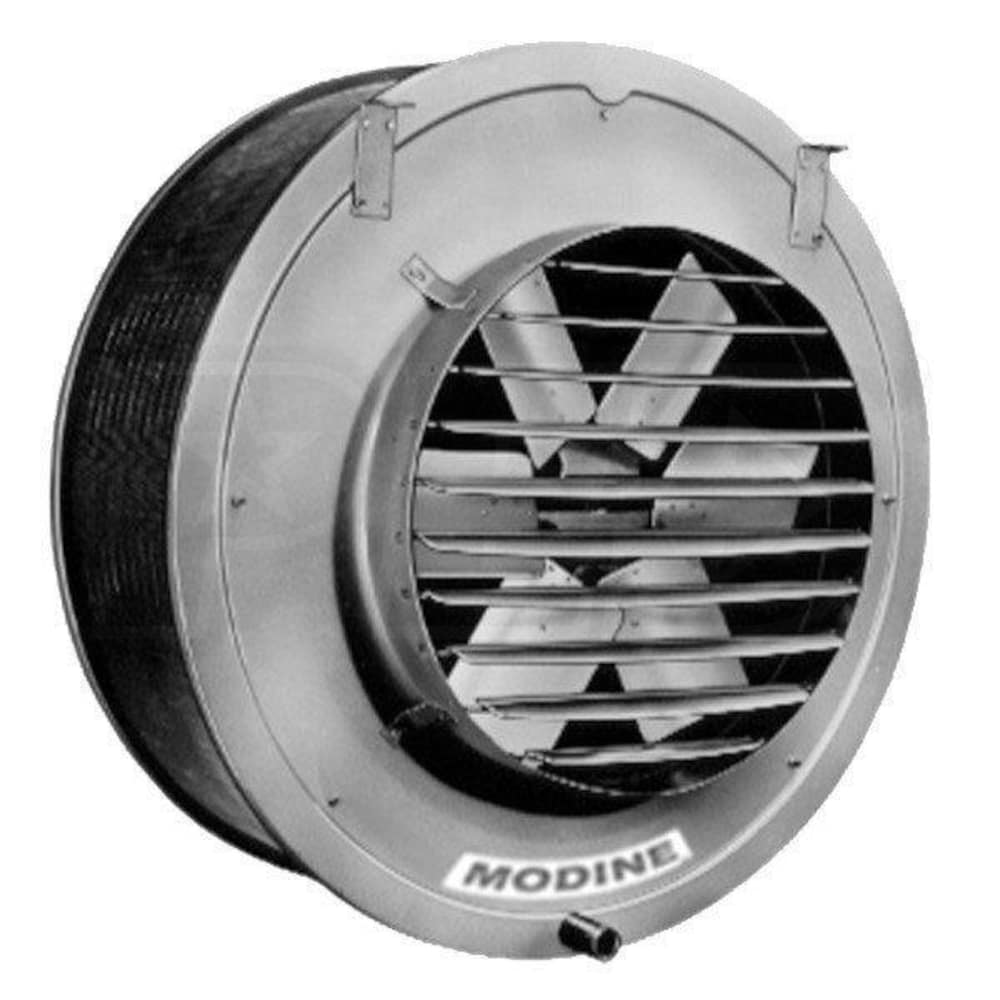

Modine PTN - 333,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Cupro Nickel Heat Exchanger

Model:

PTN333S01

Write A Review
$5,238.00
Was $5,514.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks
synchrony card logo
$66 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Modine PTN - 333,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Cupro Nickel Heat Exchanger
Modine PTN - 333,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Cupro Nickel Heat Exchanger
Model: PTN333S01
$5,238.00
Was $5,514.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Modine's PTN333 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The PTN333 can emit 333,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is well suited for most applications, including large warehouse use or buildings with long corridors. Combined with a simple wiring setup and easy to service motor, the PTN333 is an excellent piece of engineering that will serve any building well for years to come.
  • Easy to Manage Wiring
  • The PTN333 has easy to manage wiring that all terminates inside of a junction box. This reduces wiring time for your contractor, resulting in cost savings for installation and maintenance.
  • Tapped Suspension Holes
  • The PTN333 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Vertical Fin Design
  • Vertical fin design on the PTN333 provides minimal opportunity for dust to collect on the fins. This decreases both required maintenance and cleaning time.
  • Baked-On Polyester Paint
  • The PTN333 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Cupro-Nickel Heat Exchanger
  • The PTN333 uses a cupro-nickel alloy for its heat exchanger instead of standard copper, allowing it to withstand much higher temperatures and pressures.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:

    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    For ordering information, call our sales department at (866) 554-HEAT (4328).

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PTN333S01
specs product image PID-48572
Overview
Product Category
Unit Heater
UPC
046629034422
General Information
Product Line
PTN
Product Category
Unit Heater
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Cupro-Nickel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
333000 BTU
Air Throw
110 Feet
Maximum Air Flow
5980 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
2 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
43 1/4 Inches
Product Width
43 1/4 Inches
Product Depth
23 7/8 Inches
Product Weight
176 Pounds
Shipping Weight
176 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
