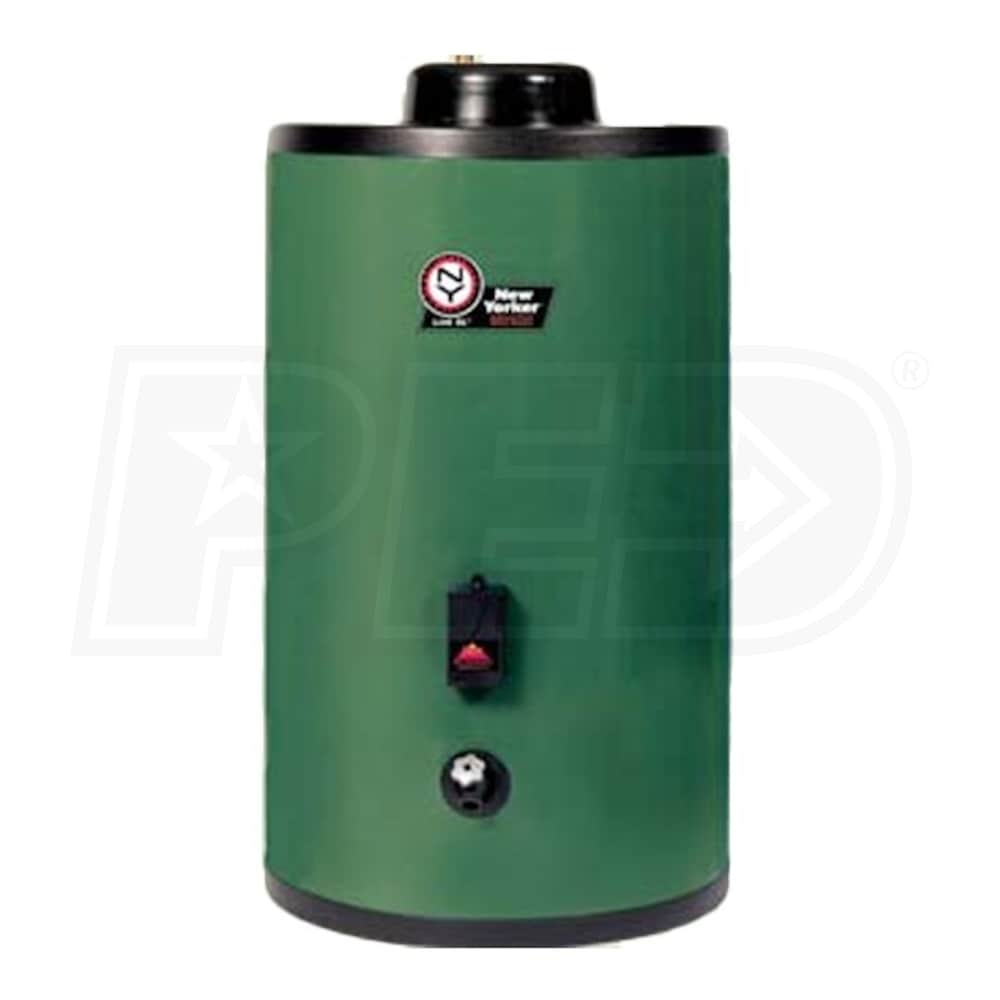

New Yorker NY50SL - 50 Gallon - Indirect Water Heater
New Yorker NY50SL - 50 Gallon - Indirect Water Heater
Model: NY50SL
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    New Yorker's Hydrastone indirect fired water heaters are a great combination of fantastic features and steadfast reliability. The unique hydrastone lining used by the tank not only provides fantastic corrosion resistance but also eliminates the need for a sacrificial anode rod. Cold water is diffused throughout the tank efficiently due to the diffusor pipe, and two inches of polyurethane insulation keep heat loss to a minimum.
  • Hydrastone Tank Lining
  • New Yorker's Hydrastone tank lining provides unprecedented protection against tank corrosion, significantly extending the life of the water heater.
  • No Anode Rod Required
  • The chemical composition of the Hydrastone lining eliminates the need for a sacrificial anode rod.
  • Cold Water Diffusor
  • The cold water input into the water heater is spread by a special diffusor pipe, significantly reducing heating time needed.
  • Thick Insulation Prevents Heat Loss
  • The entire tank is surrounded by two inches of polyurethane insulation, significantly inhibiting heat loss.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

NY50SL
specs product image PID-38109
General Information
Type
Indirect Water Heater
Product Line
NY Link
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
Union
Material
Hydrastone-Lined
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
220 Gallons
Continuous Recovery Rate
171 Gallons
Dimensions
Storage Volume
50 Gallons
Primary Vent Pipe Diameter
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Diameter
26 Inches
Product Height
40 3/4 Inches
Product Weight
238 Pounds
Certifications
Country of Origin
United States
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
