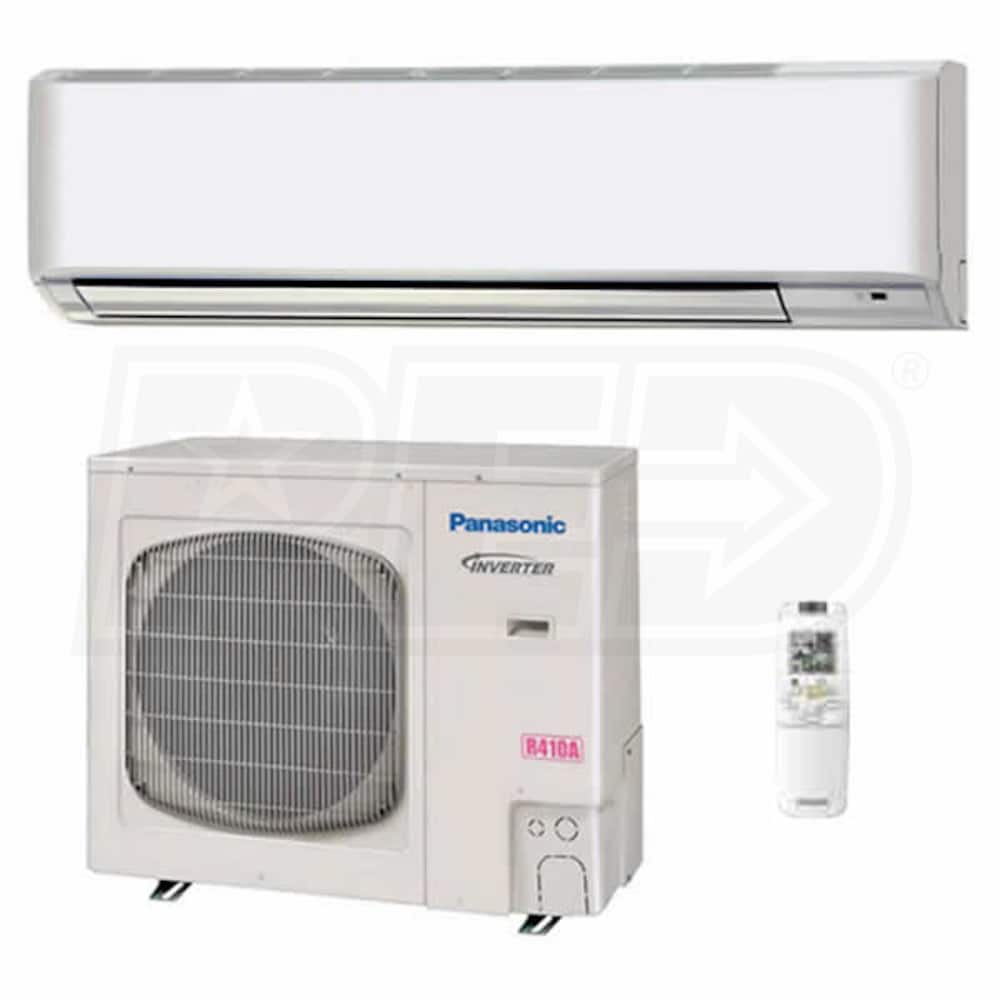

Panasonic - 26k BTU Cooling + Heating - Commercial Wall Mounted Air Conditioning System - 16.7 SEER
Model:
26PEK2U6
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Automatic Heating and Cooling Changeover
- After you set the temperature and functions you desire, just relax. If the room temperature gets higher, the unit will add some air and if the room gets cold, it will add some heat..
- Self-Diagnosing
- The 26PEK2U6 is equipped with a self-diagnosing function that makes it easier to troubleshoot malfunctions and ultimately save on service labor costs.
- Power Failure Automatic Restart
- Your preset programmed operation can be reactivated once power is restored after a power failure.
- Air Sweep Control
- This function controls the positions and movement of the louvers to direct the air in a sweeping motion, providing comfort in all parts of the room.
- Hot Start
- The heat pump will warm up before blowing air to prevent any cold drafts.
- Dry Mode
- Operation is precisely controlled according to room temperature so that the air is properly dehumidified.
- (1) Panasonic - 26k BTU - CAC Outdoor Condenser - Single Zone Only (U-26PE1U6)

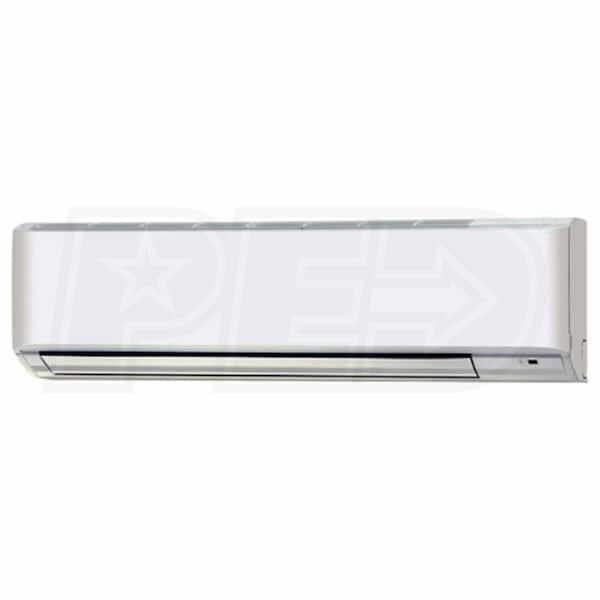

- (1) Panasonic 26k BTU Wall Mounted Unit - For Single-Zone (S-26PK2U6)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The 26PEK2U6 Mini Split Unit is a perfect example of Panasonic's engineering aptitude. Provide comforting air to all areas of the room with the air sweep feature. The louver moves up and down in the air outlet providing continuous comforting air while the outdoor condenser produces a soft whisper sound.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Panasonic - 26k BTU - CAC Outdoor Condenser - Single Zone Only (U-26PE1U6)
- (1) Panasonic 26k BTU Wall Mounted Unit - For Single-Zone (S-26PK2U6)
26PEK2U6
General Information
Type
Wall Mounted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
27600 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.7
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.1
Cooling Power Input
2820 Watts
Heating Power Input
2490 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Dimensions
Product Weight
160 Pounds
Shipping Weight
170 Pounds
U-26PE1U6
General Information
Type
Outdoor Condenser
Product Line
PEF-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
26000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 35/48 Inches
Product Width
37 Inches
Product Depth
13 3/8 Inches
Product Weight
128 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
S-26PK2U6
General Information
Type
Wall Mounted
Product Line
PK-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
5.7 Pints/Hour
Maximum Air Flow
650 CFM
Minimum Sound Level
38 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
11 13/16 Inches
Product Width
41 15/16 Inches
Product Depth
9 1/16 Inches
Product Weight
32 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
