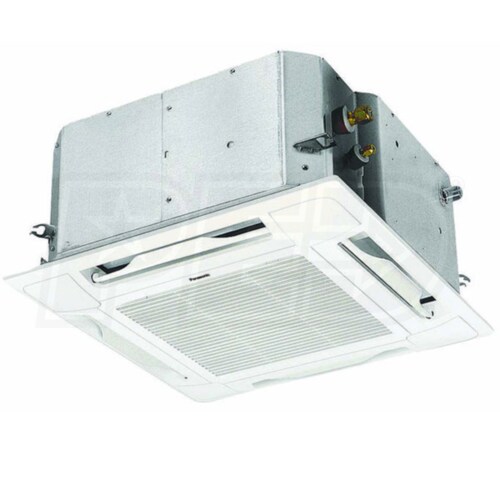

Panasonic - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately
Model:
CS-E12RB4UW-NG
+
Share This Product
Features
- CS-E12RB4UW Mini Split Indoor Unit
- Wireless Remote
- Filter
- Mounting Hardware
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The CS-E12RB4UW mini split ceiling cassette is a perfect example of Panasonic's engineering aptitude. This 12,000 BTU unit is the perfect addition to any home looking to add a little more comfort. Save space with the CS-E12RB4UW by installing your mini split in to the ceiling as opposed to cluttering up your wall.
Product Features
4-Way Airflow
While being placed in the center of the room provides the best results, the CS-E12RB4UW has four louvers that allow you direct air which ever direction you desire.
Integrated Drain Pump
Panasonic has integrated a built-in drain pump that raises the condensate up 20 inches from pump discharge.
Quiet Operation
With the all new turbo fan and increased air path, the CS-E12RB4UW has reached one of the industry's lowest levels of noise.
Power Failure Automatic Restart
Your preset programmed operation can be reactivated once power is restored after a power failure.
High Power Mode
The unit will operate at maximum output for 30 minutes regardless of set temperature.
Product Includes
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
CS-E12RB4UW-NG
General Information
Type
Ceiling Cassette
Product Line
RAC Multi E
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
CZ-BT20U
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
4 Pints/Hour
Maximum Air Flow
410 CFM
Minimum Air Flow
240 CFM
Minimum Sound Level
25 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 1/4 Inches
Product Width
22 31/48 Inches
Product Depth
22 23/24 Inches
Product Weight
40 Pounds
Shipping Weight
50 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
